8291SRG75.10A500

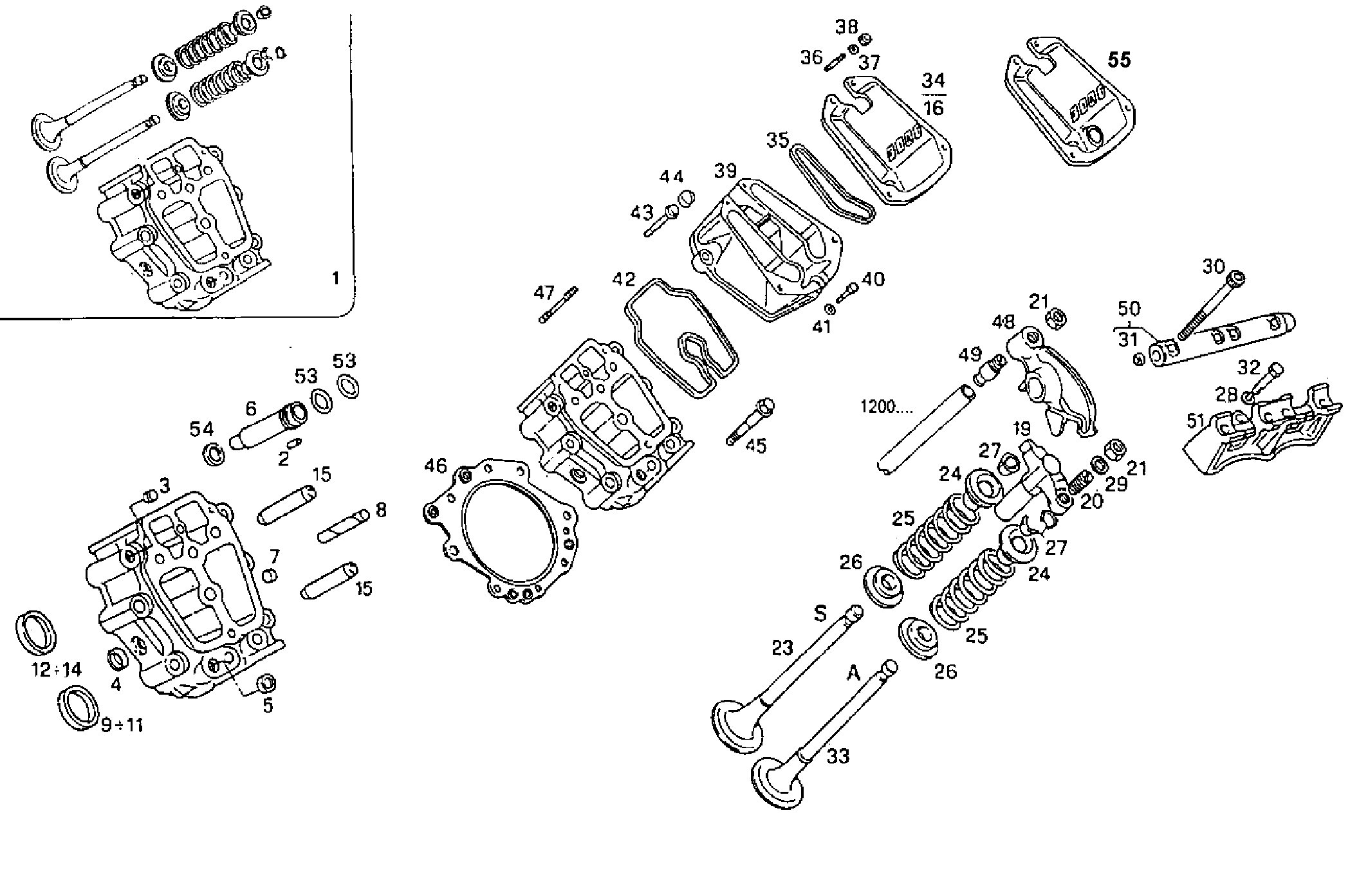

0600.136 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 8027266 CYLINDER HEAD ASSY [from 06-98]
2 17235210 PIN
3 14326101 THREADED PLUG M8X1,25
4 14282370 LOCK PLUG Ø25 MM
5 14282170 LOCK PLUG Ø20 MM
6 8019612 SPARK CASING
7 14281970 LOCK PLUG Ø12 MM
8 4680389 GUIDE ROD
9 8026214 VALVE SEAT STD. INTAKE
10 8026215 VALVE SEAT +0.20 INTAKE
11 8026217 VALVE SEAT +0.05 INTAKE
12 8027262 VALVE SEAT STD. EXHAUST
13 8027263 VALVE SEAT +0.20 EXHAUST
14 8027265 VALVE SEAT +0.05 EXHAUST
15 8027278 VALVE GUIDE
16 8019592 COVER [UP TO 04-99]
19 4717389 SUPPORT ASSY
20 98470657 ROCKER ARM SCREW
21 504059553 ADJUSTING NUT
23 8027212 EXHAUST VALVE
24 4675983 SPRING CAP TOP
25 4752607 ENGINE VALV.SPRING
26 98458427 SPRING CAP BOTTOM
27 14196370 VALVE CONE Ø9,82 MM
28 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
29 17081776 CIRCLIP
30 14308430 CYLIND-HEAD SCREW M10X80 MM
31 16990170 PLUG Ø8 MM
32 16605734 HEXAGON BOLT M8X30 MM
33 99485232 INLET VALVE
35 98481106 HEAD COVER GASKET
36 16746724 STUD M8X25 MM
37 13550301 WASHER Ø8,15 MM
38 17787321 NUT M8X1,25
39 98481108 CYL. HEAD COVER
40 16606224 HEXAGON BOLT M8X55 MM
41 12647101 WASHER Ø8X20 MM
42 98481105 HEAD COVER GASKET
43 4696012 HEXAGON BOLT
44 4696013 CAP
45 4818508 CYL.HEAD STUD
46 4862513 CYL.HEAD GASKET
47 4825411 STUD M10X1,25X15X72
48 4727425 ROCKER ARM
49 98470655 ROCKER ARM SCREW
50 8026796 SHAFT
51 4710783 ROCKER BRACKET
53 17279281 O-RING
54 8012271 GASKET
55 8028081 COVER
