8291SRG85.10

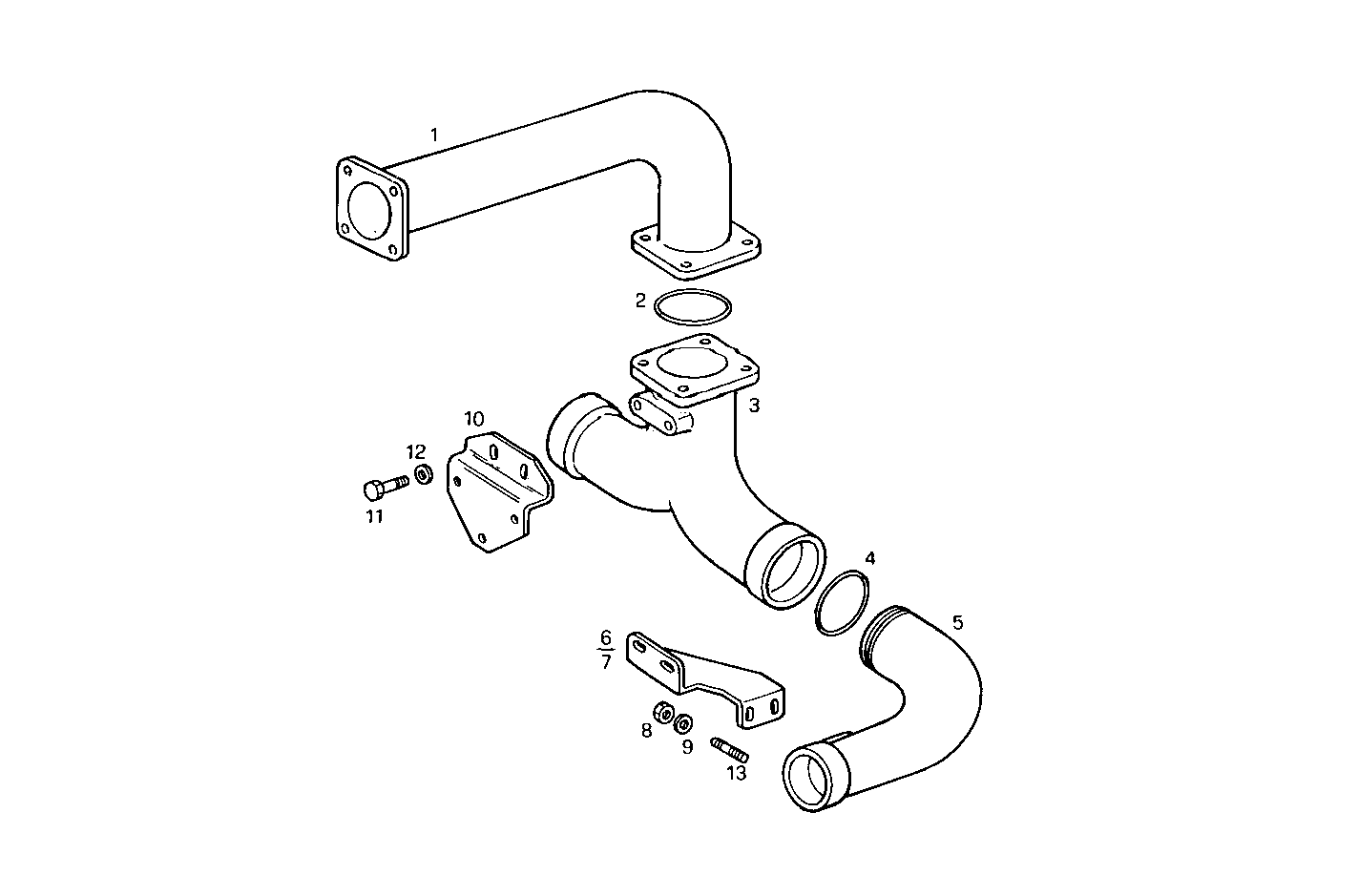

2220.000 AIR LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8022951 | AIR MANIFOLD |
| 2 | 17292181 | O-RING Ø123,42X3,53 MM |
| 3 | 8022817 | AIR MANIFOLD |
| 4 | 17291281 | O-RING Ø94,84 MM SP=3,53 MM |
| 5 | 8022672 | AIR MANIFOLD |
| 6 | 8022209 | RETAINER LEFT |
| 7 | 8022211 | RETAINER RIGHT |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 17089674 | SPRING WASHER Ø8X16 MM SP=2,2 MM |
| 10 | 8022212 | RETAINER |
| 11 | 16607624 | SCREW M10X25 |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 16729224 | STUD M8X16 MM |
