8291SRG85.10

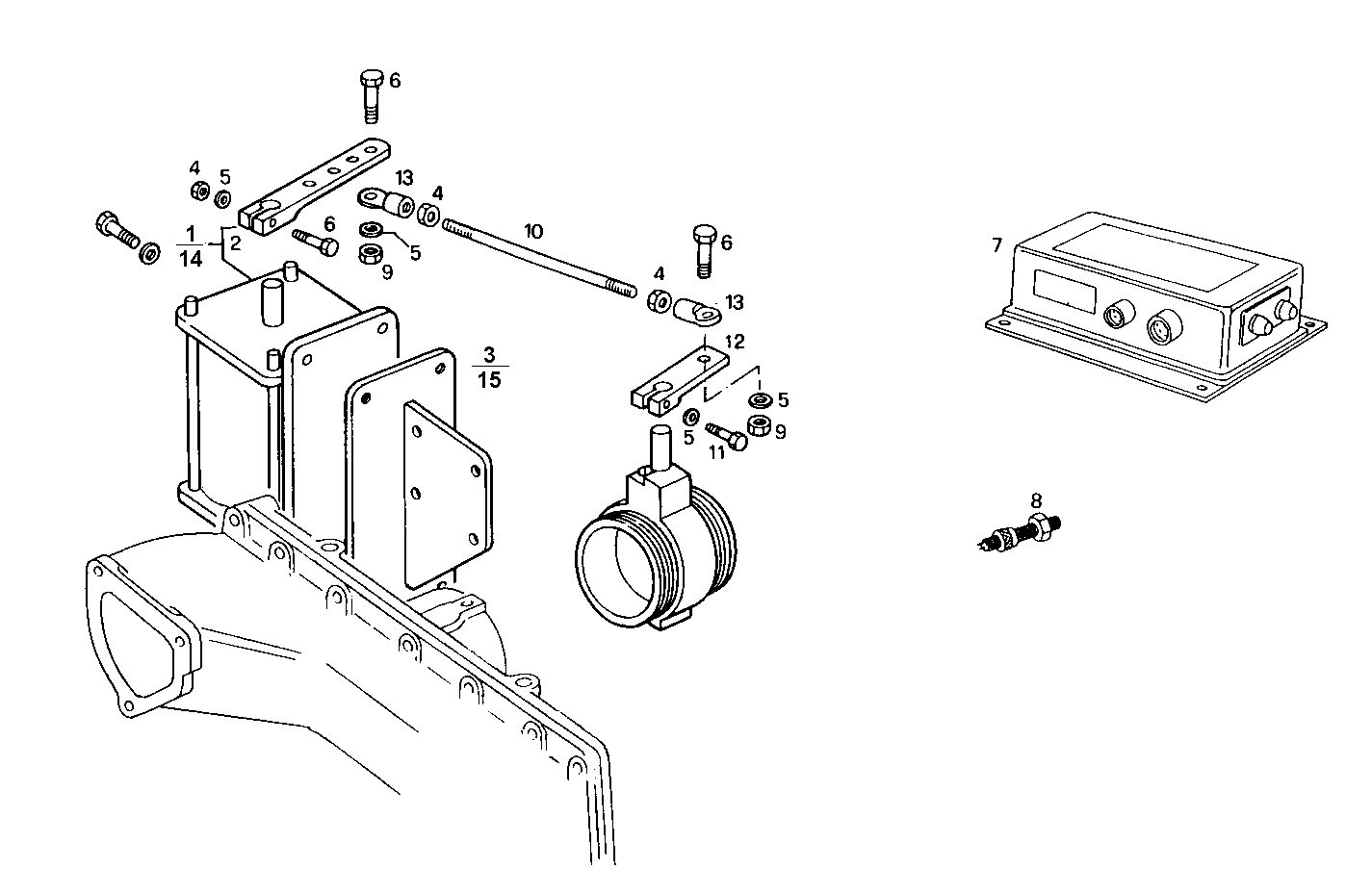

2600.005 ELECTRONIC SPEED GOVERNOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8018556 | GAS ENGINE ACTUATOR ASSY [UP TO 19-11-02] |
| 2 | 8024289 | LEVER |
| 3 | 8023539 | RETAINER [UP TO 19-11-02] |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 16603824 | SCREW M6X25 |
| 7 | 8030357 | IGNITION CONTROL UNIT |
| 8 | 8018673 | PICK-UP |
| 9 | 17156921 | LOCKING NUT M6 |
| 10 | 4928016 | TIE ROD |
| 11 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 12 | 8015454 | LEVER |
| 13 | 4934541 | BRACE/STRUT |
| 14 | 8035212 | GAS ENGINE ACTUATOR ASSY [FROM 19-11-02] |
| 15 | 8035198 | RETAINER [FROM 19-11-02] |
