8291SRi15.00

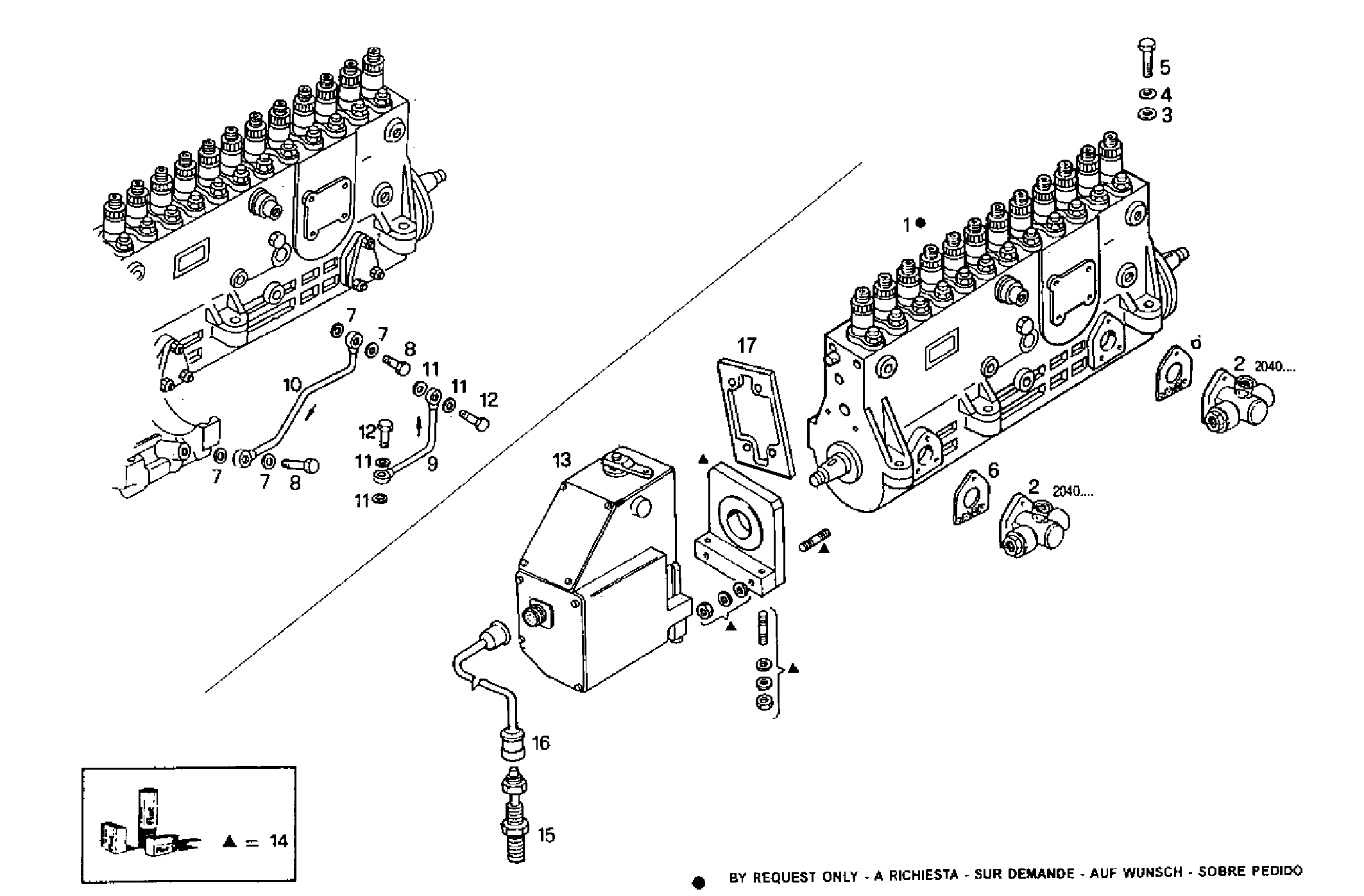

1400.303 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8018326 | INLINE INJECT.PUMP |
| 2 | 8010373 | FUEL PUMP ASSY |
| 3 | 756671 | WASHER |
| 4 | 17090274 | WASHER Ø10X20 MM |
| 5 | 15971331 | SCREW |
| 6 | 8111232 | GASKET |
| 7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 8 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 9 | 8013905 | FUEL LINE |
| 10 | 8030370 | OIL LINE |
| 11 | 4858606 | GASKET Ø10X14X1 MM |
| 12 | 4864079 | SCREW CONNECTOR M10X1 |
| 13 | 8029133 | ENGINE ACTUATOR |
| 14 | 8018343 | SPEED-GOVERNOR-KIT |
| 15 | 8018673 | PICK-UP |
| 16 | 8019283 | ENGINE HARNESS |
| 17 | 8093808 | GASKET |
