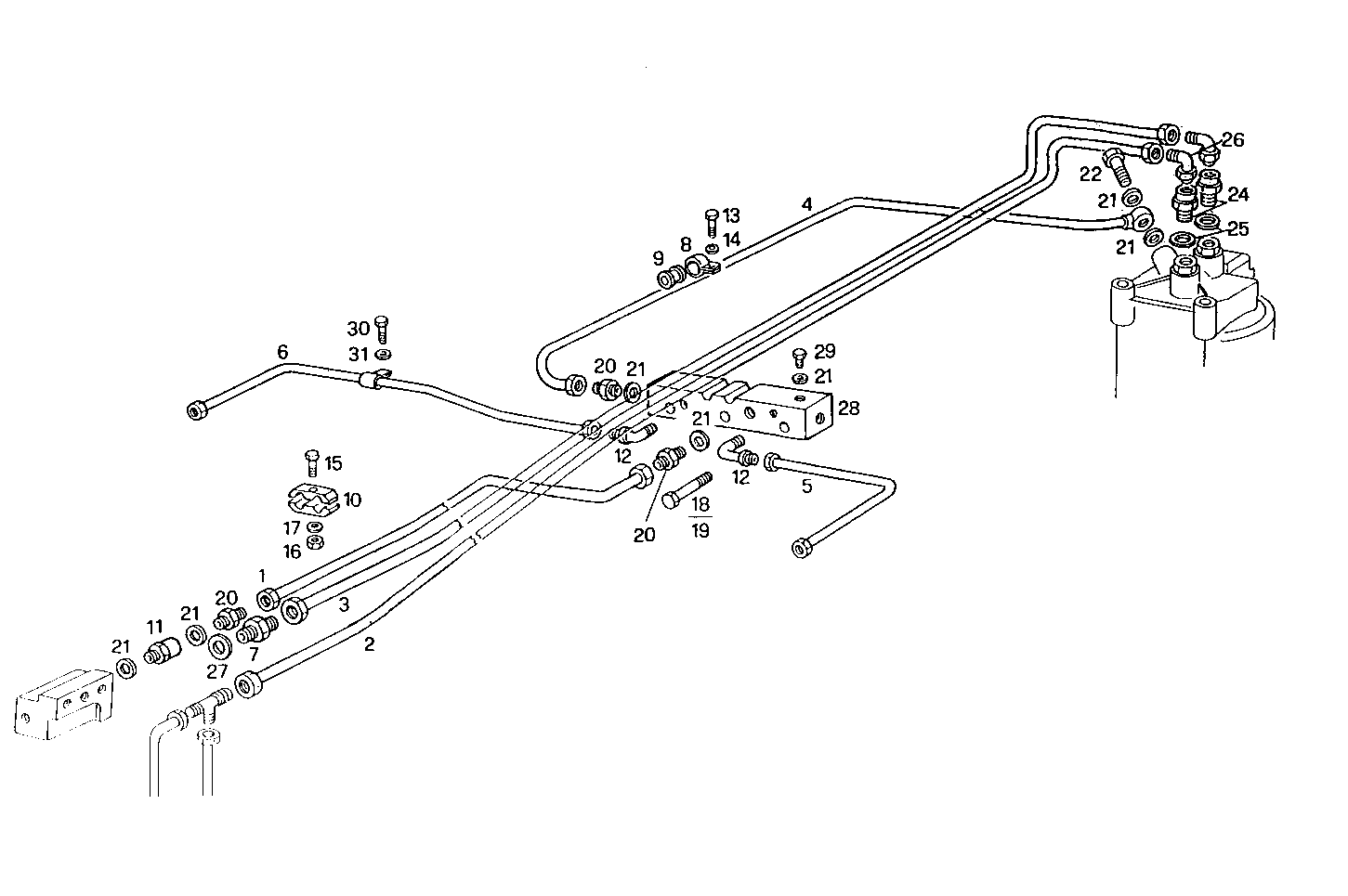

| Item |
Part number |
Description |
|
1 |
8021412 |
FUEL LINE |
|
2 |
8018185 |
FUEL LINE |
|
3 |
8018186 |
FUEL LINE |
|
4 |
8018190 |
FUEL LINE |
|
5 |
8022261 |
FUEL LINE |
|
6 |
8022262 |
FUEL LINE |
|
7 |
8012712 |
PIPE SOCKET M22X1,5/M22X1,5 |
|
8 |
4755963 |
FASTENING BRACKET |
|
9 |
4755964 |
RUBBER PAD |
|
10 |
8010505 |
CLAMP Ø16 MM |
|
11 |
8102465 |
VALVE |
|
12 |
8007029 |
PIPE SOCKET |
|
13 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
14 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
15 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
16 |
17037921 |
HEXAGON NUT M8X1,25 |
|
17 |
17094904 |
WASHER Ø8X16X1,6 MM |
|
18 |
16691224 |
CYLIND-HEAD SCREW M8X55 MM |
|
19 |
16691324 |
CYLIND-HEAD SCREW M8X60 MM |
|
20 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
|
21 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
22 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
23 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
24 |
8010452 |
PIPE SOCKET |
|
25 |
10303460 |
SEAL GASKET Ø30x36x1,5 MM |
|
26 |
16512111 |
PIPE SOCKET |
|
27 |
16508460 |
WASHER 22x27x1,5 |
|
28 |
8018178 |
DISTRIBUTOR |
|
29 |
16992311 |
LOCK PLUG M14X1,5 |
|
30 |
16603824 |
SCREW M6X25 |
|
31 |
17088974 |
SPRING WASHER Ø6X18X1,4 MM |
