8291SRi15.00

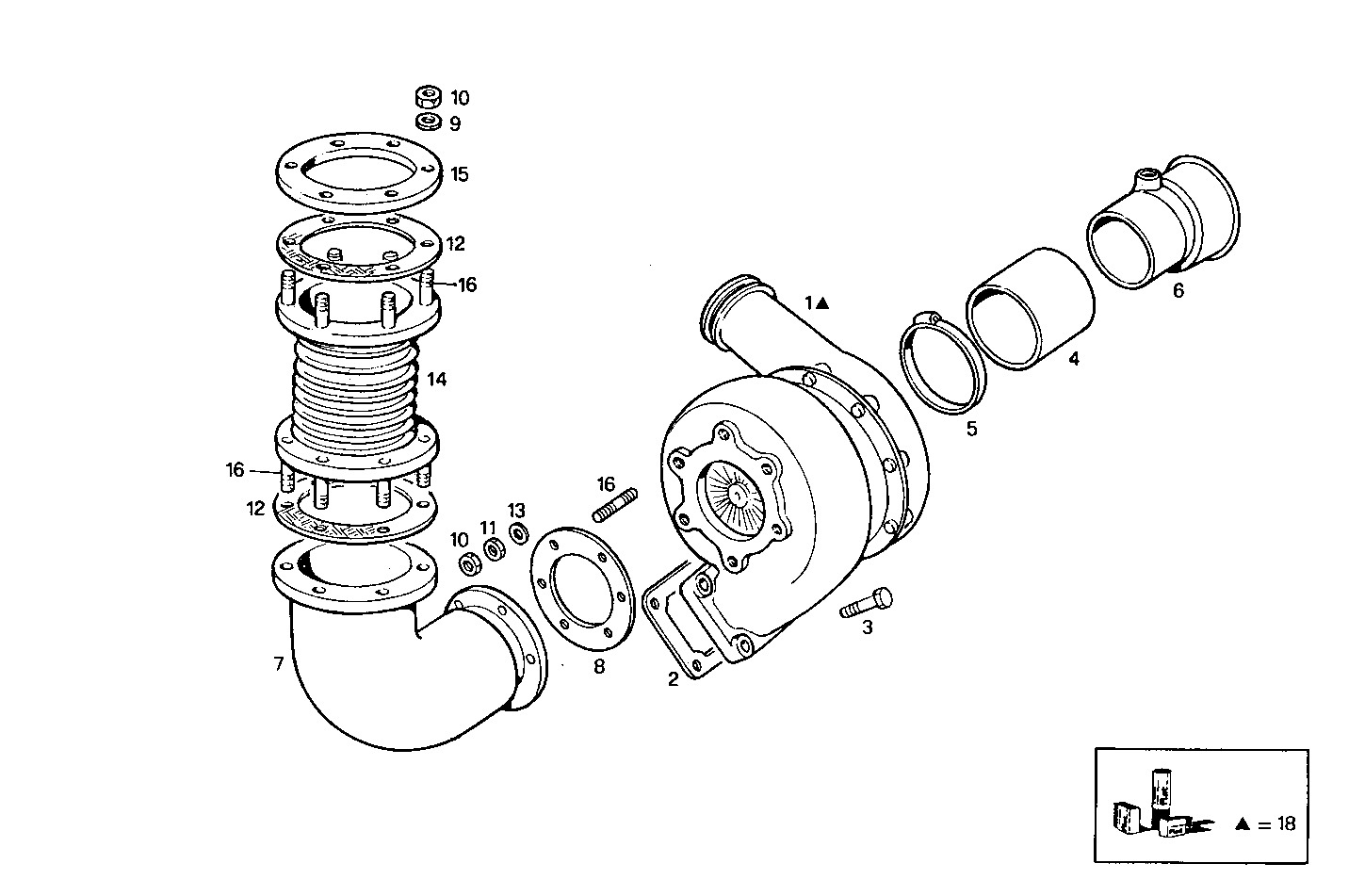

2400.053 TURBOCHARGER
| Item |
Part number |
Description |
|
1 |
8017221 |
TURBOCHARGER ASSY HOLSET |
|
2 |
4512366 |
GASKET |
|
3 |
98480687 |
SCREW M10X1,25X33 MM |
|
4 |
8017055 |
RUBBER SLEEVE |
|
5 |
17765793 |
CLIP �130/150 MM |
|
6 |
8018652 |
AIR MANIFOLD |
|
7 |
8018138 |
EXHAUST ELBOW |
|
8 |
42075987 |
GASKET |
|
9 |
17090174 |
SPRING WASHER �10X20 MM |
|
10 |
17038121 |
HEXAGON NUT M10 |
|
11 |
16979631 |
HEXAGON NUT M10 |
|
12 |
8010072 |
GASKET |
|
13 |
16665614 |
WASHER �10,5 MM |
|
14 |
8016095 |
EXHAUST BELLOWS |
|
15 |
8010113 |
FLANGE |
|
16 |
16731234 |
STUD M10X1,5X25 |
|
18 |
8092706 |
KIT-TURBOCHARGER |
