8291SRi15.00

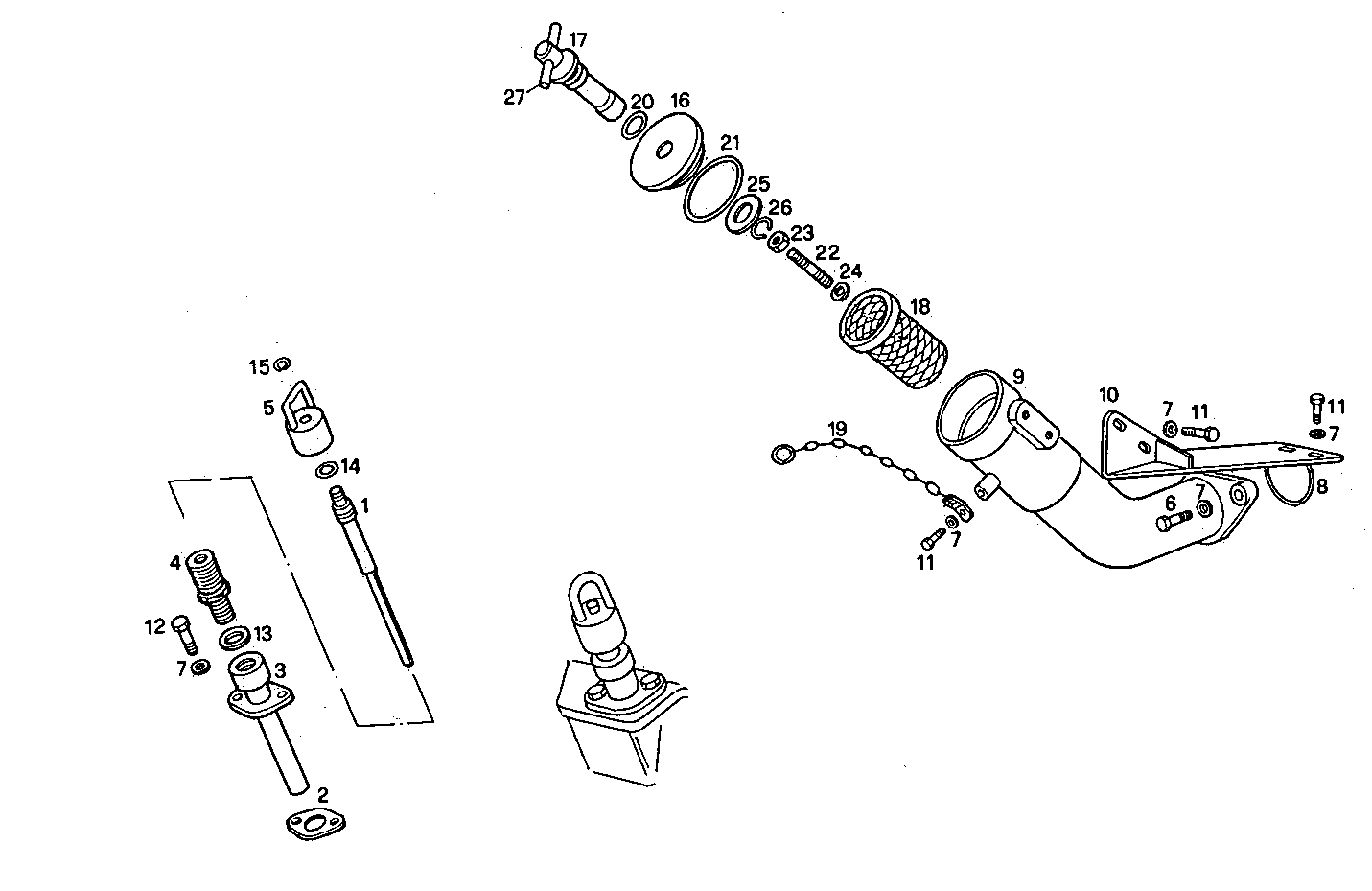

2710.055 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8016565 | OIL DIPSTICK |
| 2 | 4863361 | GASKET |
| 3 | 8016563 | FLANGE |
| 4 | 8016564 | THREADED UNION |
| 5 | 4882777 | PLUG |
| 6 | 16605924 | SCREW M8X40 MM |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 17289981 | O-RING Ø53,57X3,53 MM |
| 9 | 8017071 | OIL FILLER PIPE |
| 10 | 8018644 | RETAINER |
| 11 | 16605424 | SCREW M8X16 MM (8.8) |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
| 13 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 14 | 4854896 | O-RING |
| 15 | 16865076 | CIRCLIP |
| 16 | 4882506 | COVER |
| 17 | 4882529 | ROD |
| 18 | 4882530 | STRAINER |
| 19 | 4882591 | CHAIN |
| 20 | 4854897 | O-RING |
| 21 | 17296081 | O-RING Ø56,52X5,33 MM |
| 22 | 16747024 | STUD |
| 23 | 17037921 | HEXAGON NUT M8X1,25 |
| 24 | 17094904 | WASHER Ø8X16X1,6 MM |
| 25 | 17095704 | WASHER Ø16X30 MM |
| 26 | 16865776 | CIRCLIP Ø15,7 MM |
| 27 | 17239320 | PIN |
