8291SRi15.00

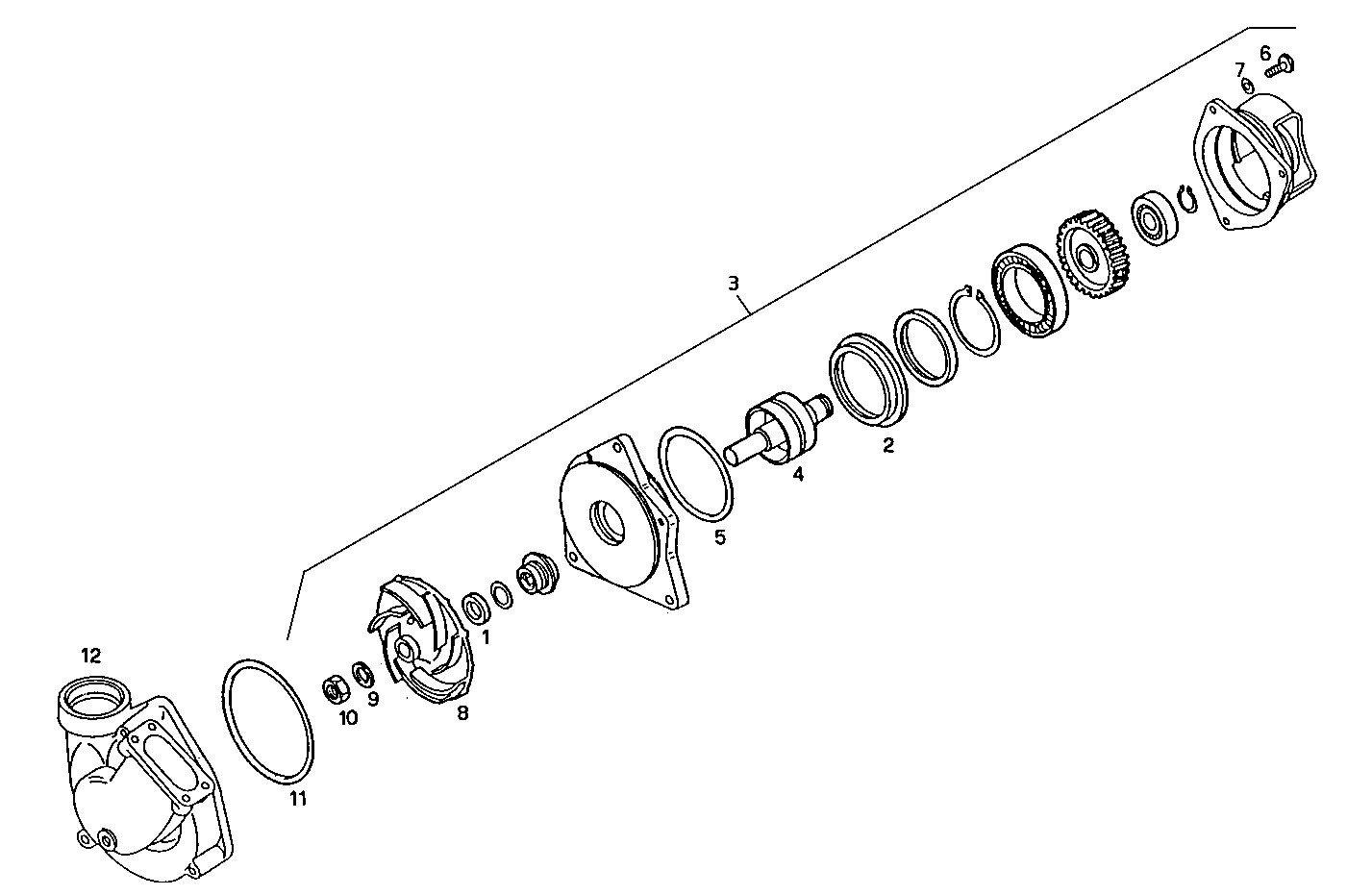

3200.062/02 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4814080 | GASKET |
| 2 | 40101501 | OIL RETAINER |
| 3 | 8021580 | SUPPORT ASSY |
| 4 | 4842745 | SHAFT ASSY |
| 5 | 17291781 | O-RING Ø110,72 MM SP=3,53 |
| 6 | 16043521 | SCREW M8X22 |
| 7 | 17094904 | WASHER Ø8X16X1,6 MM |
| 8 | 4882760 | WATER PUMP IMPELL. |
| 9 | 16665904 | WASHER Ø16X30X3 MM |
| 10 | 17159171 | NUT M16X1.5 |
| 11 | 17293081 | O-RING Ø152,00X3,53 MM |
| 12 | 4882239 | WATER PUMP HOUSING |
