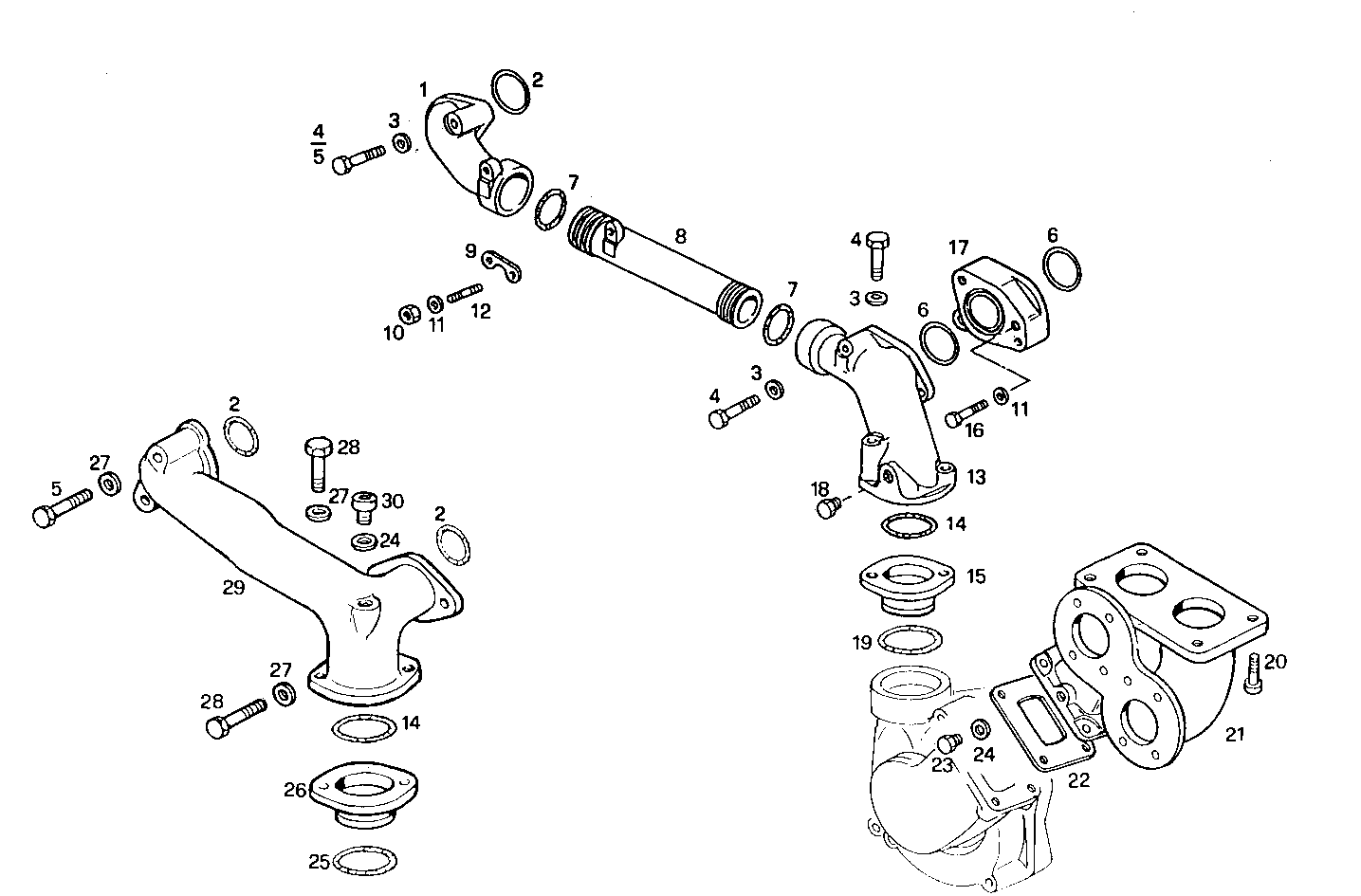

| Item |
Part number |
Description |
|
1 |
8019780 |
EXHAUST ELBOW [from 01-95] |
|
2 |
17283981 |
O-RING Ø50,4 MM SP=2,6 MM |
|
3 |
17094904 |
WASHER Ø8X16X1,6 MM |
|
4 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
5 |
16606624 |
HEXAGON BOLT M8X80 MM |
|
6 |
17284981 |
O-RING Ø66,34 MM SP=2,62 MM |
|
7 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
8 |
8019730 |
WATER PIPE [from 01-95] |
|
9 |
8019781 |
PLATE |
|
10 |
17037931 |
HEXAGON NUT M8X1,25 |
|
12 |
16729224 |
STUD M8X16 MM |
|
13 |
8019782 |
WATER PIPE [from 01-95] |
|
14 |
17290581 |
O-RING Ø72,63X3,53 MM |
|
15 |
8026630 |
FLANGE [from 06-98] |
|
16 |
16690924 |
CYLIND-HEAD SCREW M8X40 MM |
|
17 |
8019727 |
FLANGE [from 01-95] |
|
18 |
4882217 |
PIPE SOCKET M18X1,5 - M14X1,5 |
|
19 |
17296381 |
O-RING |
|
20 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
21 |
8013446 |
WATER CONVEYOR |
|
22 |
8010667 |
GASKET |
|
23 |
16992540 |
PLUG M18X1,5 |
|
24 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
26 |
4882245 |
CONNECTOR SLEEVE [up to 06-98] |
|
27 |
17094914 |
WASHER 8x16 |
|
28 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
29 |
4882275 |
WATER PIPE [up to 01-95] |
|
30 |
16993311 |
THREADED PLUG M18X1,5 |
