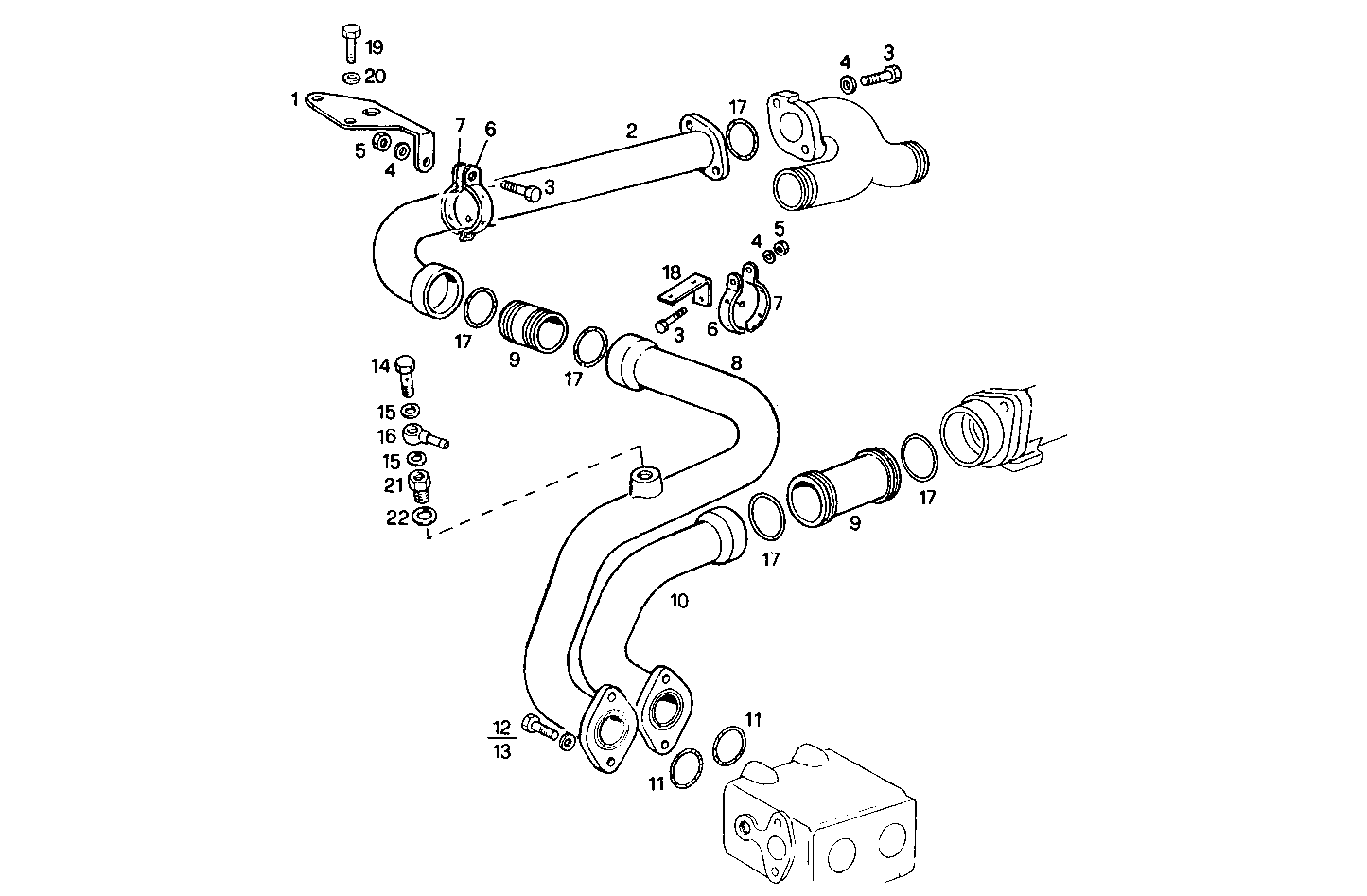

| Item |
Part number |
Description |
|
1 |
8017967 |
RETAINER |
|
2 |
8018207 |
WATER PIPE |
|
3 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
5 |
17037931 |
HEXAGON NUT M8X1,25 |
|
6 |
8113298 |
CLAMP |
|
7 |
8113299 |
CLAMP |
|
8 |
8018206 |
WATER PIPE |
|
9 |
8009637 |
WATER PIPE L=50 MM |
|
10 |
8018208 |
WATER PIPE |
|
11 |
17284981 |
O-RING Ø66,34 MM SP=2,62 MM |
|
12 |
15214224 |
SCREW M8x1,25x85 |
|
13 |
16602324 |
HEXAGON BOLT M5X25 MM |
|
14 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
15 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
16 |
98405514 |
PIPE SOCKET |
|
17 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
18 |
8014171 |
RETAINER |
|
19 |
16607624 |
SCREW M10X25 |
|
20 |
17090274 |
WASHER Ø10X20 MM |
|
21 |
8018282 |
PIPE SOCKET |
|
22 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
