8291SRi15.00

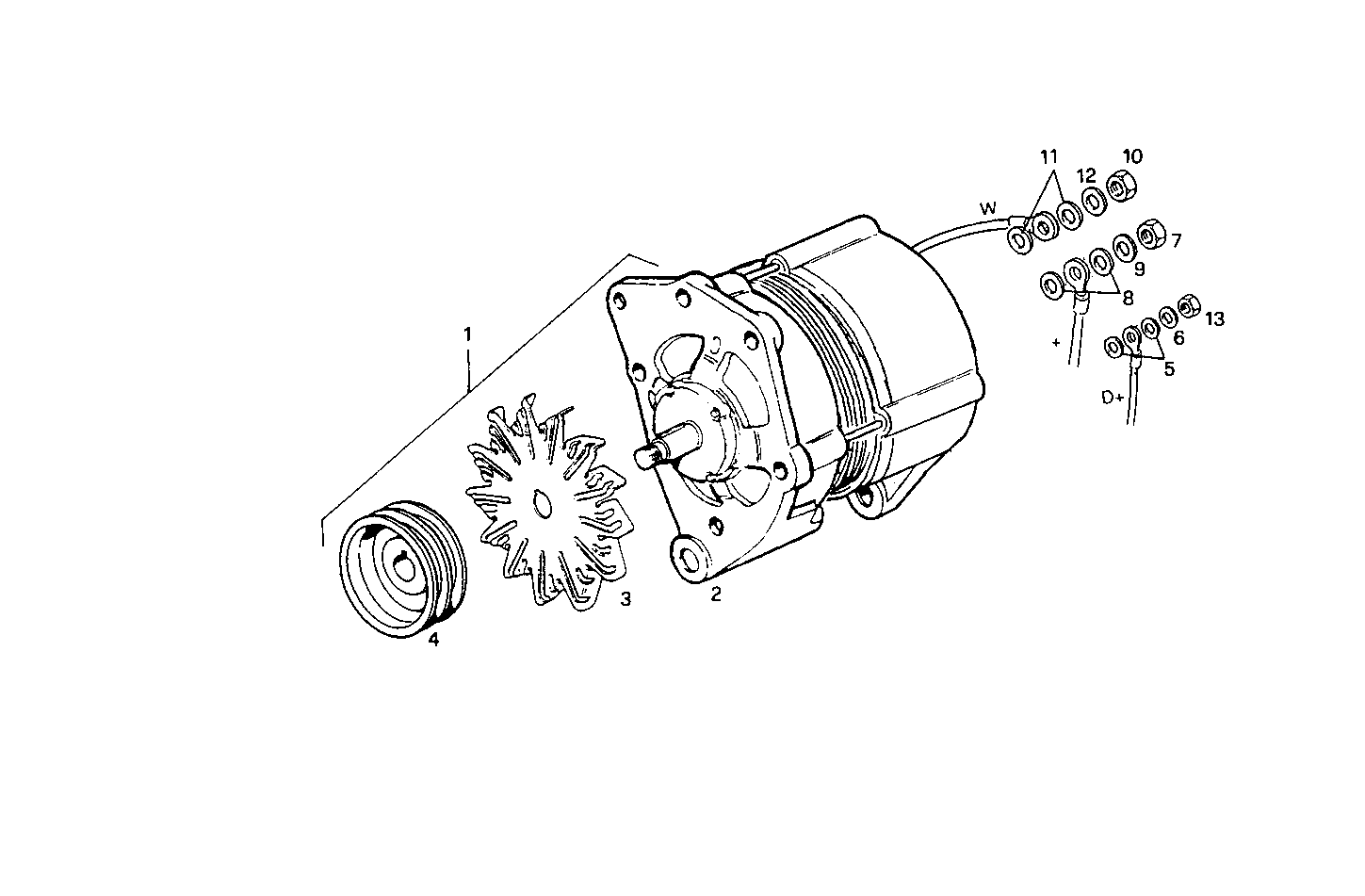

4000.035 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8019554 | ALTERNATOR ASSY |
| 2 | 98424450 | ALTERNATOR ASSY BOSCH |
| 3 | 4757196 | GENERATOR FAN BOSCH |
| 4 | 4802731 | GENERATOR PULLEY |
| 5 | 17094204 | WASHER Ø4X8X0,8 MM |
| 6 | 10615279 | WASHER Ø4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 17094914 | WASHER 8x16 |
| 9 | 17094834 | WASHER |
| 10 | 17037721 | NUT M5X0,8 |
| 11 | 17094504 | WASHER Ø5,3X10 MM |
| 12 | 10615379 | TOOTHED WASHER Ø5,3 MM |
| 13 | 17037621 | HEXAGON NUT M4 |
