8291SRi15.00

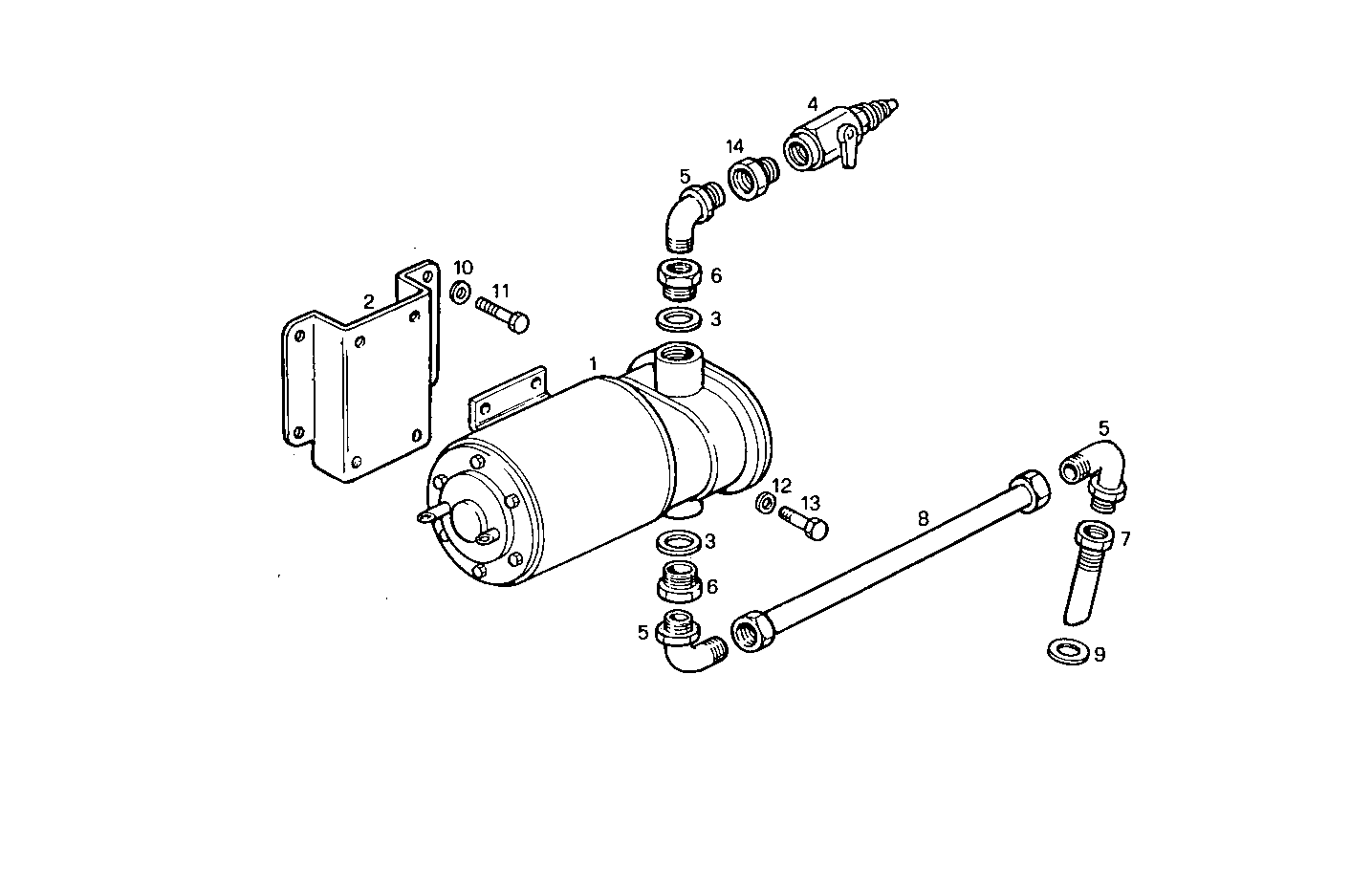

5510.024 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8011001 | OIL DRAIN ELECTRIC PUMP |
| 2 | 8018171 | SUPPORT |
| 3 | 11270460 | GASKET �17X21X1,5 MM |
| 4 | 8113932 | DRAIN COCK |
| 5 | 16512111 | PIPE SOCKET |
| 6 | 8011422 | PIPE SOCKET �3/8''/M22 MM |
| 7 | 8016101 | OIL LINE |
| 8 | 8018194 | OIL LINE |
| 9 | 11271460 | GASKET �21X26X1,5 MM |
| 10 | 17090174 | SPRING WASHER �10X20 MM |
| 11 | 15970521 | HEXAGON BOLT M10X20 MM |
| 12 | 17088474 | WASHER �6X12 MM |
| 13 | 16603524 | SCREW M6X12 MM (8.8) |
| 14 | 8016102 | PIPE SOCKET |
