8291SRi15.00

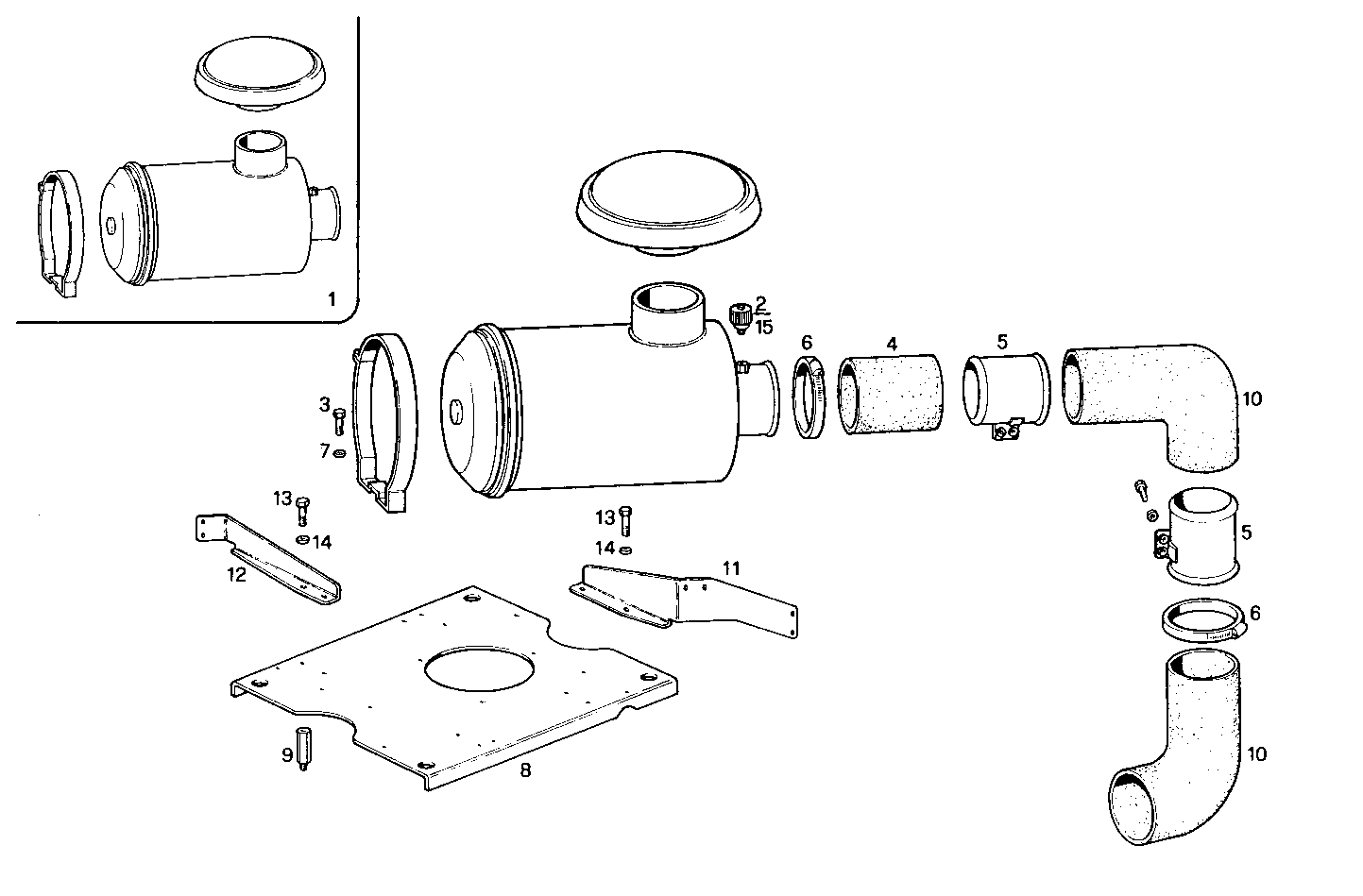

A21210034 DRY AIR CLEANER - with mechanical clogging gauge - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8016974 | AIR CLEANER OPT. |
| 2 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 4 | 8018097 | RUBBER SLEEVE |
| 5 | 8018108 | AIR PIPE/DUCT |
| 6 | 17766091 | CLIP Ø160/180 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 8018099 | SUPPORT |
| 9 | 8018100 | SPACING BAR |
| 10 | 8113938 | FILTER HOSE |
| 11 | 8018139 | RETAINER |
| 12 | 8018140 | RETAINER |
| 13 | 16605524 | HEXAGON BOLT M8X20 MM |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
