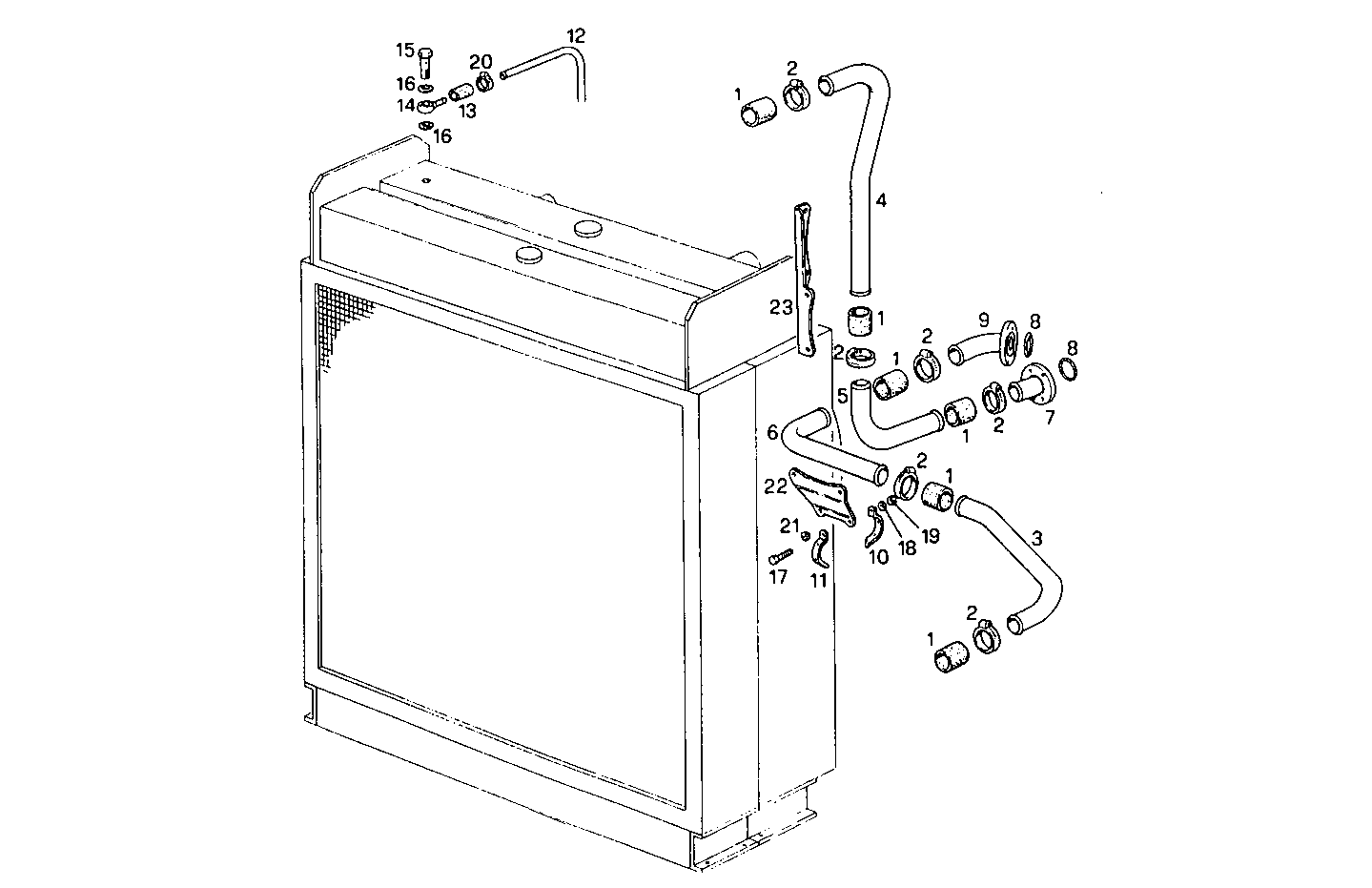

| Item |
Part number |
Description |
|
1 |
98421391 |
RUBBER SLEEVE [UP TO 30-11-07] |
|
2 |
17765091 |
CLIP �60/80 MM |
|
3 |
8019218 |
WATER PIPE |
|
4 |
8019217 |
WATER PIPE |
|
5 |
8019265 |
WATER PIPE |
|
6 |
8019219 |
WATER PIPE |
|
7 |
8019216 |
WATER PIPE |
|
8 |
17290581 |
O-RING �72,63X3,53 MM |
|
9 |
8019220 |
WATER PIPE |
|
10 |
8017810 |
CLAMP |
|
11 |
8017811 |
CLAMP |
|
12 |
8017220 |
WATER HOSE |
|
13 |
4927825 |
WATER HOSE |
|
14 |
98413896 |
PIPE SOCKET �8 MM |
|
15 |
60127770 |
SCREW CONNECTOR |
|
16 |
4858609 |
WASHER �16X22 MM SP=1,5 MM |
|
17 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
|
18 |
17090174 |
SPRING WASHER �10X20 MM |
|
19 |
17038121 |
HEXAGON NUT M10 |
|
20 |
17764291 |
CLIP |
|
21 |
1366290 |
RUBBER LUG |
|
22 |
8019270 |
SUPPORT |
|
23 |
8021816 |
SUPPORT |
