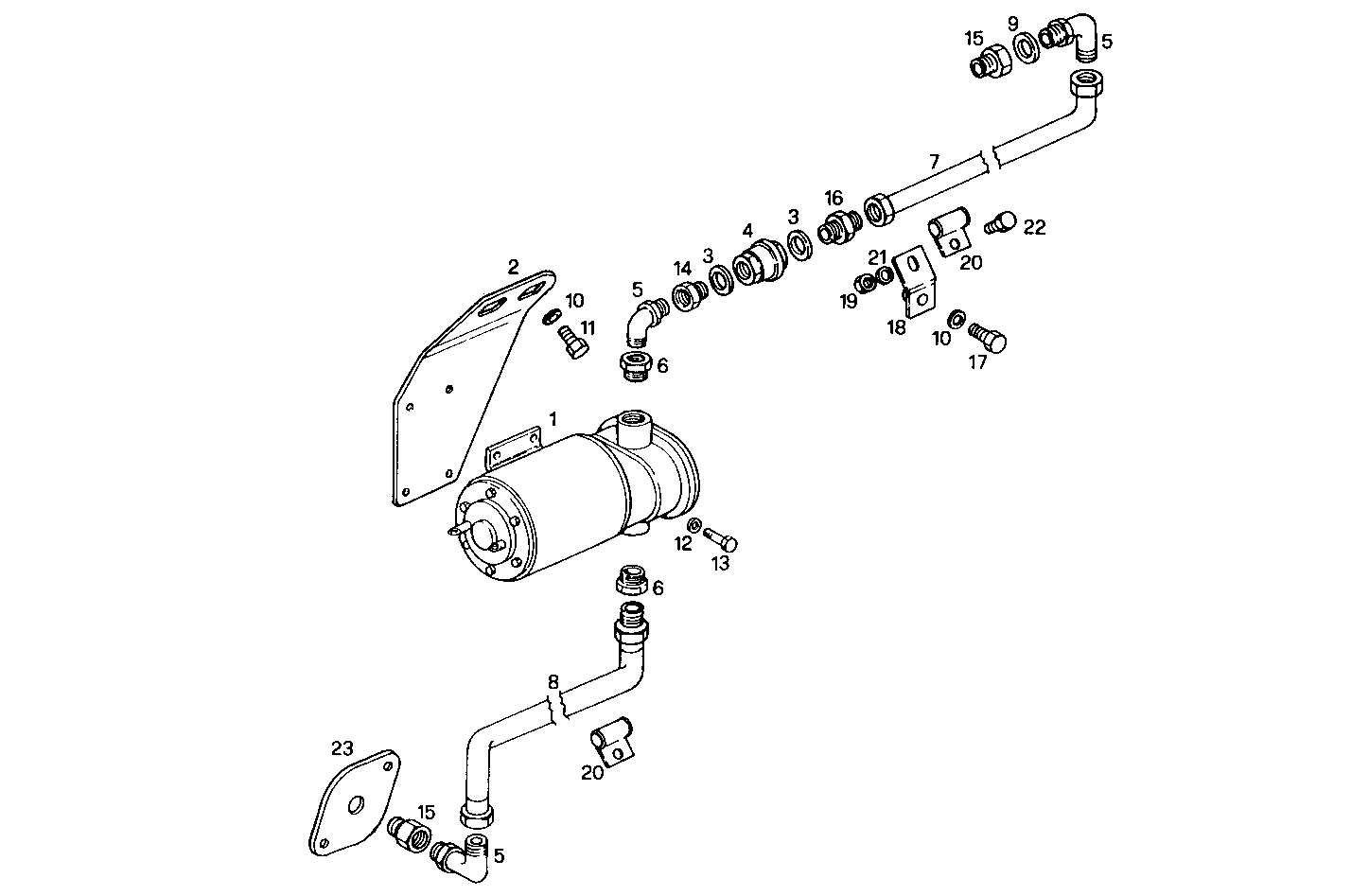

| Item |
Part number |
Description |
|
1 |
8011001 |
OIL DRAIN ELECTRIC PUMP |
|
2 |
8022059 |
SUPPORT |
|
3 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
4 |
8011241 |
VALVE 1/2'' |
|
5 |
16512111 |
PIPE SOCKET |
|
6 |
8011422 |
PIPE SOCKET Ø3/8''/M22 MM |
|
7 |
8022058 |
OIL LINE |
|
8 |
8021775 |
OIL LINE |
|
10 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
11 |
15540321 |
HEXAGON BOLT M12X1,25X25 MM |
|
12 |
17088474 |
WASHER Ø6X12 MM |
|
13 |
16603524 |
SCREW M6X12 MM (8.8) |
|
14 |
8011304 |
PIPE SOCKET |
|
15 |
8011519 |
PIPE SOCKET |
|
16 |
8018215 |
PIPE SOCKET |
|
17 |
15540521 |
SCREW M12X1,25X35 |
|
18 |
8018445 |
RETAINER |
|
19 |
17037821 |
HEXAGON NUT M6X1 |
|
20 |
17315190 |
FASTENING BRACKET ENGINE |
|
21 |
17088974 |
SPRING WASHER Ø6X18X1,4 MM |
|
22 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
23 |
8014037 |
FLANGE |
