8291SRM12.12

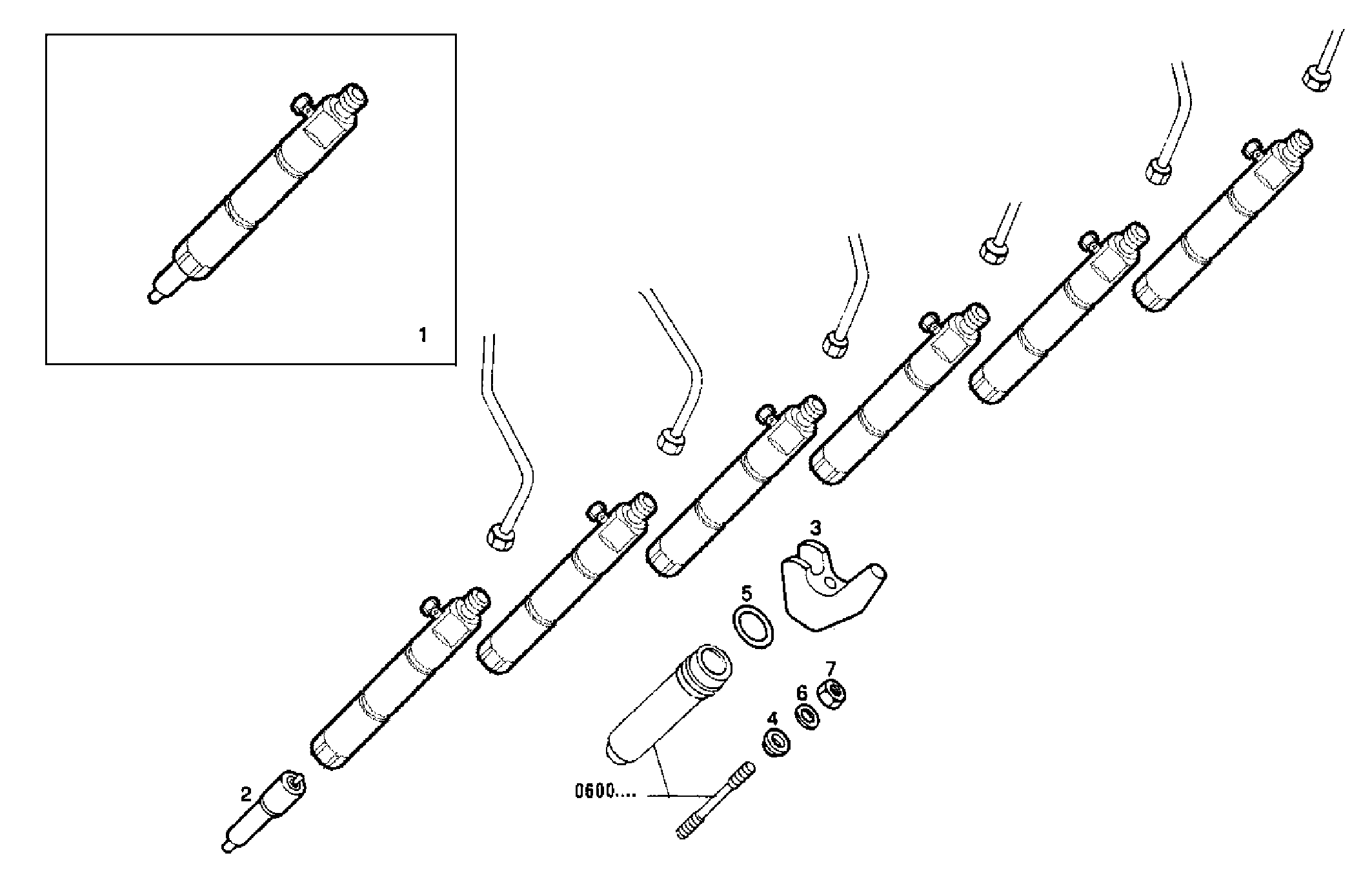

1420.060 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 8028814 | NOZZLE |
| 2 | 8027286 | FUEL NOZZLE |
| 3 | 4825501 | FASTENING BRACKET |
| 4 | 4700162 | WASHER Ø11,5 MM |
| 5 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 17038221 | HEXAGON NUT M10 |
