Catalogue Menu

8291SRM12.12

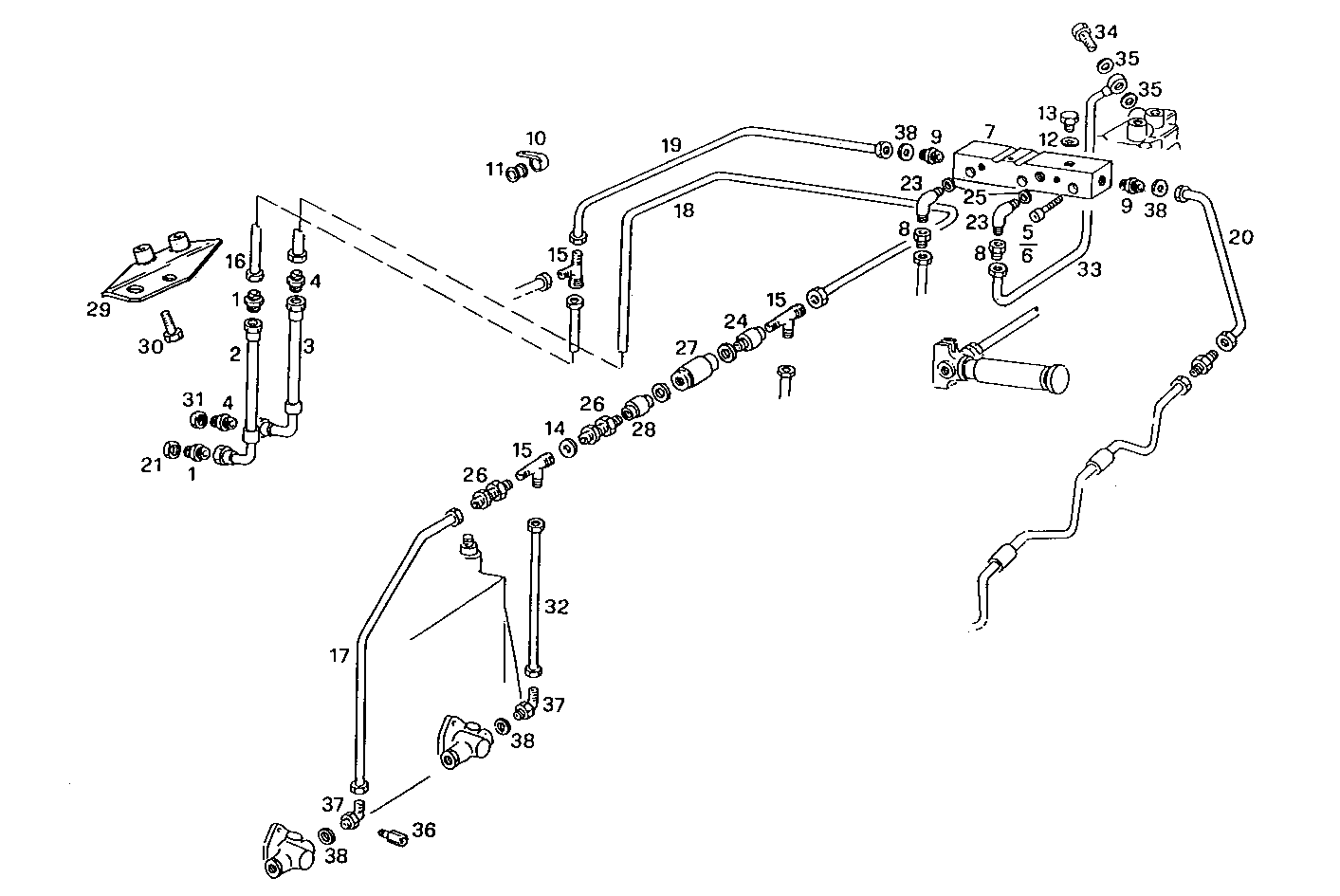

2030.152/01 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 8011138 PIPE SOCKET 1/2''/M16X1,5
2 8112285 FUEL LINE
3 8010406 FUEL LINE
4 8010502 PIPE SOCKET M22X1,5
5 16691324 CYLIND-HEAD SCREW M8X60 MM
6 16691224 CYLIND-HEAD SCREW M8X55 MM
7 8018178 DISTRIBUTOR
8 16500011 PIPE SOCKET
9 16500214 THREADED UNION M14X1,5/M16X1,5
10 4763804 FASTENING BRACKET
11 4757122 RUBBER PAD
13 16992311 LOCK PLUG M14X1,5
14 11270260 SEAL GASKET Ø14X18 MM
15 8011303 PIPE SOCKET
16 8020666 FUEL LINE
17 8018184 FUEL LINE
18 8020660 FUEL LINE
19 8018188 FUEL LINE
20 8018189 FUEL LINE
21 16508911 NUT M18X1,5
22 11271460 GASKET Ø21X26X1,5 MM
23 16503811 ELBOW COUPLING
24 8018215 PIPE SOCKET
25 4858606 GASKET Ø10X14X1 MM
26 8018203 PIPE SOCKET
27 8018220 VALVE
28 8011304 PIPE SOCKET
29 8014474 SUPPORT
30 16605924 SCREW M8X40 MM
31 16509011 NUT M22X1,5X7 MM
32 8018837 FUEL LINE
33 8021334 FUEL LINE
34 8020609 SCREW CONNECTOR [from 04-94]
35 98474308 SEAL GASKET Ø14X22 MM
36 8017715 PIPE SOCKET
37 8025927 ELBOW COUPLING
38 4858608 SEAL GASKET dia.14x19,5x1,5
