8291SRM12.12

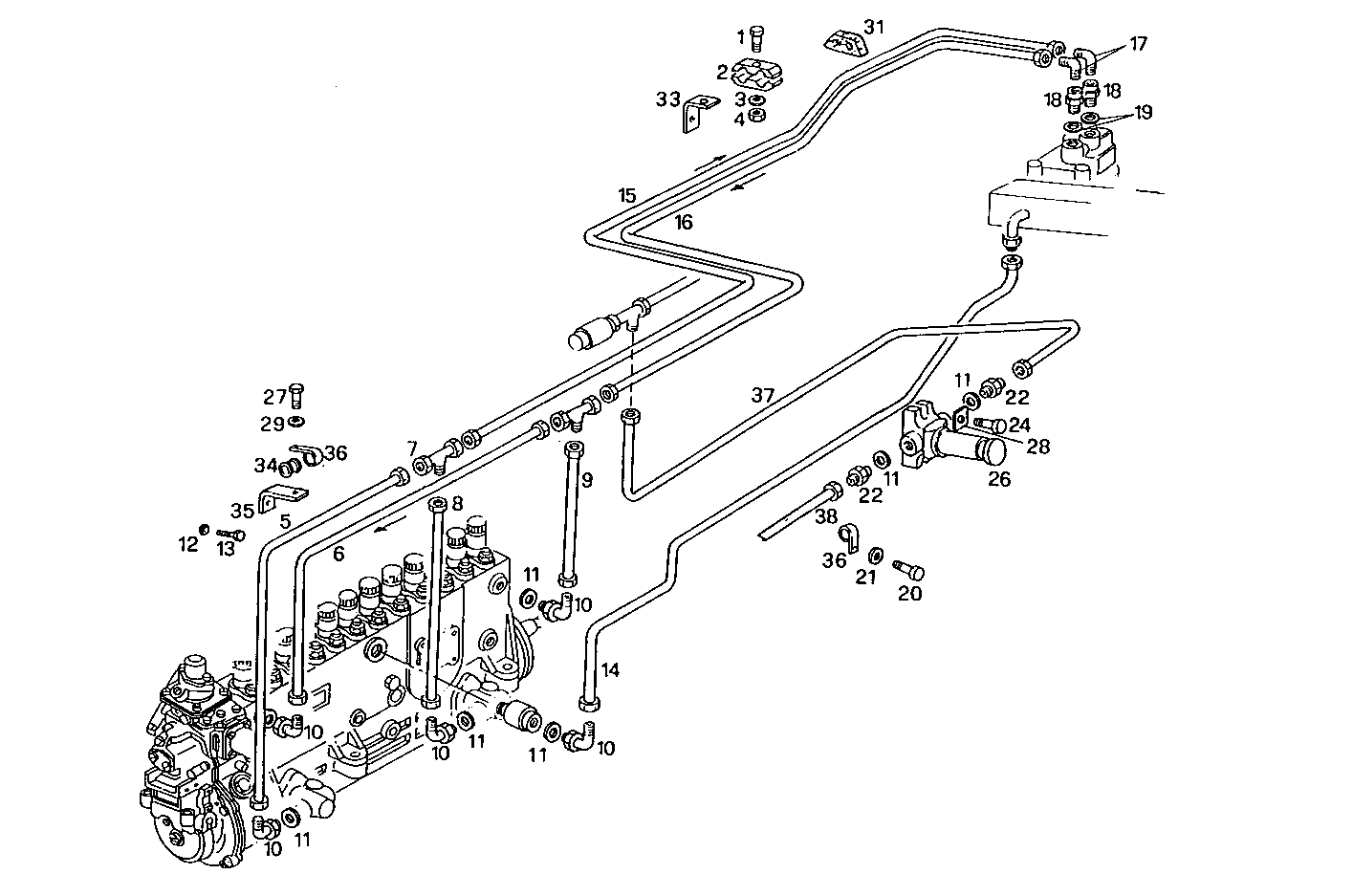

2030.152/02 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 16605824 HEXAGON BOLT M8X35 MM
2 8010505 CLAMP Ø16 MM
3 17094914 WASHER 8x16
4 17037931 HEXAGON NUT M8X1,25
5 8018870 FUEL LINE
6 8020663 FUEL LINE
7 16605924 SCREW M8X40 MM
8 8018871 FUEL LINE
9 8020664 FUEL LINE
10 8025927 ELBOW COUPLING
11 4858608 SEAL GASKET dia.14x19,5x1,5
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16605424 SCREW M8X16 MM (8.8)
14 8021343 INJECTION LINE
15 8020641 FUEL LINE
16 8020642 FUEL LINE
17 16512111 PIPE SOCKET
18 8010452 PIPE SOCKET
19 10303460 SEAL GASKET Ø30x36x1,5 MM
20 16603724 HEXAGON BOLT M6X20 MM (8.8)
21 17088474 WASHER Ø6X12 MM
22 16500214 THREADED UNION M14X1,5/M16X1,5
24 16603824 SCREW M6X25
25 17088974 SPRING WASHER Ø6X18X1,4 MM
26 4797319 HAND PUMP ASSY
27 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
28 11351379 PLATE
29 17090174 SPRING WASHER Ø10X20 MM
31 4696015 RUBBER PAD
33 8107409 RETAINER
34 8011236 RUBBER PAD
35 8005101 RETAINER
36 4755963 FASTENING BRACKET
37 8020661 FUEL LINE
38 8020662 FUEL LINE
