8291SRM12.12A001

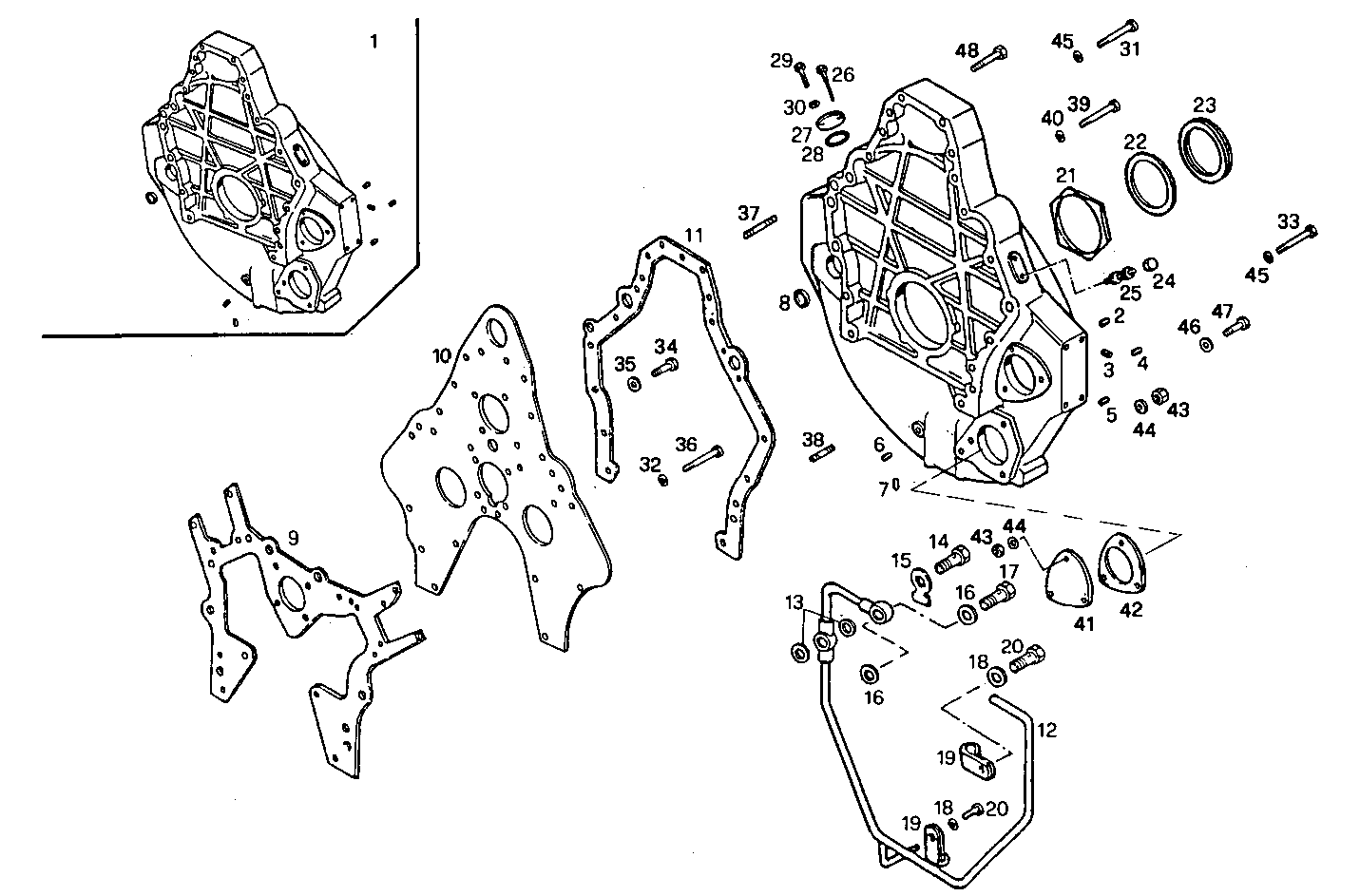

0430.057/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 8014652 FLYWHEEL HOUSING ASSY
2 17873171 THREADED INSERT M6
3 17873271 THREADED INSERT M8
4 17873471 THREADED INSERT
5 17873571 THREADED INSERT
6 17873671 THREADED INSERT M12X1,25
7 17873971 THREADED INSERT M16
8 16991170 LOCK PLUG Ø36 MM
9 8012849 GASKET
10 8012839 PLATE
11 8017827 GASKET
12 4792348 OIL LINE
13 4858606 GASKET Ø10X14X1 MM
14 4503811 SCREW CONNECTOR M10X1,25
15 852409 LOCKING PLATE Ø10,5 MM
16 4858605 WASHER Ø8X12 MM
17 11903714 SCREW CONNECTOR M8
18 13550301 WASHER Ø8,15 MM
19 852410 FASTENING BRACKET
20 16042921 SCREW M8X10
21 4882671 WASHER
22 4792208 OIL RETAINER
23 40101491 OIL RETAINER
24 8101586 PLUG
25 4931603 PIPE SOCKET
26 8009478 INDICATOR
27 4881253 COVER
28 17289681 O-RING Ø44 MM SP=3,53 MM
29 16605624 HEXAGON BOLT M8X25 MM (8.8)
30 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 15972431 HEXAGON BOLT M10X1,25X130
33 15972031 SCREW M10X1,25X110
34 14307431 SCREW
35 17101634 SPRING WASHER Ø10X16X2,5 MM
37 16748424 STUD M10X20X20
38 16748624 STUD M10X30 MM
39 10943831 SCREW
40 4604279 SPRING WASHER Ø14X32 MM SP=4 MM
41 8010212 COVER
42 8009881 GASKET
43 17038121 HEXAGON NUT M10
44 17090474 SPRING WASHER Ø10X27 MM SP=2,5
45 17095114 WASHER Ø10X21 MM
46 17095314 WASHER Ø12X24 MM [up to ...]
47 15540931 SCREW M12X1,25X55
