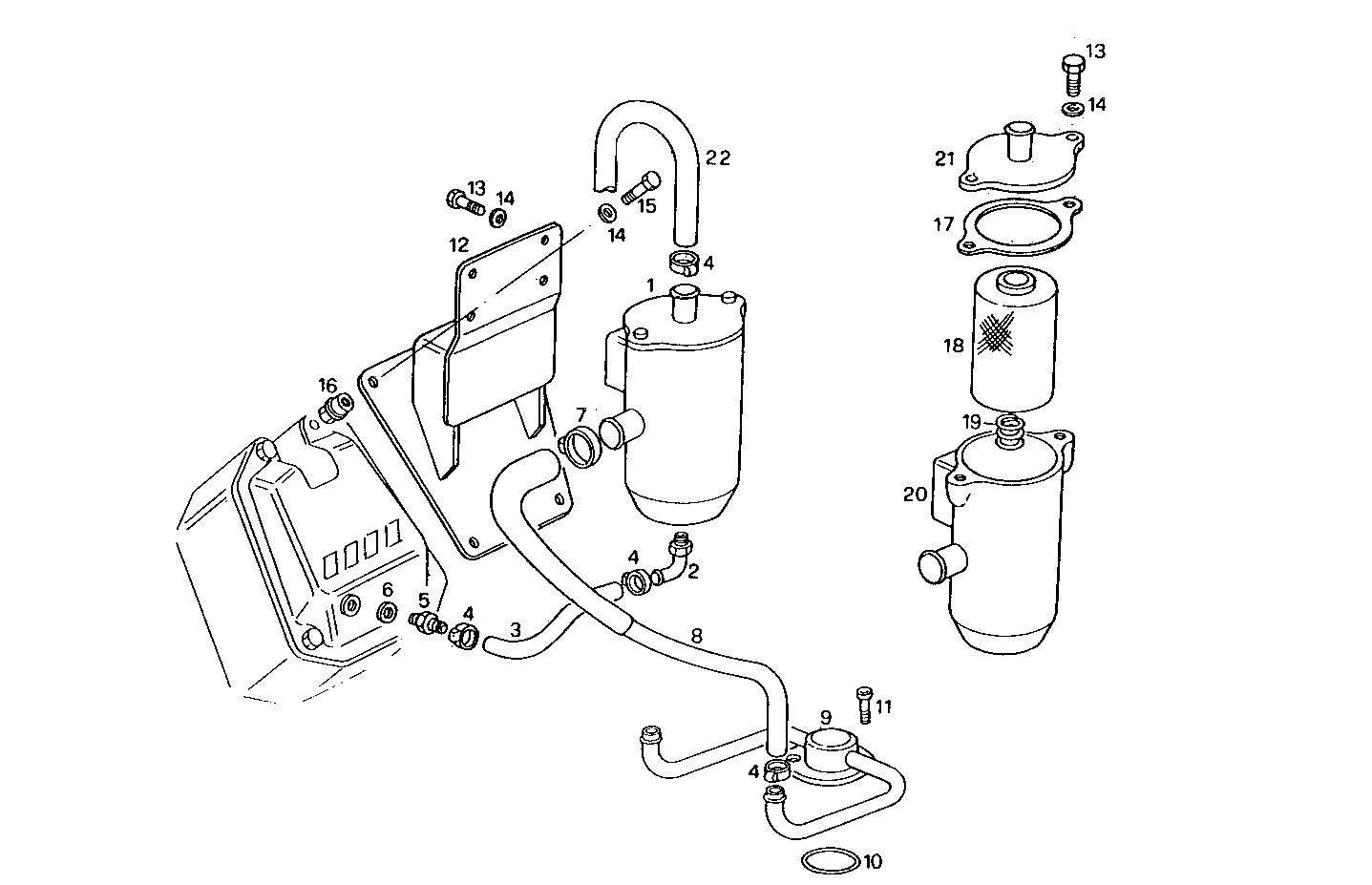

| Item |
Part number |
Description |
|
1 |
8028887 |
BREATHER ASSY |
|
2 |
8111261 |
PIPE SOCKET Ø1/8'' MM |
|
3 |
8021856 |
HOSE L=450 MM |
|
4 |
17764693 |
CLIP Ø25/40 MM |
|
5 |
16500011 |
PIPE SOCKET |
|
6 |
16550760 |
GASKET Ø10X13,5 MM SP=1 |
|
7 |
17764893 |
CLIP Ø40/60 MM |
|
8 |
8027192 |
HOSE |
|
9 |
8027984 |
BREATHER PIPE |
|
10 |
17283581 |
O-RING Ø44,12 MM SP=2,62 MM |
|
11 |
16690424 |
CYLIND-HEAD SCREW M8X1,25X16 MM |
|
12 |
8027967 |
SUPPORT |
|
13 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
14 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
15 |
16605424 |
SCREW M8X16 MM (8.8) |
|
16 |
8026366 |
PIPE SOCKET |
|
17 |
8023819 |
GASKET |
|
18 |
1902096 |
FUEL FILTER ELEM. SECONDARY |
|
19 |
4965120 |
SPRING |
|
20 |
8027983 |
BREATHER |
|
21 |
8028888 |
COVER |
|
22 |
8028047 |
AIR HOSE |
