8291SRM12.12A001

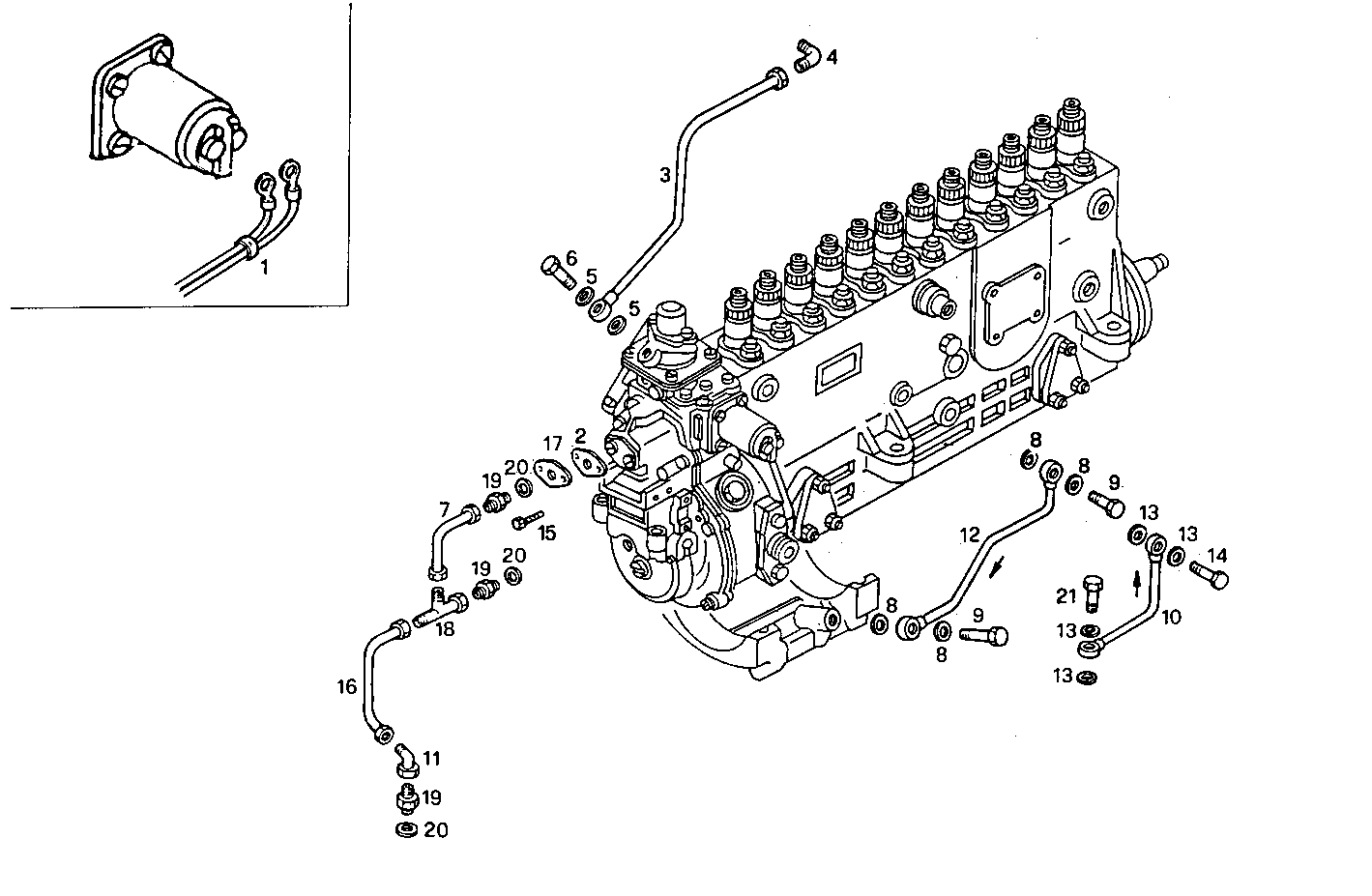

1400.095/02 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8011420 WIRE/CABLE
2 8111233 GASKET
3 8010375 FUEL LINE
4 8112247 PIPE SOCKET
5 4858607 WASHER Ø12X17 MM SP=1,5 MM
6 4864082 BANJO BOLT M12X1,5X25 MM
7 8011707 FUEL LINE
8 4858608 SEAL GASKET dia.14x19,5x1,5
9 4864083 SCREW CONNECTOR M14X1,5X30 MM
10 8013905 FUEL LINE
11 16504011 PIPE SOCKET
12 8013906 FUEL LINE
13 4858606 GASKET Ø10X14X1 MM
14 4864079 SCREW CONNECTOR M10X1
15 16689124 CYLIND-HEAD SCREW M6X16 MM
16 8011590 FUEL LINE
17 8011711 COVER
18 16504714 T-COUPLING
19 16500214 THREADED UNION M14X1,5/M16X1,5
20 98474308 SEAL GASKET Ø14X22 MM
21 4864080 SCREW CONNECTOR M10X1,25
