8291SRM12.12A001

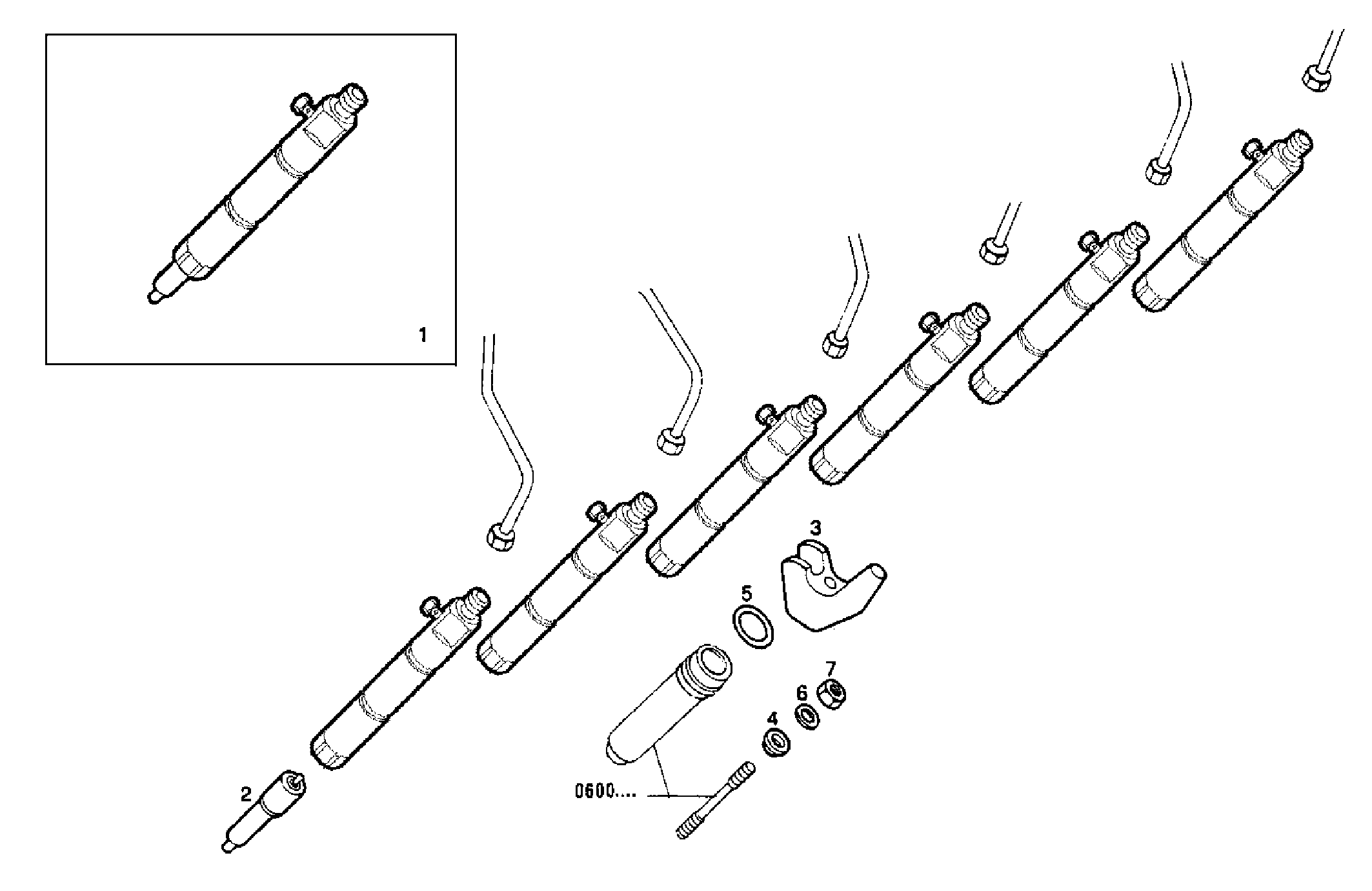

1420.105 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 4835952 | NOZZLE ASSY |
| 2 | 4835954 | FUEL NOZZLE |
| 3 | 4825501 | FASTENING BRACKET |
| 4 | 4700162 | WASHER Ø11,5 MM |
| 5 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 17038221 | HEXAGON NUT M10 |
