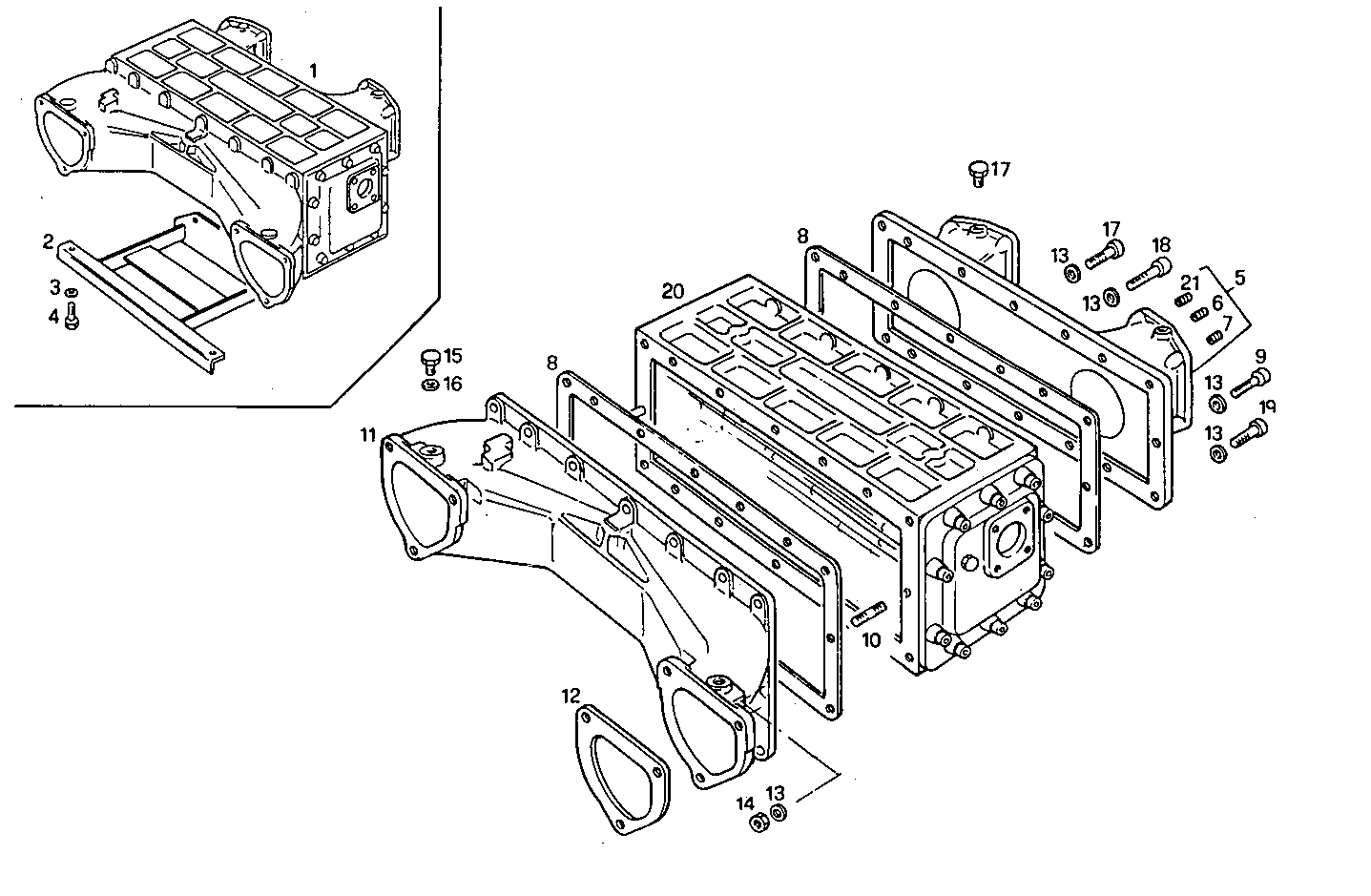

| Item |
Part number |
Description |
|
1 |
8020667 |
AIR/WATER HEAT EXCHANGER ASSY |
|
2 |
8015818 |
RETAINER |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
16607624 |
SCREW M10X25 |
|
5 |
8010076 |
AIR HOOD ASSY |
|
6 |
17873271 |
THREADED INSERT M8 |
|
7 |
17873371 |
THREADED INSERT M10X1,5 |
|
8 |
8008906 |
GASKET |
|
9 |
16606024 |
SCREW M8X45 MM |
|
10 |
16729324 |
STUD M8X12X20 MM |
|
11 |
8016672 |
AIR HOOD |
|
12 |
4786886 |
GASKET |
|
13 |
17094914 |
WASHER 8x16 |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
10304911 |
THREADED PLUG M20X1,5 |
|
16 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
17 |
8105144 |
PLUG |
|
18 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
19 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
20 |
8114205 |
AIR/WATER HEAT EXCHANGER |
|
21 |
17873571 |
THREADED INSERT |
