8291SRM12.12A001

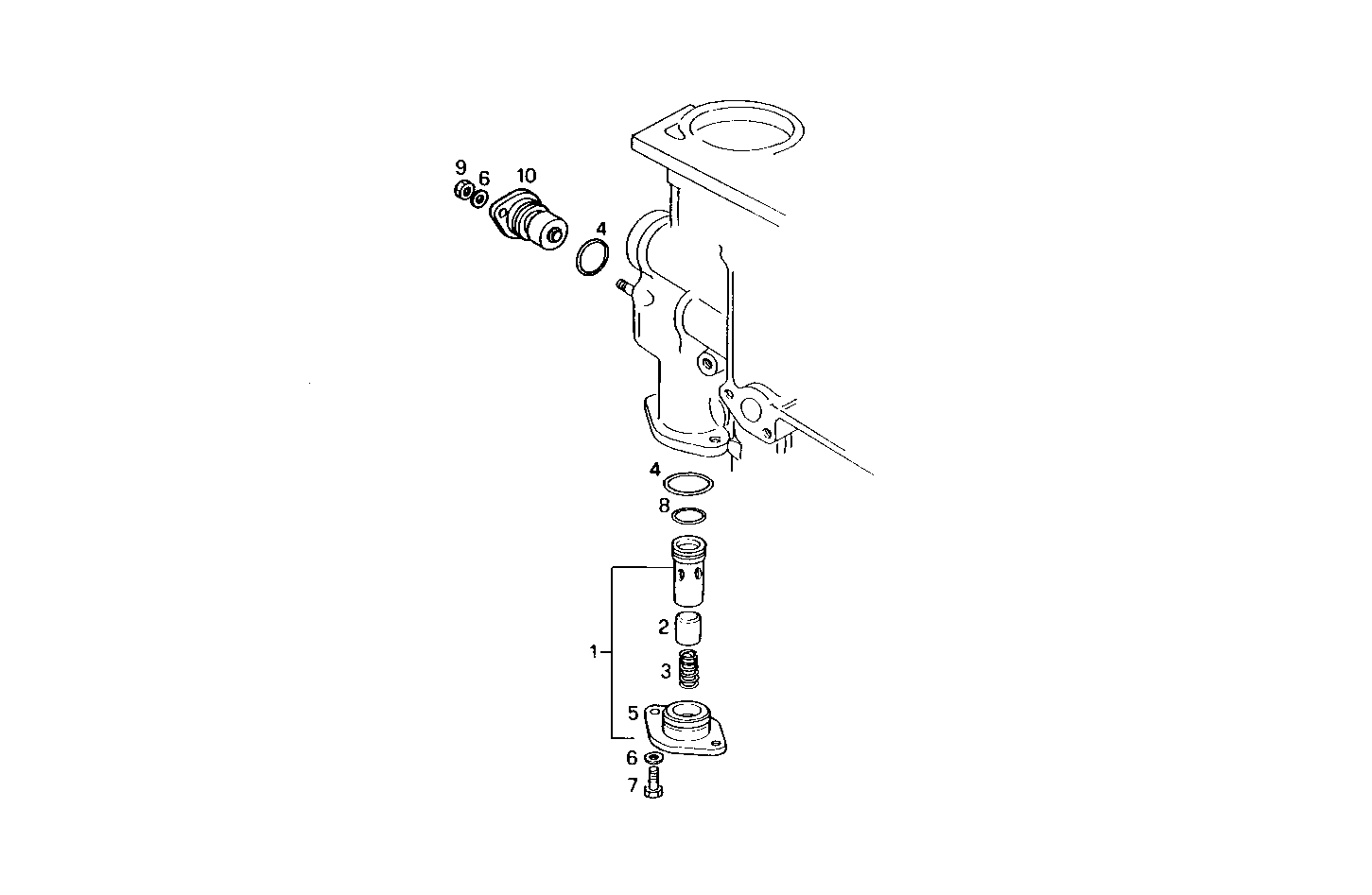

3030.019 OIL PRESSURE VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4863143 | VALVE ASSY |
| 2 | 4861344 | VALVE |
| 3 | 4861261 | SPRING |
| 4 | 17283681 | O-RING Ø45,6 MM SP=2,62 MM |
| 5 | 4785405 | COVER |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16605524 | HEXAGON BOLT M8X20 MM |
| 8 | 98465110 | O-RING Ø31,42 MM SP=2,62 MM |
| 9 | 17037921 | HEXAGON NUT M8X1,25 |
| 10 | 4783053 | THERMOSTAT |
