8291SRM12.12A001

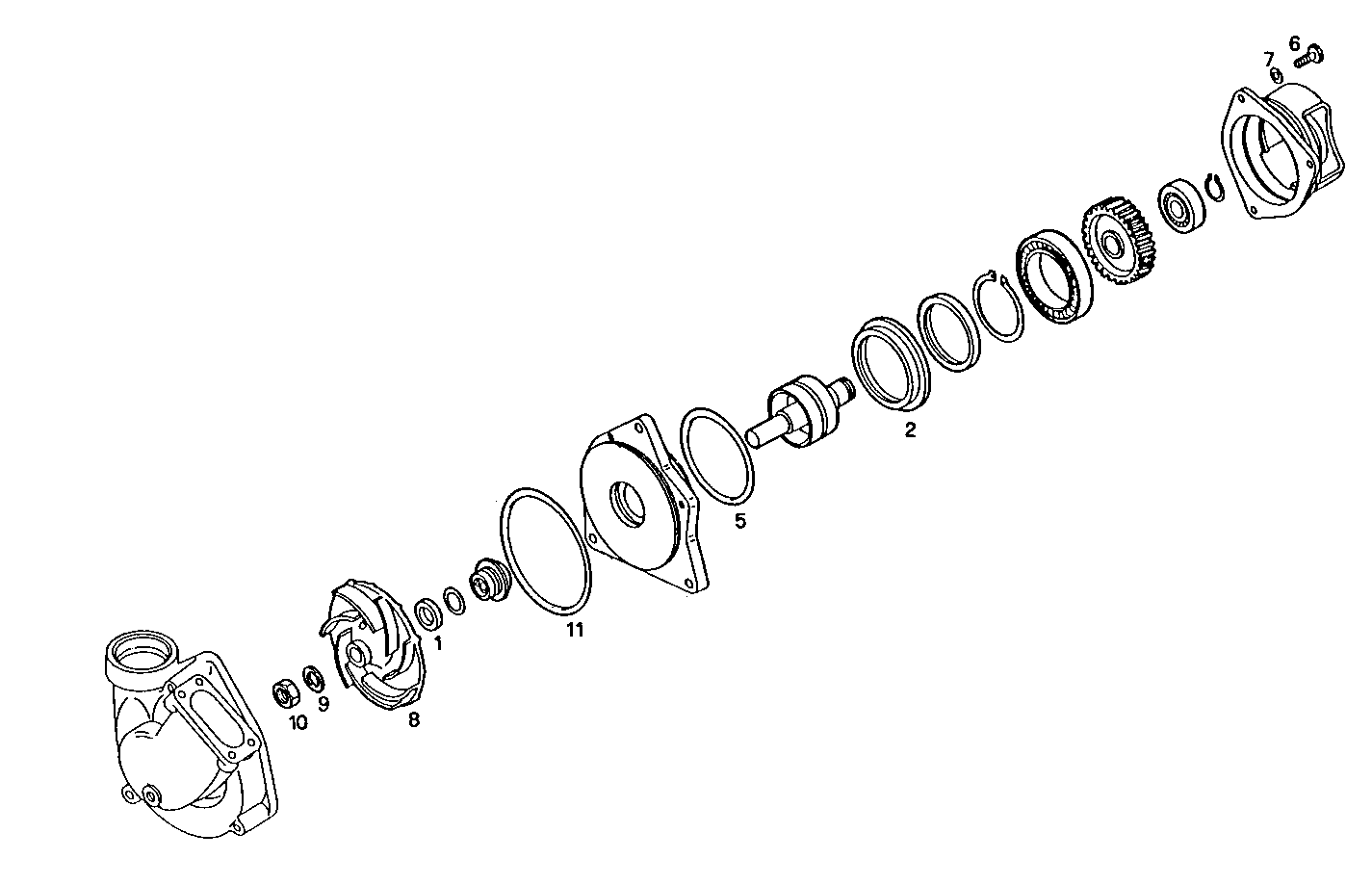

3200.034/02 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4814080 | GASKET |
| 2 | 40101501 | OIL RETAINER |
| 5 | 17291781 | O-RING Ø110,72 MM SP=3,53 |
| 6 | 16043521 | SCREW M8X22 |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 4782575 | WATER PUMP IMPELL. |
| 9 | 16665904 | WASHER Ø16X30X3 MM |
| 10 | 17159171 | NUT M16X1.5 |
| 11 | 17292781 | O-RING Ø142,50X3,53 MM |
