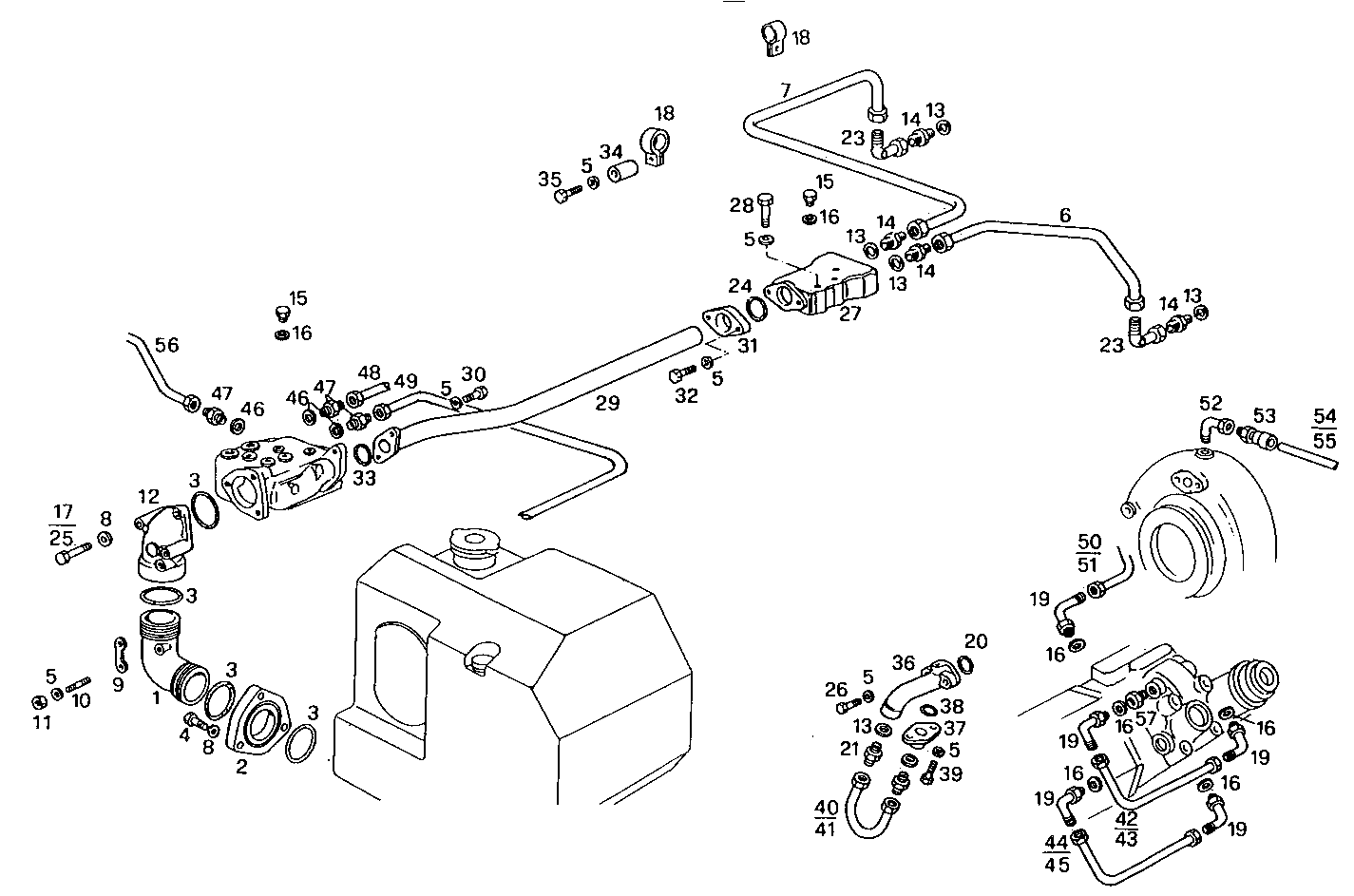

| Item |
Part number |
Description |
|
1 |
8020498 |
WATER PIPE |
|
2 |
8009252 |
FLANGE |
|
3 |
17290581 |
O-RING Ø72,63X3,53 MM |
|
4 |
16606024 |
SCREW M8X45 MM |
|
5 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
6 |
8020648 |
WATER PIPE |
|
7 |
8023033 |
WATER PIPE |
|
8 |
17094914 |
WASHER 8x16 |
|
9 |
8019781 |
PLATE |
|
10 |
16729224 |
STUD M8X16 MM |
|
11 |
17037931 |
HEXAGON NUT M8X1,25 |
|
12 |
8020497 |
WATER PIPE |
|
13 |
98429282 |
SEAL GASKET Ø26X33 MM SP=1,5 MM |
|
14 |
8110943 |
PIPE SOCKET M30X1,5/M25X1,5 |
|
15 |
16992411 |
THREADED PLUG M16X1,5 |
|
16 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
17 |
16605924 |
SCREW M8X40 MM |
|
18 |
8010597 |
RETAINER |
|
19 |
8025927 |
ELBOW COUPLING |
|
20 |
17279381 |
O-RING Ø31,47X1,78 MM |
|
22 |
16606624 |
HEXAGON BOLT M8X80 MM |
|
23 |
16526514 |
ELBOW COUPLING |
|
24 |
17283381 |
O-RING Ø40,94X2,62 MM |
|
26 |
16691024 |
CYLIND-HEAD SCREW M8X45 MM |
|
27 |
8020580 |
WATER PIPE |
|
28 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
29 |
8020585 |
WATER PIPE |
|
30 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
31 |
8020582 |
FLANGE |
|
32 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
33 |
17289481 |
O-RING Ø37,69 MM SP=3,53 MM |
|
34 |
8021208 |
SPACING BAR |
|
35 |
16605424 |
SCREW M8X16 MM (8.8) |
|
36 |
8020411 |
WATER PIPE |
|
37 |
8020437 |
FLANGE |
|
38 |
8026100 |
O-RING Ø3,53X53,57 MM |
|
40 |
8020418 |
WATER PIPE LEFT |
|
41 |
8020436 |
WATER PIPE RIGHT |
|
42 |
8016714 |
WATER PIPE LEFT |
|
43 |
8016717 |
WATER PIPE RIGHT |
|
44 |
8016713 |
WATER PIPE LEFT |
|
45 |
8016716 |
WATER PIPE RIGHT |
|
46 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
47 |
16500111 |
THREADED UNION |
|
48 |
8020668 |
WATER PIPE |
|
49 |
8020670 |
WATER PIPE |
|
50 |
8021689 |
WATER PIPE LEFT |
|
51 |
8016715 |
WATER PIPE RIGHT |
|
52 |
8111261 |
PIPE SOCKET Ø1/8'' MM |
|
53 |
8111316 |
PIPE SOCKET |
|
54 |
8021846 |
AIR PIPE/DUCT RIGHT |
|
55 |
8021847 |
AIR PIPE/DUCT LEFT |
|
56 |
8020669 |
WATER PIPE |
|
57 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
