8291SRM12.12A001

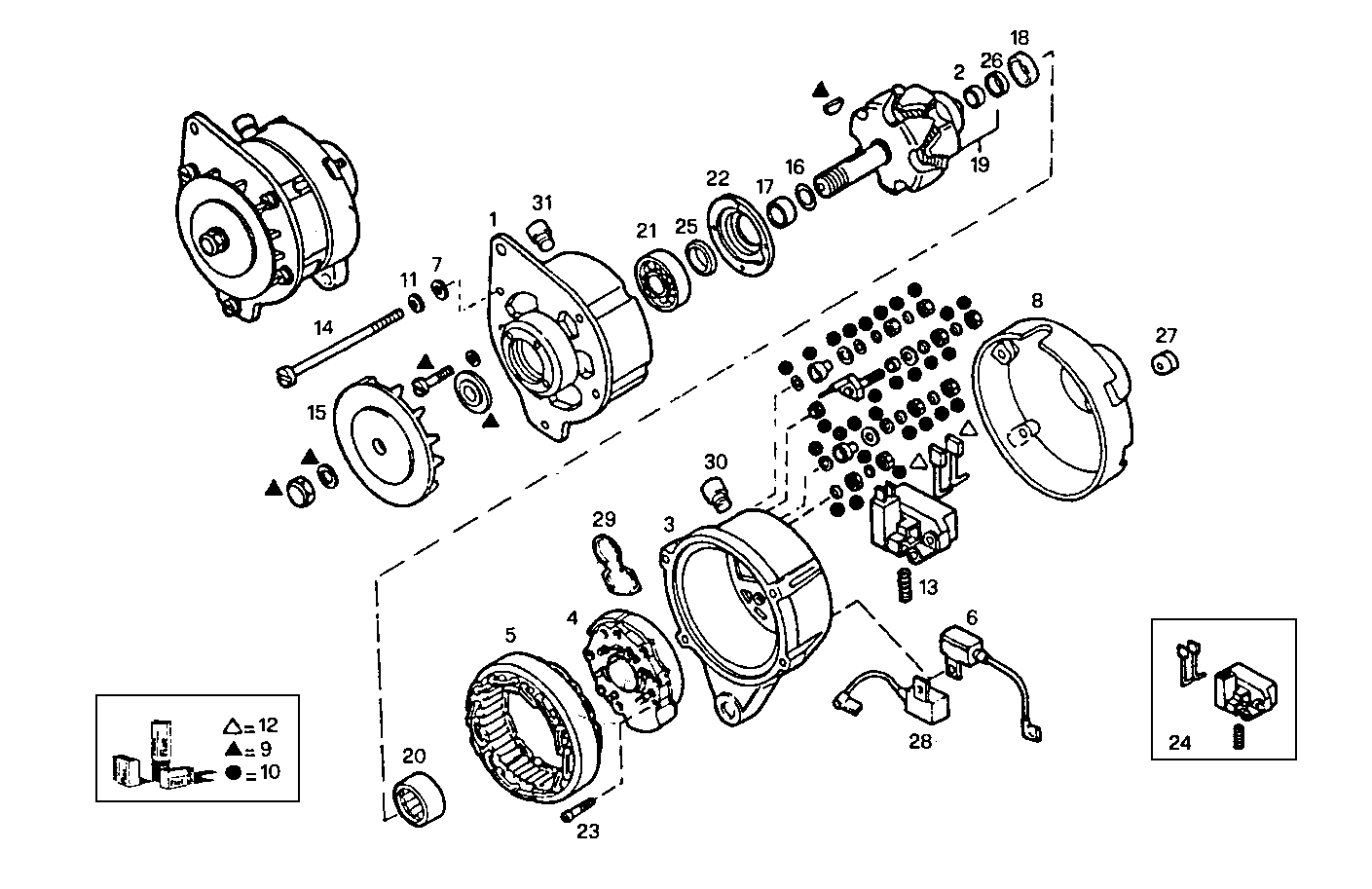

4030.013 GENERATOR (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
8122269 |
GENERATOR SUPPORT FRONT |
|
2 |
8122271 |
RING |
|
3 |
8199086 |
GENERATOR SUPPORT REAR |
|
4 |
8122274 |
RECTIFIER BRIDGE |
|
5 |
7984048 |
GENERATOR STATOR |
|
6 |
79074709 |
CONDENSER SP=0,5 MM |
|
7 |
1124654 |
WASHER |
|
8 |
8011360 |
COVER |
|
9 |
8122284 |
KIT-GENERATOR |
|
10 |
8124787 |
KIT-GENERATOR |
|
11 |
79058502 |
WASHER |
|
12 |
8122276 |
GENERATOR BRUSH |
|
13 |
42491524 |
SPRING |
|
14 |
8199088 |
SCREW |
|
15 |
8122280 |
GENERATOR FAN |
|
16 |
1119832 |
SNAP RING Ø30 MM |
|
17 |
1301177 |
BUSH |
|
18 |
8122282 |
RING |
|
19 |
8122270 |
GENERATOR ROTOR ASSY |
|
20 |
1905186 |
ENGINE BEARINGS |
|
21 |
1103694 |
DRIVE BEARING |
|
22 |
1301183 |
PLATE |
|
23 |
79093985 |
SCREW |
|
24 |
8199087 |
VOLTAGE REGULATOR ASSY |
|
25 |
1290380 |
WASHER |
|
26 |
8122281 |
BUSH |
|
27 |
1171647 |
RUBBER GROMMET |
|
28 |
8199090 |
CONDENSER |
|
29 |
7984047 |
GASKET |
|
30 |
7984649 |
LUBE FITTING |
|
31 |
7984650 |
LUBE FITTING |
