8291SRM12.12A001

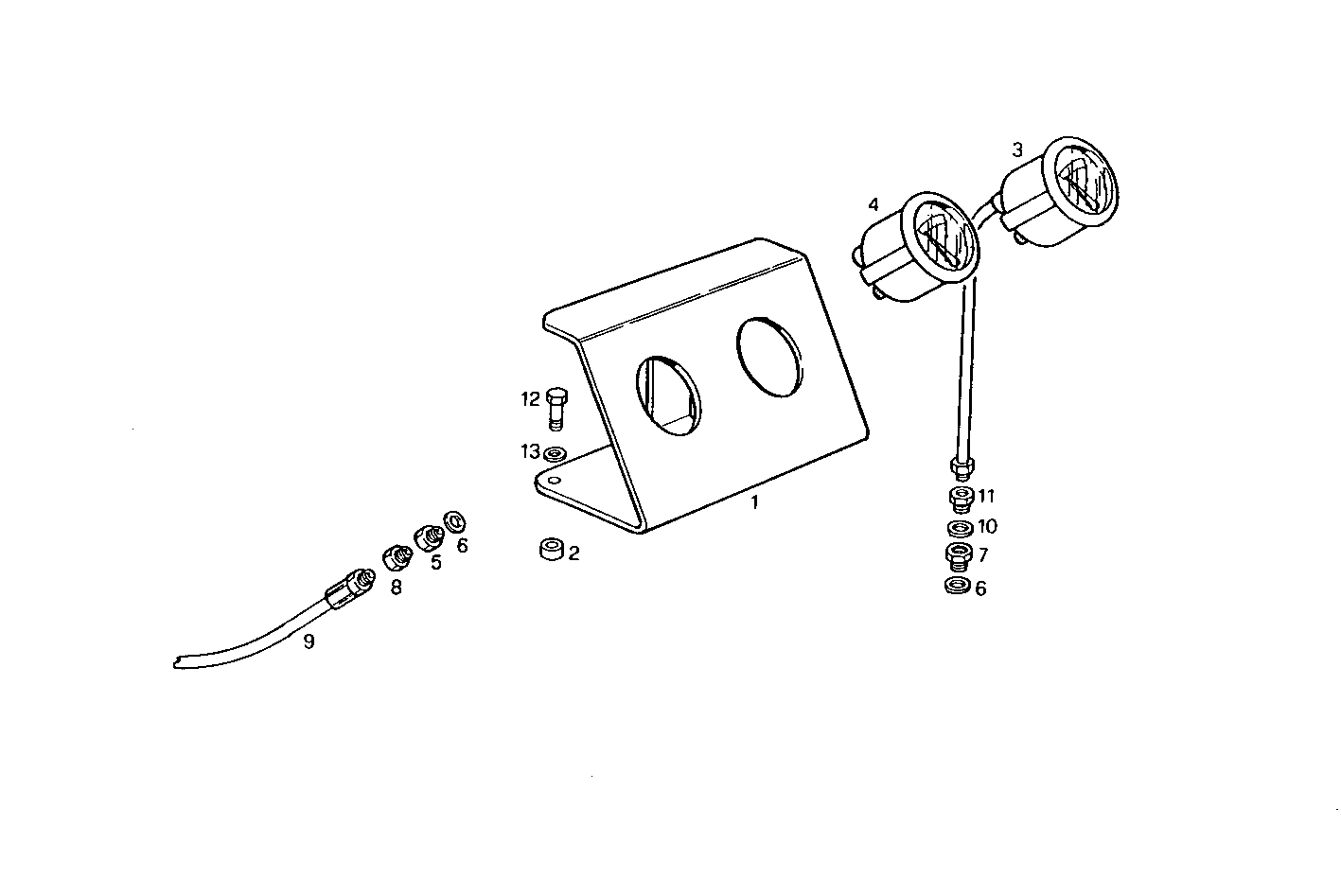

5630.007 PANEL WITH ELECTRICAL INSTRUMENTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8028091 | SUPPORT |
| 2 | 17814711 | SPACING BAR Ø6,5X15 MM SP=15 MM |
| 3 | 4936123 | PRESSURE GAUGE |
| 4 | 4132980 | THERMOMETER |
| 5 | 4919578 | PIPE SOCKET M22X1,5/M16X1,5 |
| 6 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 7 | 8011514 | THREADED UNION |
| 8 | 4916203 | PIPE SOCKET |
| 9 | 8024896 | HOSE |
| 10 | 4858606 | GASKET Ø10X14X1 MM |
| 11 | 16500011 | PIPE SOCKET |
| 12 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 13 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
