8291SRM12.12A001

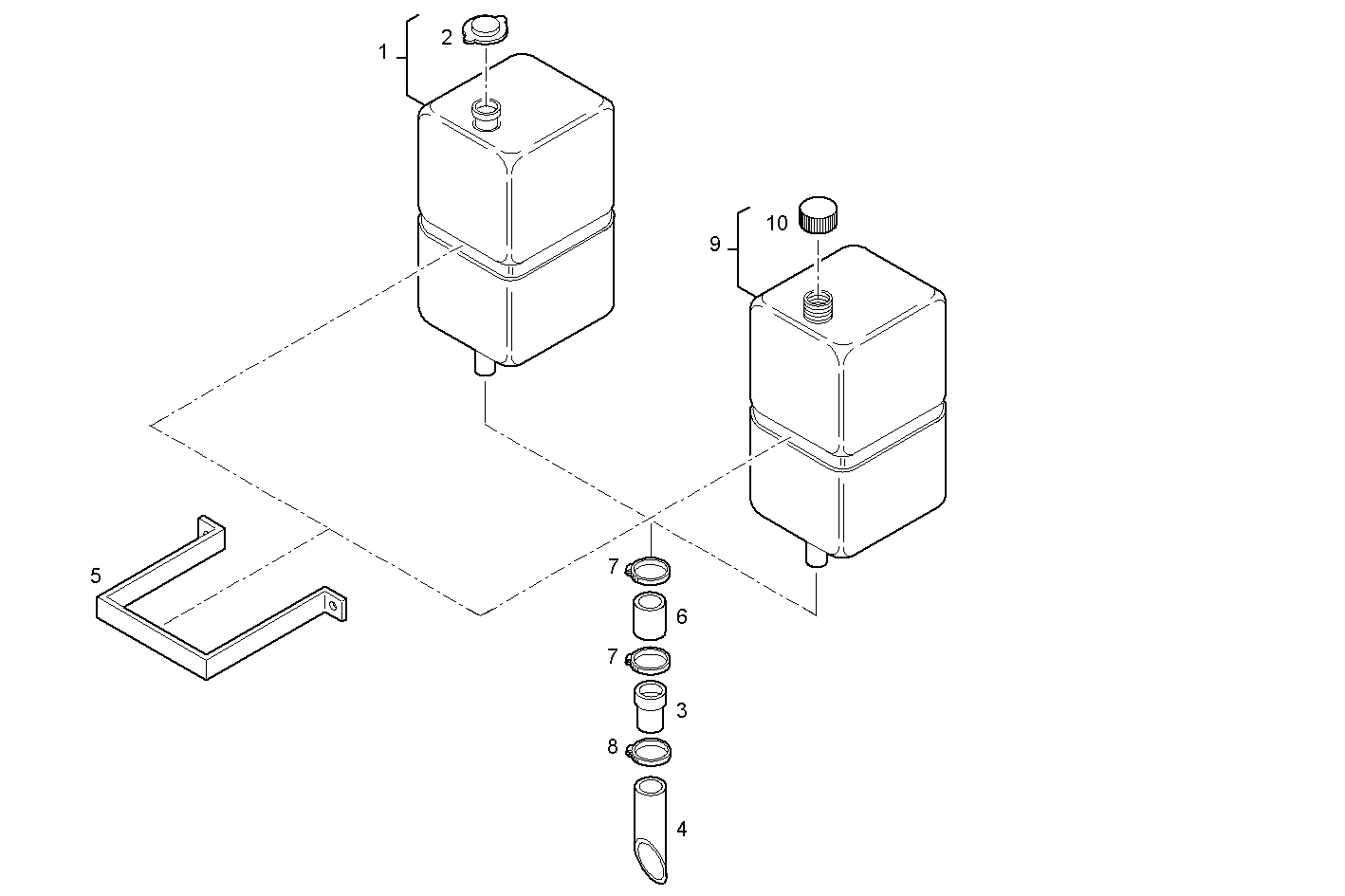

8600.008 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 4652427 | WATER EXPANSION TANK ASSY |
| 2 | 4274033 | PLUG |
| 3 | 4933230 | PIPE SOCKET |
| 4 | 8105750 | WATER PIPE |
| 5 | 4933297 | RETAINER |
| 6 | 98434883 | WATER HOSE [up to ...] |
| 7 | 17764593 | CLIP Ø20/32 MM |
| 8 | 17764293 | CLIP Ø10/16 MM |
| 9 | 8052875 | WATER EXPANSION TANK ASSY |
