8291SRM12.12A001

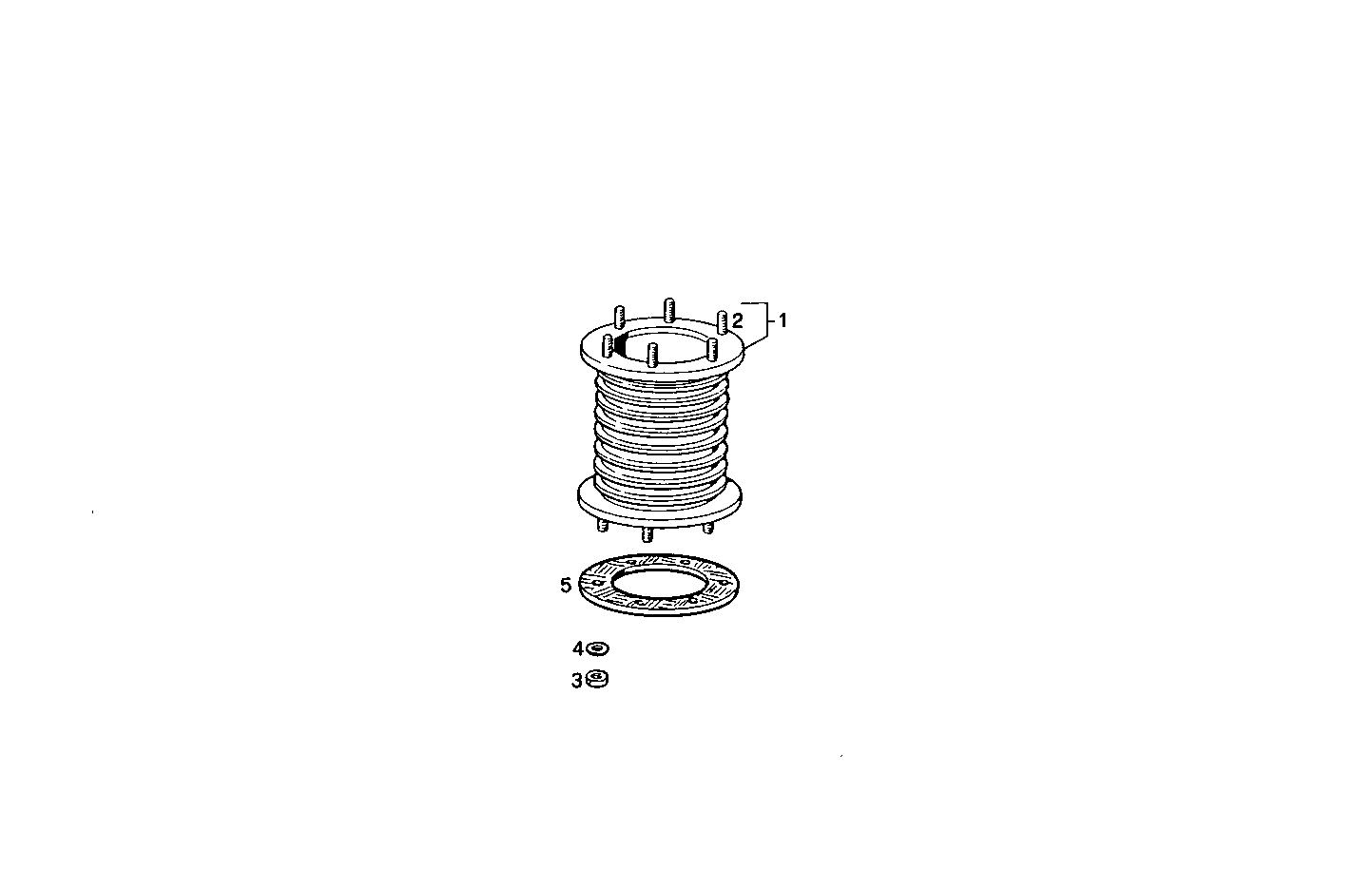

A40030010 UPWARD REAR EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 8016095 | EXHAUST BELLOWS |
| 2 | 16731234 | STUD M10X1,5X25 |
| 3 | 17038121 | HEXAGON NUT M10 |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 8010072 | GASKET |
