8291SRM75.10

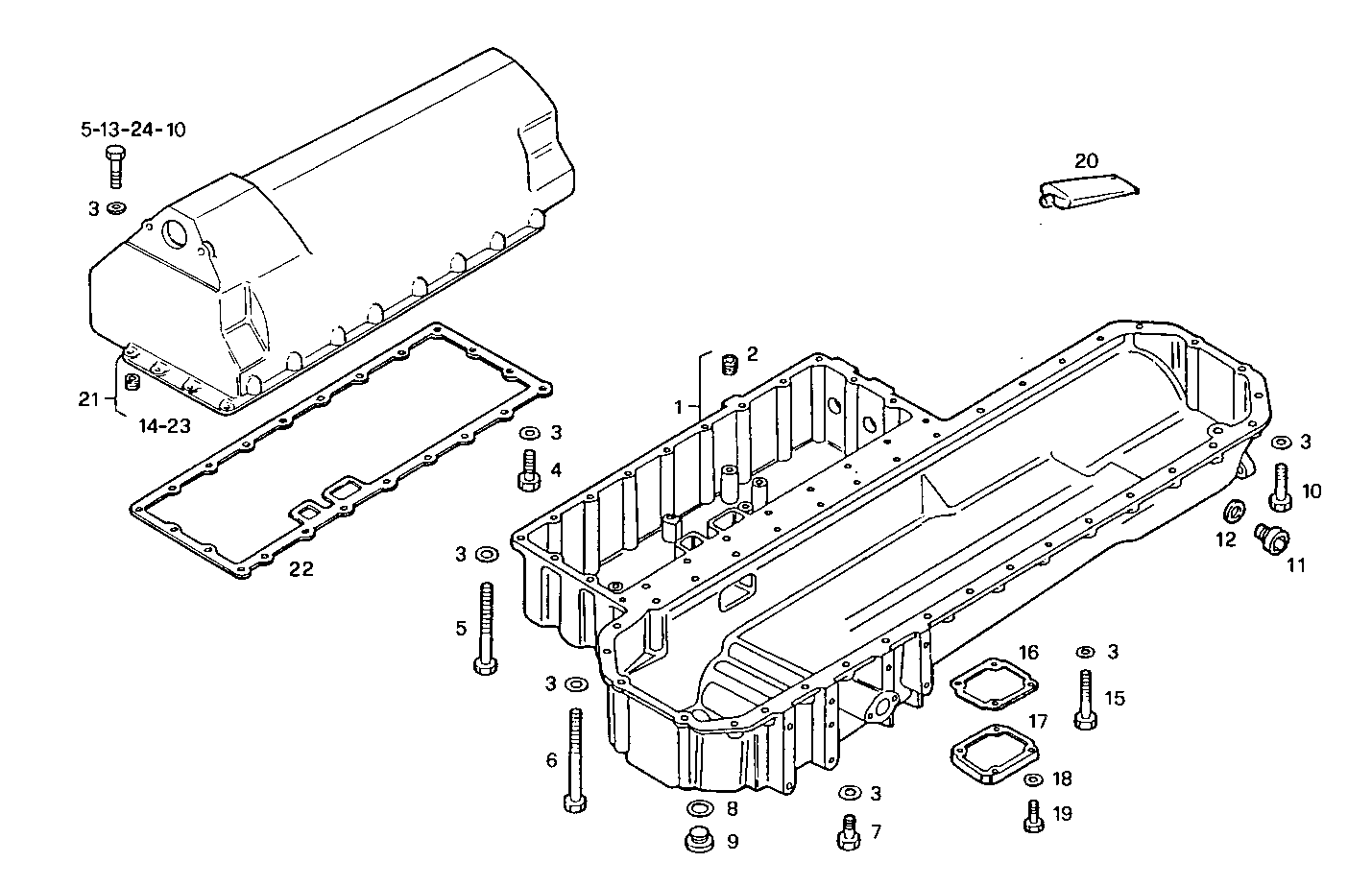

0420.042 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 98434322 OIL SUMP ASSY
2 13582271 THREADED INSERT M8
3 17095004 WASHER Ø10X18X2 MM
4 11234724 HEXAGON BOLT M10X1,25X45 MM
5 15970024 SCREW
6 15973324 SCREW
7 15970924 HEXAGON BOLT M10X1,25X35 MM
8 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
9 10278311 THREADED PLUG M28X1,5
10 11288024 HEXAGON BOLT M10X1,25X60 MM
11 10275011 PLUG M22X1,5
12 16508460 WASHER 22x27x1,5
13 15971321 HEXAGON BOLT M10X1,25X75 MM
14 17873271 THREADED INSERT M8
15 15971624 HEXAGON BOLT M10X1,25X90 MM
16 4790731 GASKET
17 4790730 COVER
18 14496504 WASHER
19 16043724 HEXAGON BOLT M8X28 MM (8.8)
20 1905685 ADHESIVE/STICKER LOCTITE
21 8009260 TANK
22 4793162 GASKET
23 17873471 THREADED INSERT
24 11234721 HEXAGON BOLT M10X1,25X45 MM
