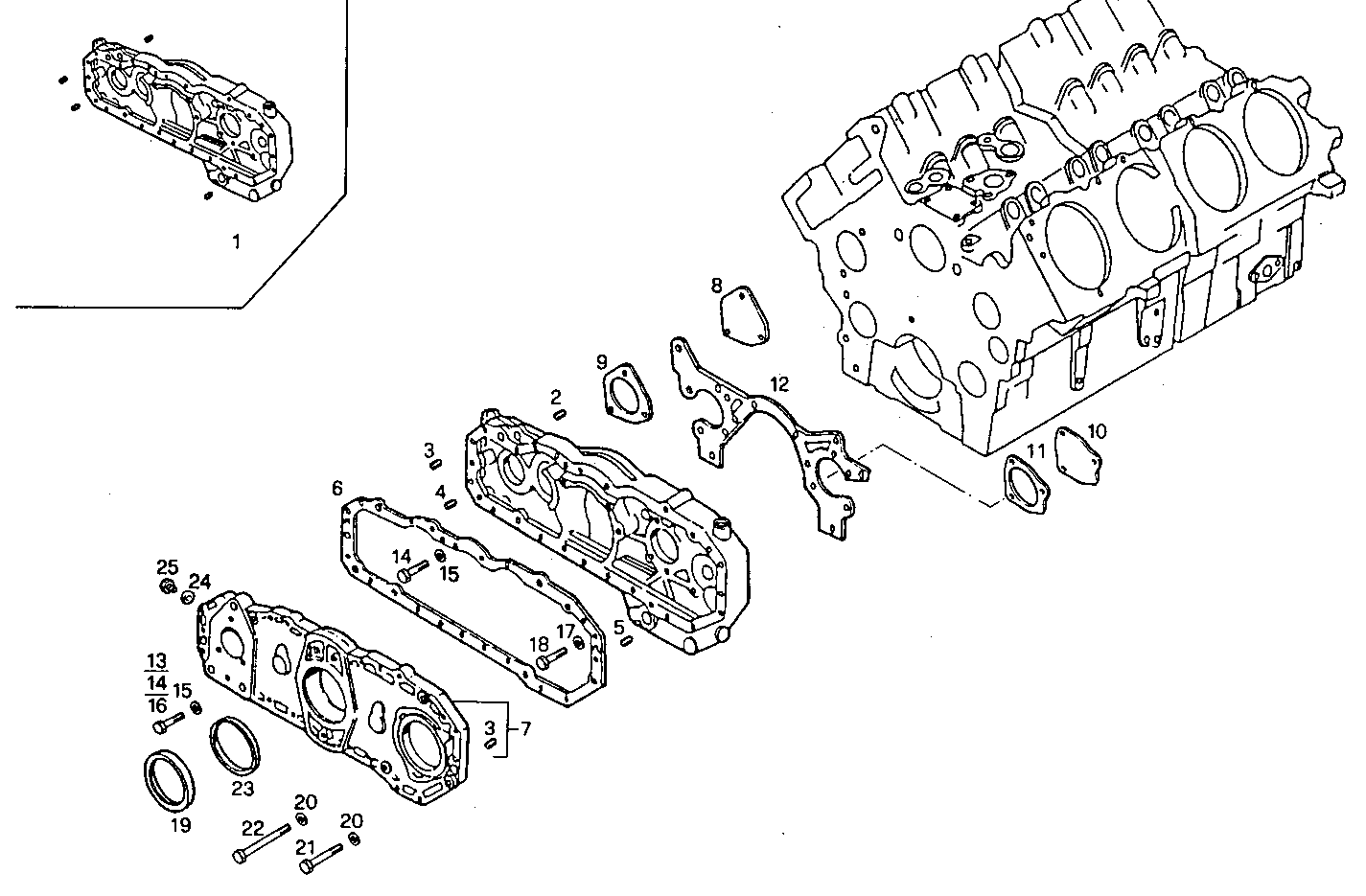

| Item |
Part number |
Description |
|
1 |
8012832 |
TIMINGGEAR HOUSIN ASSY |
|
2 |
17873271 |
THREADED INSERT M8 |
|
3 |
17873371 |
THREADED INSERT M10X1,5 |
|
4 |
17873971 |
THREADED INSERT M16 |
|
5 |
17873471 |
THREADED INSERT |
|
6 |
8009677 |
GASKET |
|
7 |
8009607 |
COVER ASSY |
|
8 |
8009678 |
COVER |
|
9 |
8009679 |
GASKET |
|
10 |
8009680 |
COVER |
|
11 |
8009681 |
GASKET |
|
12 |
4787558 |
GASKET |
|
13 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
14 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
15 |
12646704 |
WASHER Ø8X21X1,5 MM |
|
16 |
16045424 |
SCREW M8X110 MM |
|
17 |
12638604 |
WASHER Ø10X18X2 MM |
|
18 |
11306924 |
HEXAGON BOLT M10X1,25X30 MM |
|
19 |
40101481 |
OIL RETAINER |
|
20 |
12646804 |
WASHER Ø10X25X1,5 MM |
|
21 |
15971824 |
SCREW M10X1,25X100 |
|
22 |
15972224 |
HEXAGON BOLT M10X1,25X120 MM |
|
23 |
4882668 |
OIL RETAINER |
|
24 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
25 |
16992311 |
LOCK PLUG M14X1,5 |
