8291SRM75.10

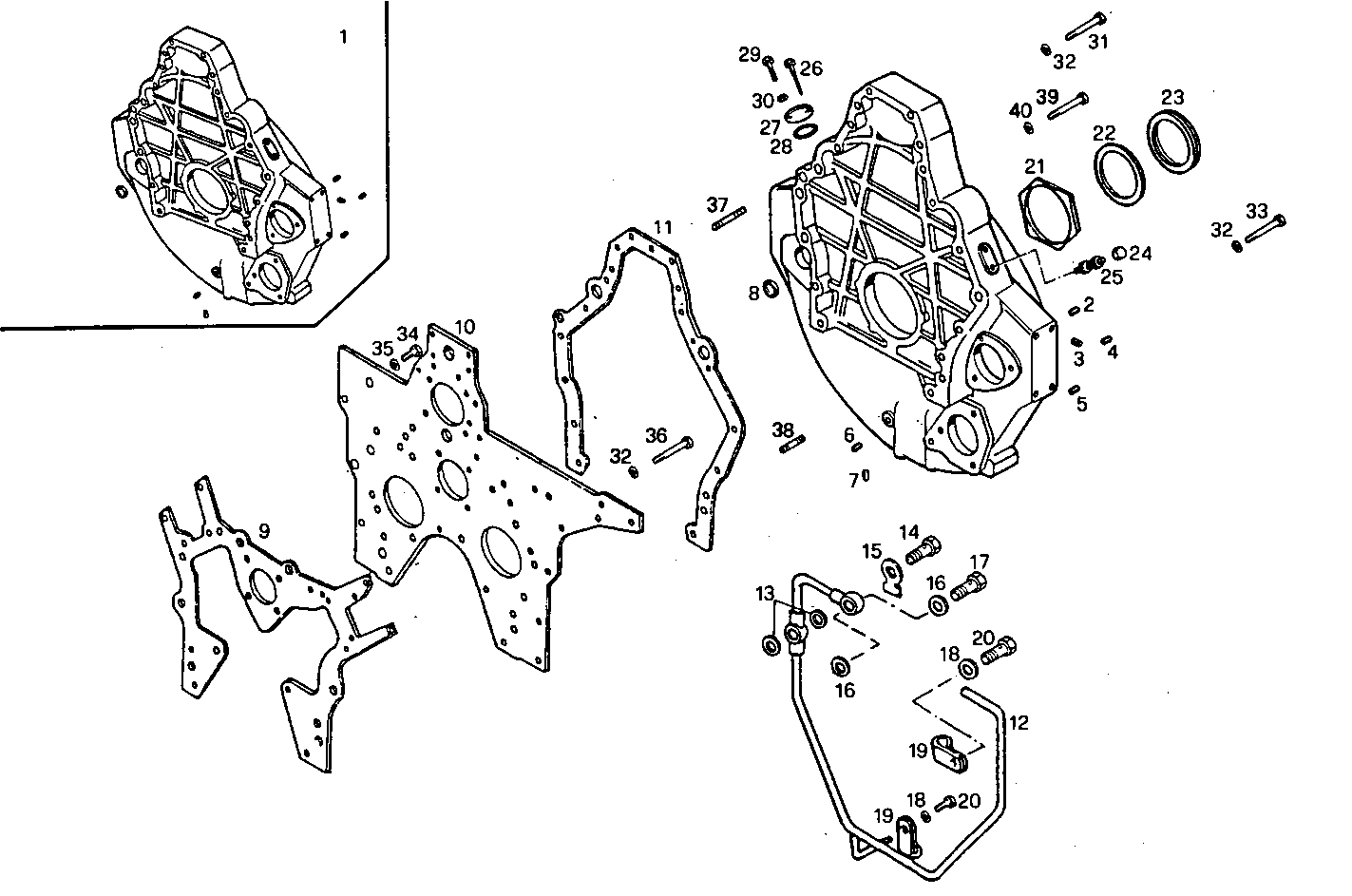

0430.040/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 8009466 FLYWHEEL HOUSING ASSY
2 17873171 THREADED INSERT M6
3 17873271 THREADED INSERT M8
4 17873471 THREADED INSERT
5 17873571 THREADED INSERT
6 17873671 THREADED INSERT M12X1,25
7 17873971 THREADED INSERT M16
8 16991370 LOCK PLUG Ø45 MM
9 4820104 GASKET
10 98434320 PLATE
11 4820103 GASKET
12 4792348 OIL LINE
13 4858606 GASKET Ø10X14X1 MM
14 4503811 SCREW CONNECTOR M10X1,25
15 852409 LOCKING PLATE Ø10,5 MM
16 4858605 WASHER Ø8X12 MM
17 11903714 SCREW CONNECTOR M8
18 13550301 WASHER Ø8,15 MM
19 852410 FASTENING BRACKET
20 16042924 SCREW M8X1,25X10 MM
21 4882671 WASHER
22 4792208 OIL RETAINER
23 40101491 OIL RETAINER
24 8101586 PLUG
25 4931603 PIPE SOCKET
26 8009478 INDICATOR
27 4881253 COVER
28 17289681 O-RING Ø44 MM SP=3,53 MM
29 16605624 HEXAGON BOLT M8X25 MM (8.8)
30 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 15972230 SCREW
32 14496624 WASHER Ø10X21X2 MM
33 15972030 HEXAGON BOLT M10X110 MM
34 14307430 SOCKET-HEAD SCREW M10X1,25X25 MM
35 10569476 WASHER
36 15540930 HEXAGON BOLT M12X1,25X55 MM
37 16748424 STUD M10X20X20
38 16748624 STUD M10X30 MM
39 10943830 SCREW
40 4604279 SPRING WASHER Ø14X32 MM SP=4 MM
