8291SRM75.10

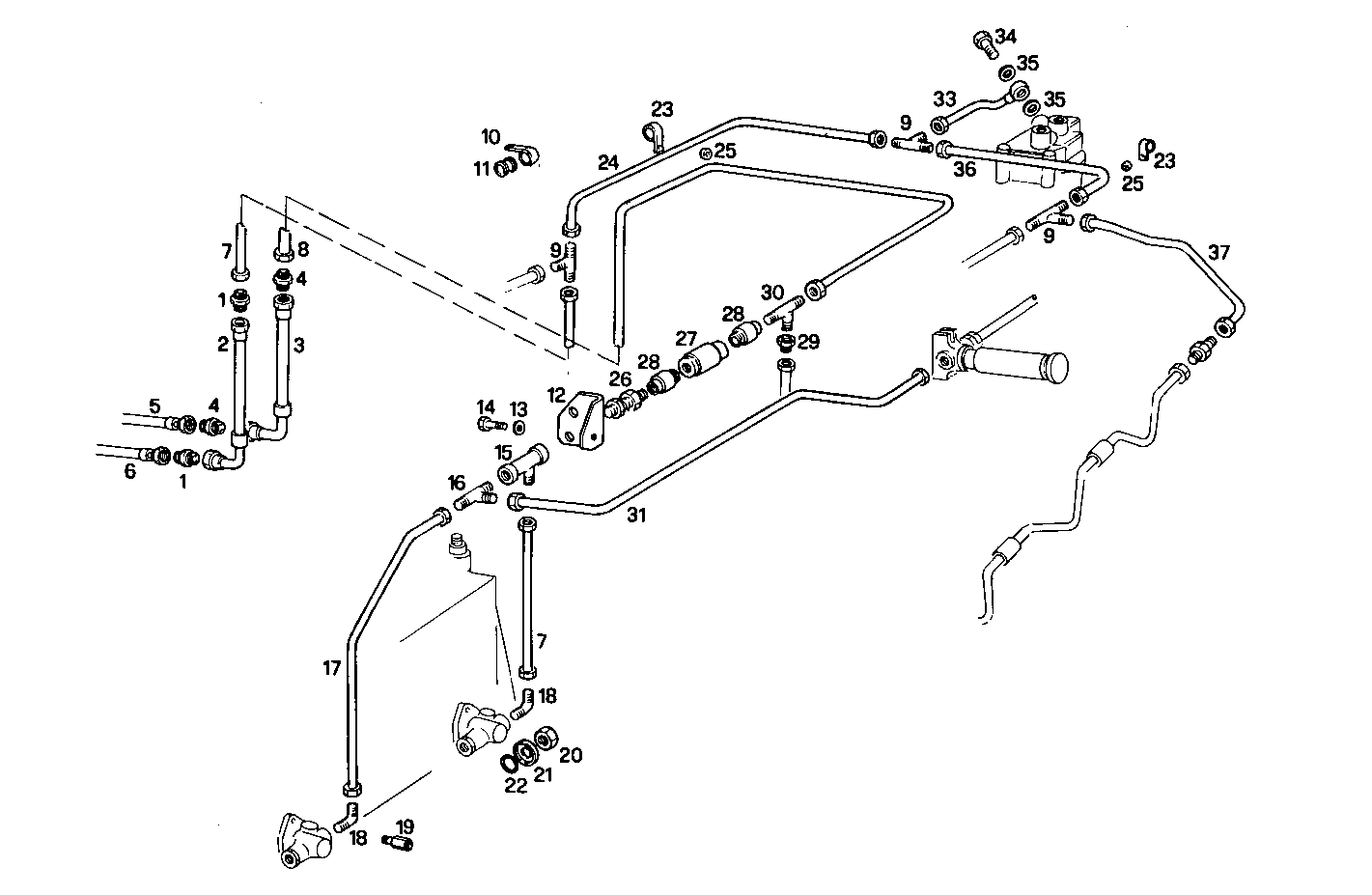

2030.046/01 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8011138 | PIPE SOCKET 1/2''/M16X1,5 |
| 2 | 8112285 | FUEL LINE |
| 3 | 8010406 | FUEL LINE |
| 4 | 8010502 | PIPE SOCKET M22X1,5 |
| 5 | 8011325 | FUEL LINE |
| 6 | 8011326 | FUEL LINE |
| 7 | 8010385 | FUEL LINE |
| 8 | 8010383 | FUEL LINE |
| 9 | 16505214 | T-COUPLING |
| 10 | 4763804 | FASTENING BRACKET |
| 11 | 4757122 | RUBBER PAD |
| 12 | 8011135 | RETAINER |
| 13 | 17090174 | SPRING WASHER Ø10X20 MM |
| 14 | 15970521 | HEXAGON BOLT M10X20 MM |
| 15 | 8011303 | PIPE SOCKET |
| 16 | 16504711 | T-COUPLING |
| 17 | 8011300 | FUEL LINE |
| 18 | 8006222 | PIPE SOCKET [from 05-92] |
| 19 | 8113637 | SPACING BAR |
| 20 | 16508711 | NUT M14X1,5 [from 05-92] |
| 21 | 8006339 | CAP |
| 22 | 17281581 | O-RING Ø12,37X2,62 MM |
| 23 | 17310590 | CLIP |
| 24 | 8010401 | FUEL LINE |
| 25 | 17816214 | SPACER Ø10X8,5X18 MM |
| 26 | 8011242 | PIPE SOCKET |
| 27 | 8011241 | VALVE 1/2'' |
| 28 | 8011304 | PIPE SOCKET |
| 29 | 8011305 | PIPE SOCKET |
| 30 | 16509511 | T-COUPLING |
| 31 | 8011302 | FUEL LINE |
| 33 | 8010391 | FUEL LINE |
| 34 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 35 | 98474308 | SEAL GASKET Ø14X22 MM |
| 36 | 8010392 | FUEL LINE |
| 37 | 8010400 | FUEL LINE |
