8291SRM75.10

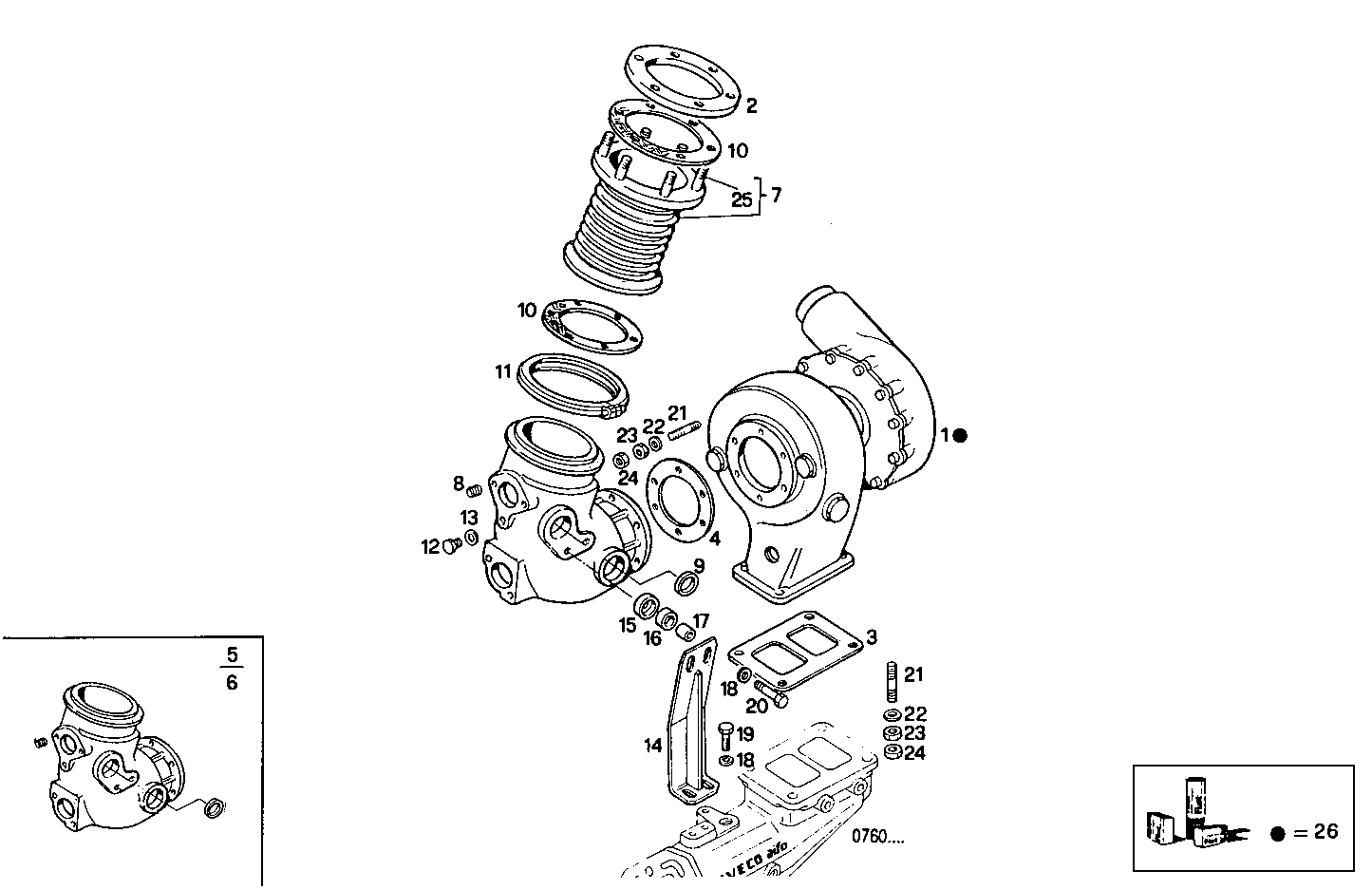

2400.042 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8010371 | TURBOCHARGER ASSY HOLSET |
| 2 | 8010113 | FLANGE |
| 3 | 4512366 | GASKET |
| 4 | 42075987 | GASKET |
| 5 | 8009933 | EXHAUST ELBOW LEFT |
| 6 | 8009935 | EXHAUST ELBOW RIGHT |
| 7 | 8010070 | HOSE ASSY |
| 8 | 17873271 | THREADED INSERT M8 |
| 9 | 16991370 | LOCK PLUG Ø45 MM |
| 10 | 8010072 | GASKET |
| 11 | 4886025 | CLIP |
| 12 | 16992211 | THREADED PLUG M12X1,5 |
| 13 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 14 | 8010115 | RETAINER |
| 15 | 4023904 | CAP |
| 16 | 4023905 | DOWEL |
| 17 | 4617262 | SPACING BAR |
| 18 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 19 | 16605424 | SCREW M8X16 MM (8.8) |
| 20 | 16605824 | HEXAGON BOLT M8X35 MM |
| 21 | 16731334 | STUD M10X30 |
| 22 | 16665614 | WASHER Ø10,5 MM |
| 23 | 17038131 | HEXAGON NUT M10 |
| 24 | 16979831 | NUT |
| 25 | 16761234 | STUD |
| 26 | 8092233 | KIT-TURBOCHARGER |
