8291SRM75.10

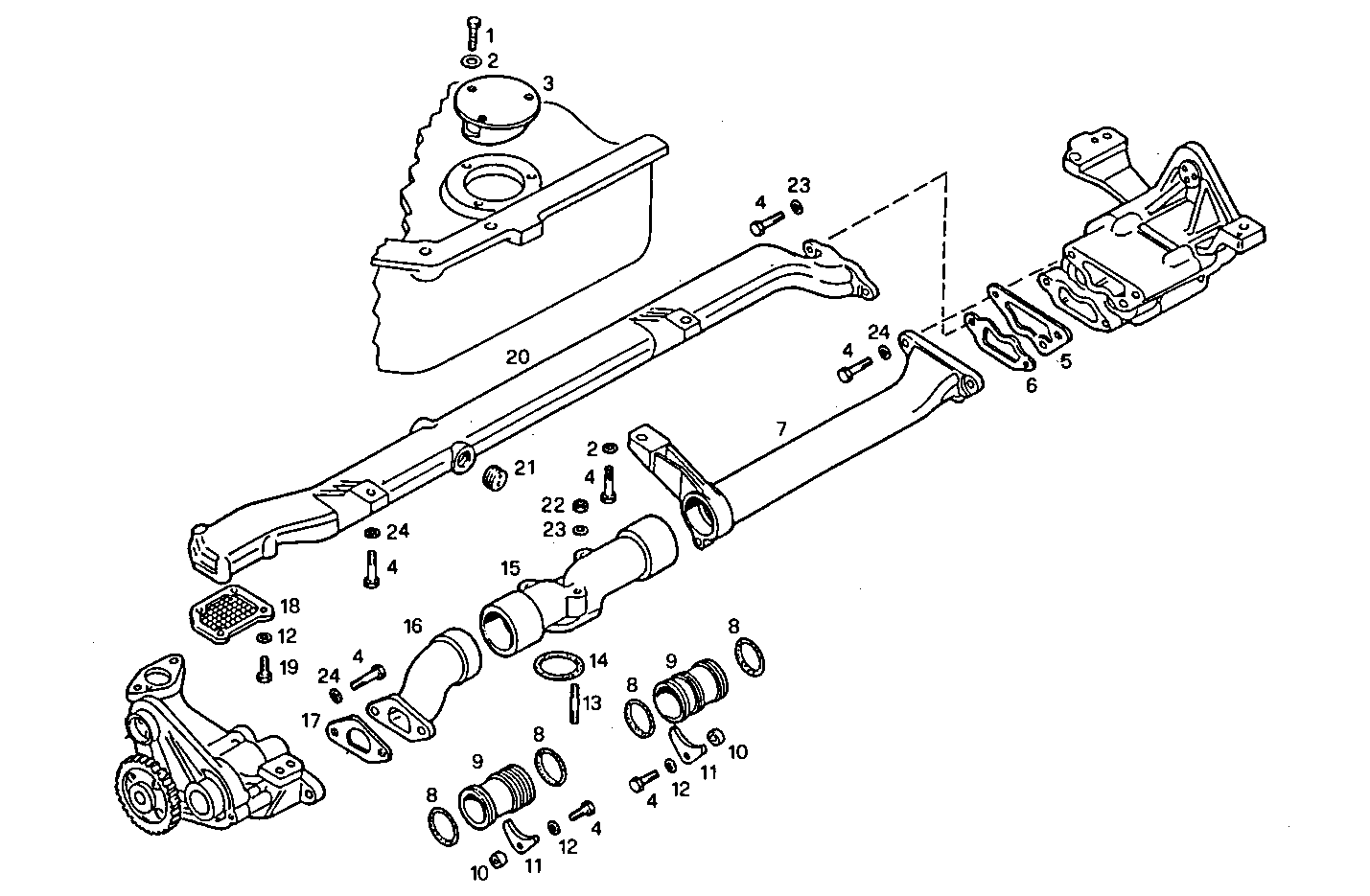

3010.065/01 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 10902024 | SCREW M6X12 MM |
| 2 | 14496404 | WASHER |
| 3 | 4862141 | STRAINER |
| 4 | 16043724 | HEXAGON BOLT M8X28 MM (8.8) |
| 5 | 4786892 | GASKET |
| 6 | 4786891 | GASKET |
| 7 | 4781868 | OIL LINE |
| 8 | 14464480 | O-RING Ø50,39 MM SP=3,53 MM |
| 9 | 4782002 | CONNECTOR SLEEVE |
| 10 | 4791744 | SPACING BAR |
| 11 | 4781992 | PLATE |
| 12 | 14496504 | WASHER |
| 13 | 13543924 | STUD M8X16X45 MM |
| 14 | 14459681 | WASHER |
| 15 | 4782015 | OIL LINE |
| 16 | 4782009 | SUCTION LINE |
| 17 | 4786890 | GASKET |
| 18 | 4786887 | STRAINER |
| 19 | 4813688 | SCREW |
| 20 | 4863228 | OIL SUCTION PIPE |
| 21 | 10269950 | LOCK PLUG M28X1,5 |
| 22 | 17037931 | HEXAGON NUT M8X1,25 |
| 23 | 12646704 | WASHER Ø8X21X1,5 MM |
| 24 | 12646724 | WASHER Ø8X21X1,5 MM |
