8291SRM75.10

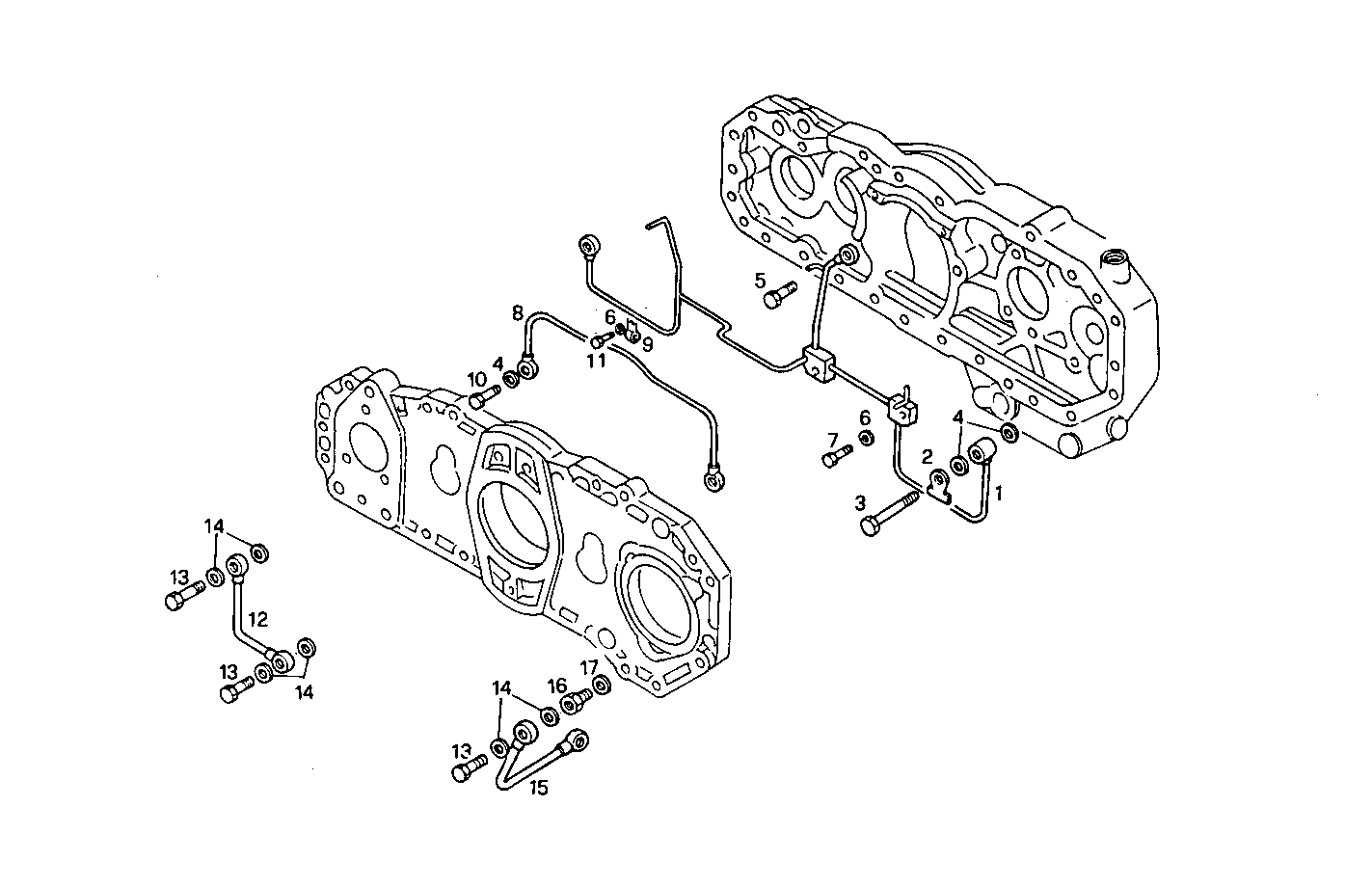

3010.065/04 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8009770 | OIL LINE |
| 2 | 852409 | LOCKING PLATE Ø10,5 MM |
| 3 | 4791491 | SCREW CONNECTOR |
| 4 | 4858606 | GASKET Ø10X14X1 MM |
| 5 | 4795453 | SCREW CONNECTOR |
| 6 | 12639704 | WASHER |
| 7 | 10902124 | SCREW M6X14 MM |
| 8 | 8009769 | OIL LINE |
| 9 | 4791489 | CLIP |
| 10 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 11 | 16603824 | SCREW M6X25 |
| 12 | 8010513 | OIL LINE |
| 13 | 98429224 | SCREW CONNECTOR |
| 14 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 15 | 8010512 | OIL LINE |
| 16 | 8010511 | PIPE SOCKET |
| 17 | 16508460 | WASHER 22x27x1,5 |
