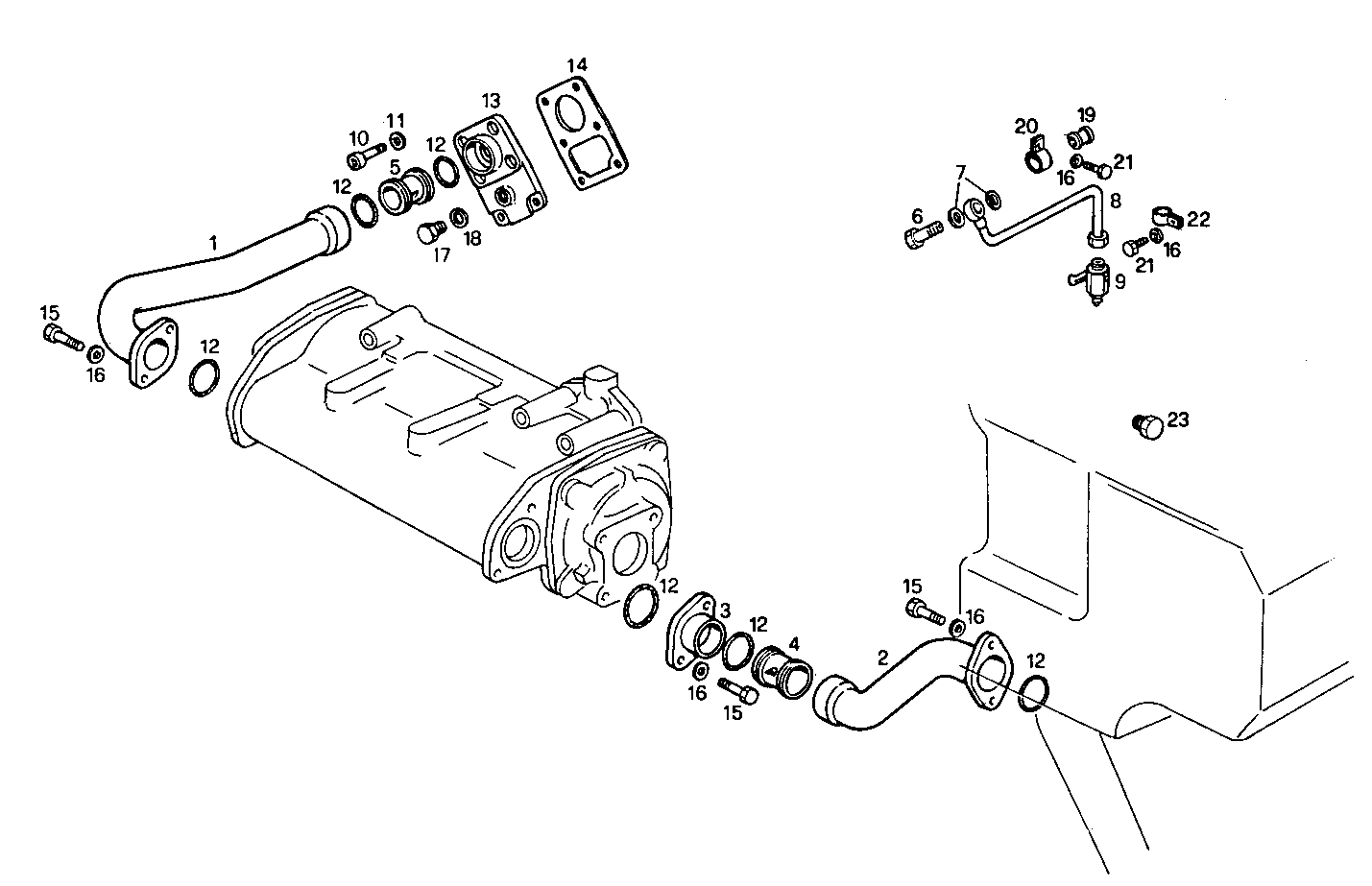

| Item |
Part number |
Description |
|
1 |
8009593 |
WATER PIPE |
|
2 |
8009630 |
WATER PIPE |
|
3 |
8009632 |
FLANGE |
|
4 |
8009637 |
WATER PIPE L=50 MM |
|
5 |
8112496 |
CONNECTION L=90 MM |
|
6 |
98429924 |
SCREW CONNECTOR |
|
7 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
8 |
8011182 |
WATER PIPE |
|
9 |
8113932 |
DRAIN COCK |
|
10 |
16690724 |
CYLIND-HEAD SCREW M8X30 MM |
|
11 |
17101534 |
SPRING WASHER Ø8 MM |
|
12 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
13 |
8009895 |
WATER PIPE |
|
14 |
8101855 |
GASKET |
|
15 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
16992324 |
PLUG |
|
18 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
19 |
4626900 |
CLIP |
|
20 |
4755963 |
FASTENING BRACKET |
|
21 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
22 |
8107203 |
RETAINER |
|
23 |
10268404 |
PLUG |
