8291SRM75.10

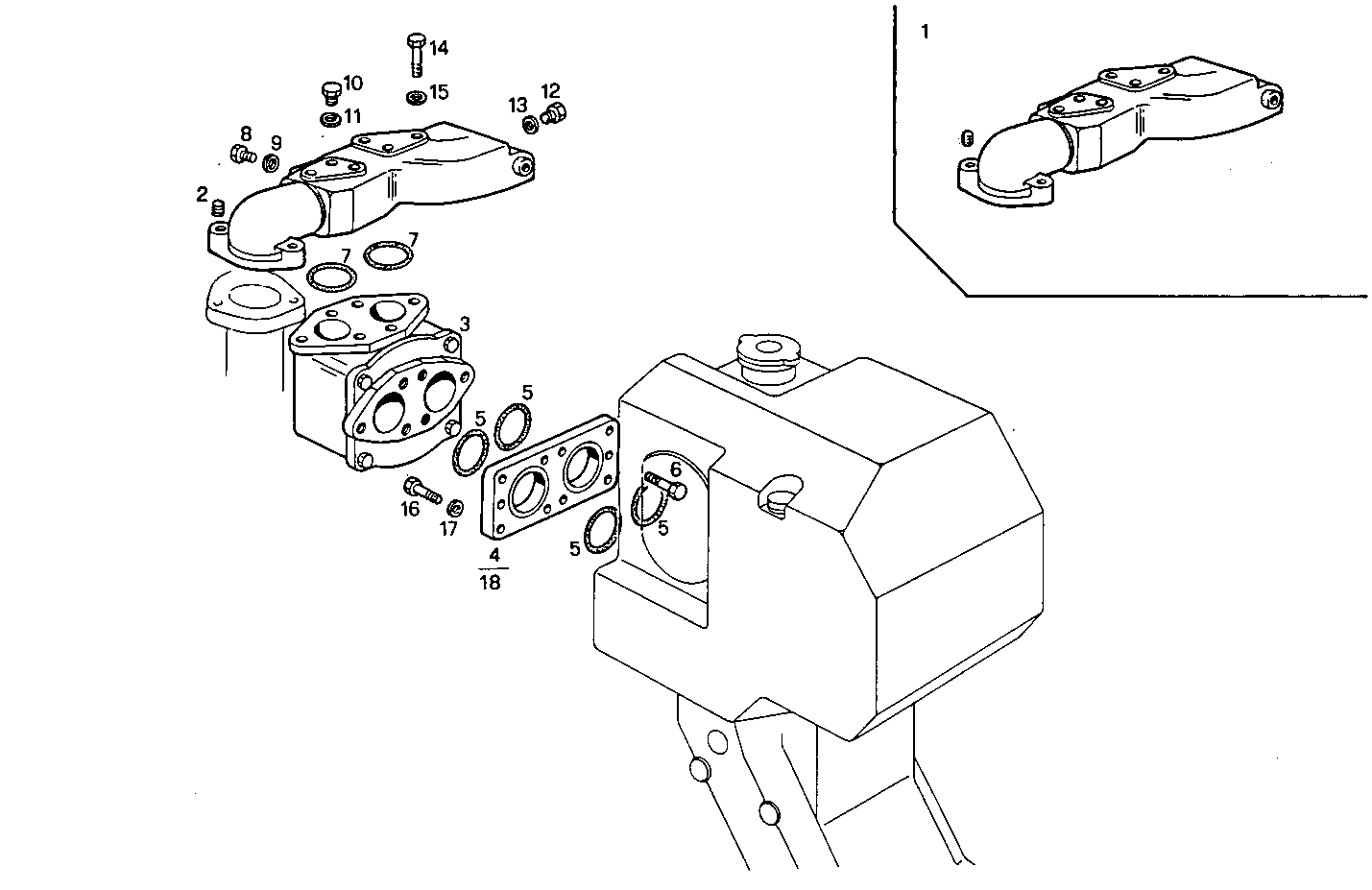

3220.022 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 8009164 WATER CONVEYOR ASSY
2 17873271 THREADED INSERT M8
3 8006402 THERMOSTAT ASSY
4 8007161 FLANGE
5 17285181 O-RING Ø69,52 MM SP=2,62 MM
6 16692124 CYLIND-HEAD SCREW M10X25 MM (8.8)
7 17289681 O-RING Ø44 MM SP=3,53 MM
8 16992640 PLUG M22X1,5
9 10263460 WASHER Ø22X28X1,5 MM
10 16992440 THREADED PLUG M16X1,5
11 4858609 WASHER Ø16X22 MM SP=1,5 MM
12 4854394 WIRE/CABLE
13 11271460 GASKET Ø21X26X1,5 MM
14 16045121 HEXAGON BOLT M8X95 MM
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 16607824 HEXAGON BOLT M10X35 MM (8.8)
17 17090174 SPRING WASHER Ø10X20 MM
18 8017534 FLANGE
