8291SRM75.10

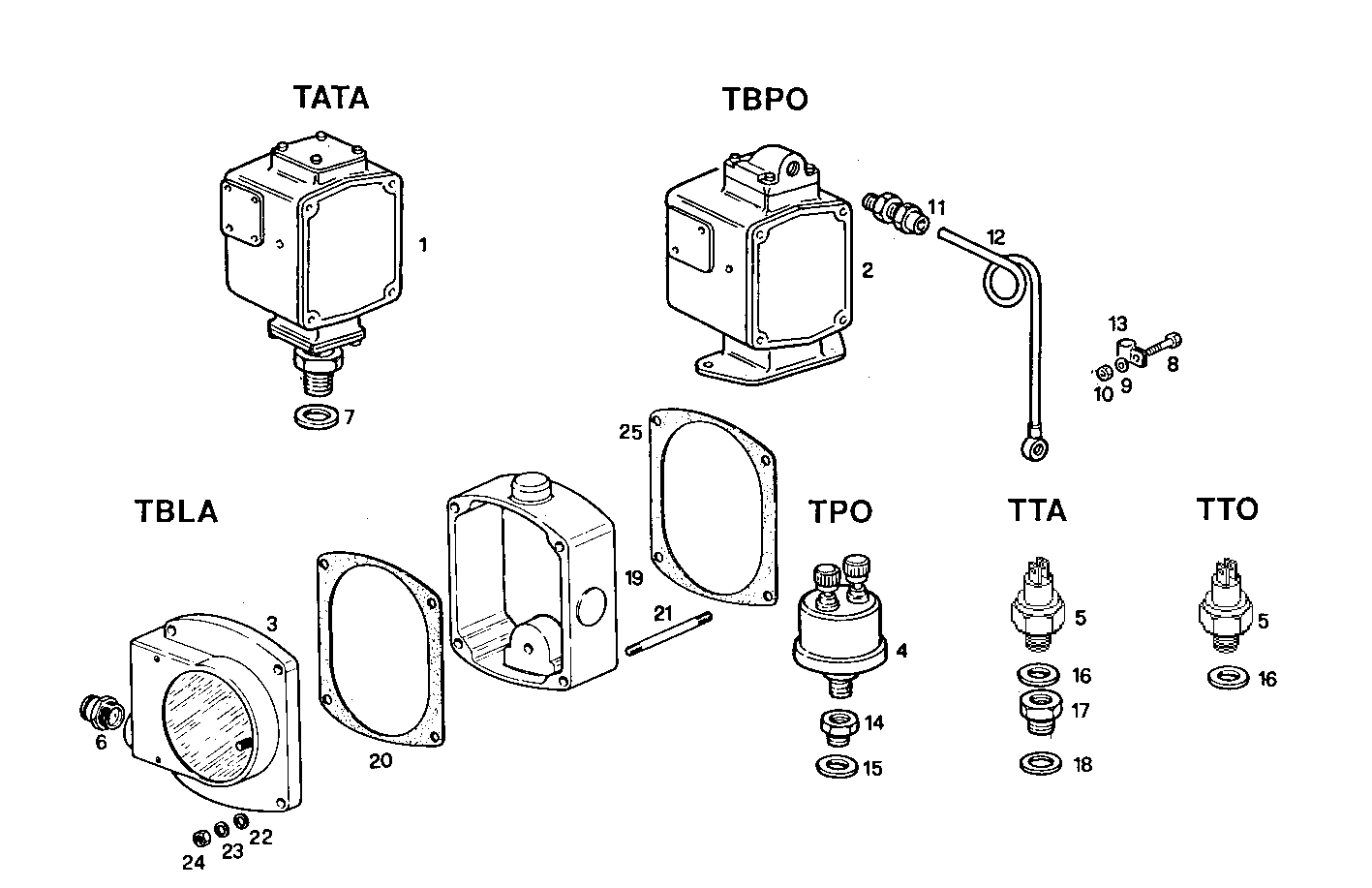

5610.003 INSTRUMENTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8110742 | TRANSMITTER |
| 2 | 8110741 | TRANSMITTER TBPO |
| 3 | 8111117 | TRANSMITTER |
| 4 | 8100417 | TRANSMITTER TPO |
| 5 | 8100418 | TRANSMITTER TTA |
| 6 | 8113194 | CONNECTION [up to 08-94] |
| 7 | 11271460 | GASKET Ø21X26X1,5 MM |
| 8 | 16603721 | HEXAGON BOLT M6X20 MM |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 17037821 | HEXAGON NUT M6X1 |
| 11 | 8111316 | PIPE SOCKET |
| 12 | 8010936 | OIL LINE |
| 13 | 17310201 | RETAINER |
| 14 | 8011514 | THREADED UNION |
| 15 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 16 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 17 | 4927760 | PIPE SOCKET M22X1,5 |
| 18 | 16508460 | WASHER 22x27x1,5 |
| 19 | 8014443 | BEARING HOUSING |
| 20 | 8015975 | FLAT ENGINE GASKET |
| 21 | 8014441 | STUD |
| 22 | 17094504 | WASHER Ø5,3X10 MM |
| 23 | 17101334 | SPRING WASHER Ø5 MM |
| 24 | 17037721 | NUT M5X0,8 |
| 25 | 8014440 | GASKET |
