8291SRM75.11

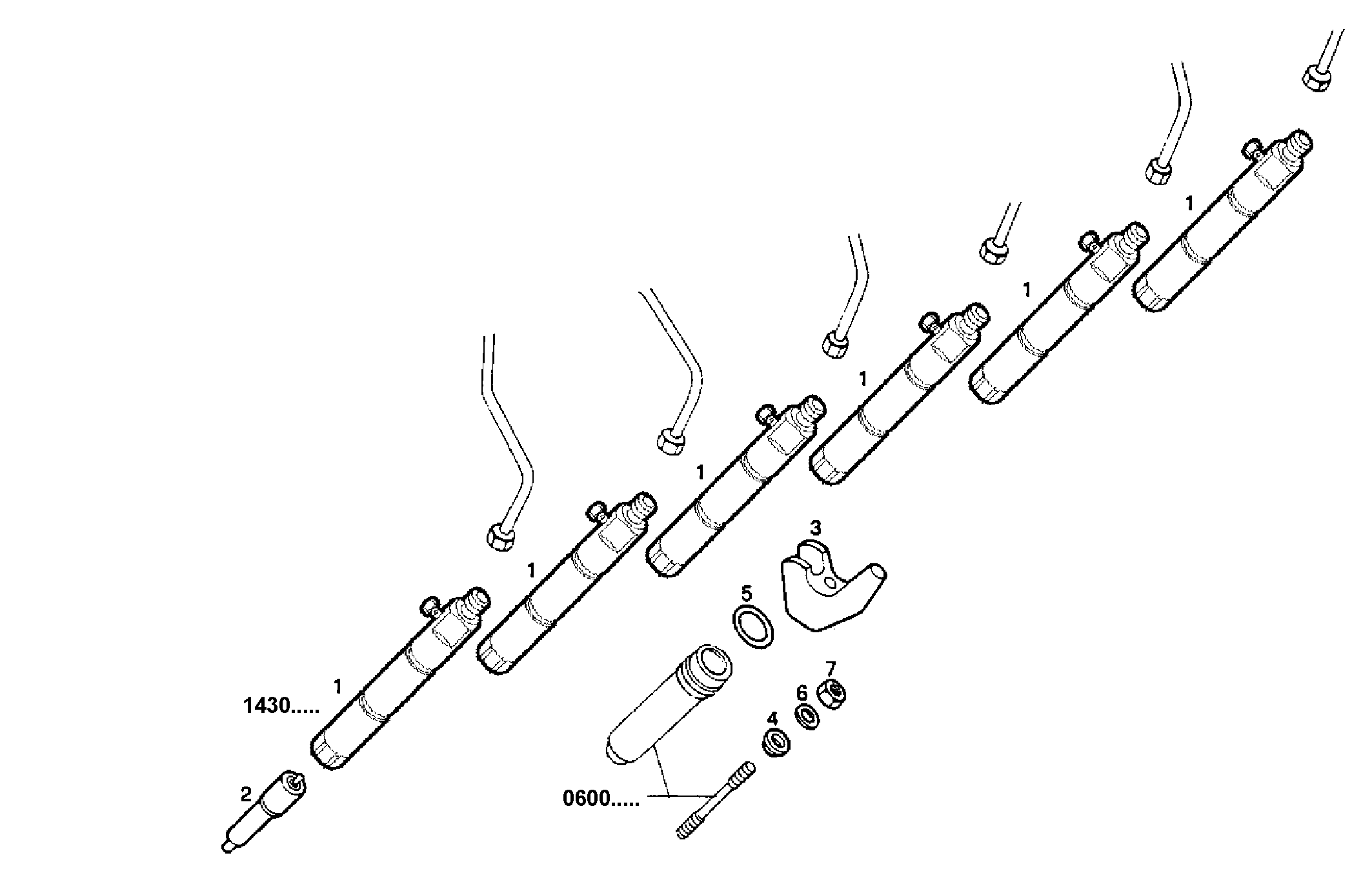

1420.032 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 4845628 | NOZZLE HOLDER WEBER ALTECNA |
| 2 | 4772223 | FUEL NOZZLE |
| 3 | 4825501 | FASTENING BRACKET |
| 4 | 4700162 | WASHER Ø11,5 MM |
| 5 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 16979721 | NUT M10X1,25 |
