8291SRM75.11

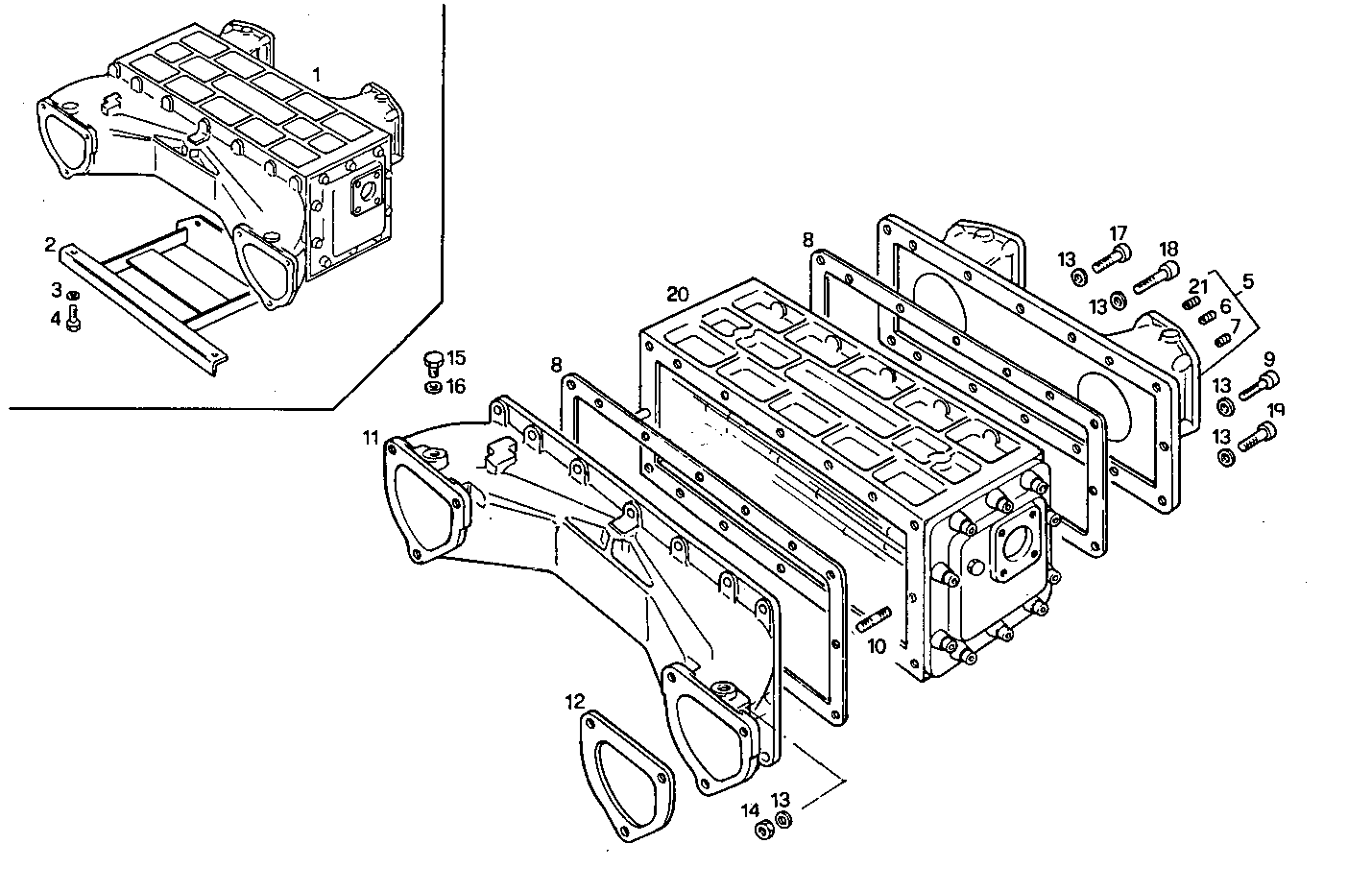

2460.011 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 8013972 AIR/WATER HEAT EXCHANGER ASSY
2 8009682 RETAINER
3 17090174 SPRING WASHER Ø10X20 MM
4 16607624 SCREW M10X25
5 8010076 AIR HOOD ASSY
6 17873271 THREADED INSERT M8
7 17873371 THREADED INSERT M10X1,5
8 8008906 GASKET
9 8114205 AIR/WATER HEAT EXCHANGER
10 16729324 STUD M8X12X20 MM
11 8103019 AIR HOOD
12 4786886 GASKET
13 17094914 WASHER 8x16
14 17037931 HEXAGON NUT M8X1,25
15 16992311 LOCK PLUG M14X1,5
16 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
17 16605824 HEXAGON BOLT M8X35 MM
18 16605734 HEXAGON BOLT M8X30 MM
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 17873571 THREADED INSERT
