8291SRM75.12

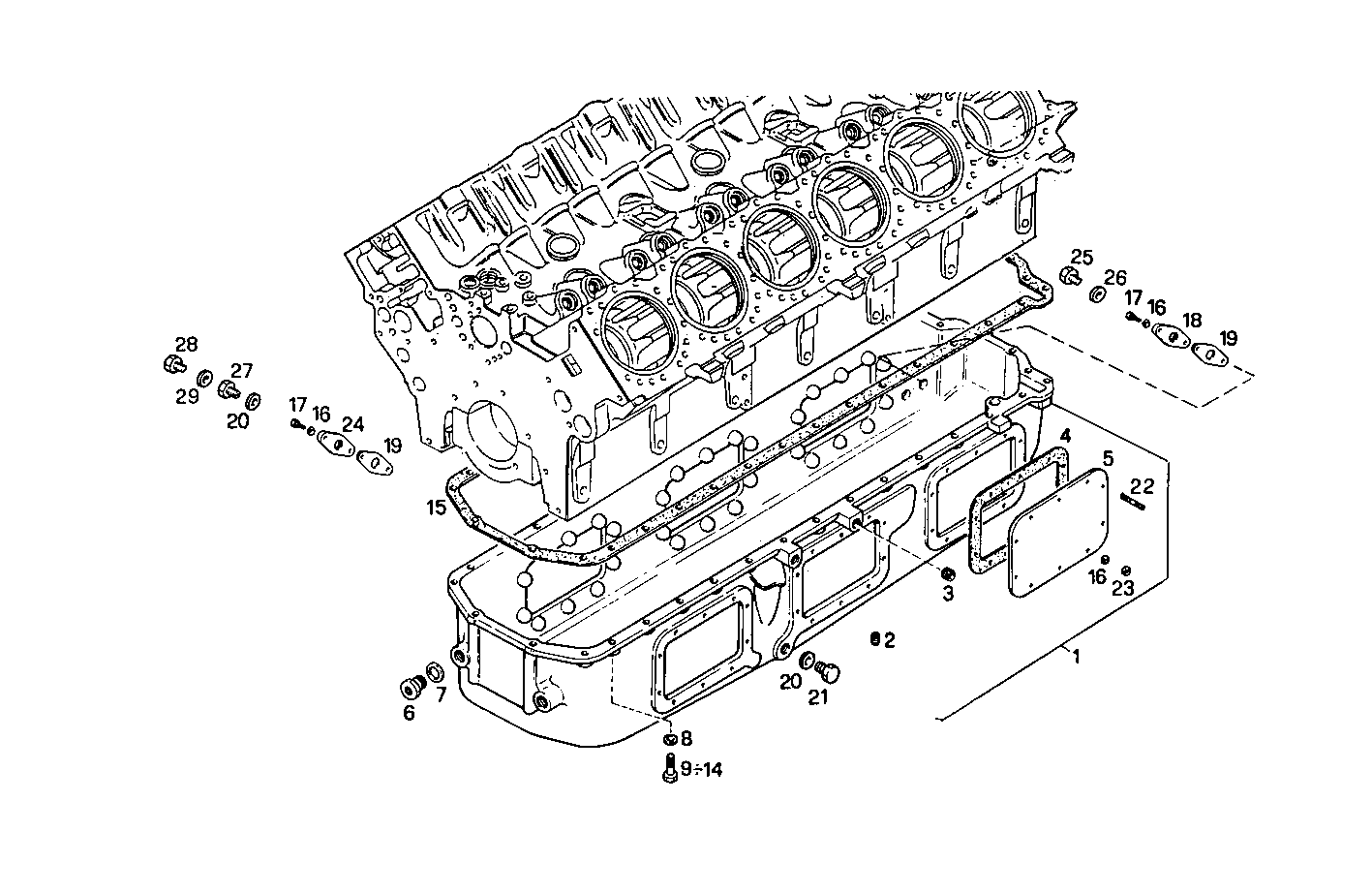

0420.080 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 8014800 OIL SUMP ASSY
2 17873271 THREADED INSERT M8
3 17873571 THREADED INSERT
4 8013554 GASKET
5 8013553 COVER
6 8012859 PIPE SOCKET
7 98429282 SEAL GASKET Ø26X33 MM SP=1,5 MM
8 17095004 WASHER Ø10X18X2 MM
9 15970921 HEXAGON BOLT M10X1,25X35 MM
10 11234721 HEXAGON BOLT M10X1,25X45 MM
11 11288024 HEXAGON BOLT M10X1,25X60 MM
12 15971321 HEXAGON BOLT M10X1,25X75 MM
13 15005924 HEXAGON BOLT M10X1,25X150 MM
14 15973321 SCREW M10X1,25X175
15 8014700 OIL SUMP GASKET
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 16605624 HEXAGON BOLT M8X25 MM (8.8)
18 8020774 FLANGE
19 4889988 GASKET
20 11271460 GASKET Ø21X26X1,5 MM
21 4584394 PLUG 1/2''
22 16746524 STUD M8X16X16
23 17037931 HEXAGON NUT M8X1,25
24 8014037 FLANGE
25 16992311 LOCK PLUG M14X1,5
26 4858608 SEAL GASKET dia.14x19,5x1,5
27 8011519 PIPE SOCKET
28 8014089 PLUG
29 16528060 WASHER Ø33X39 MM SP=2 MM
