8291SRM75.12

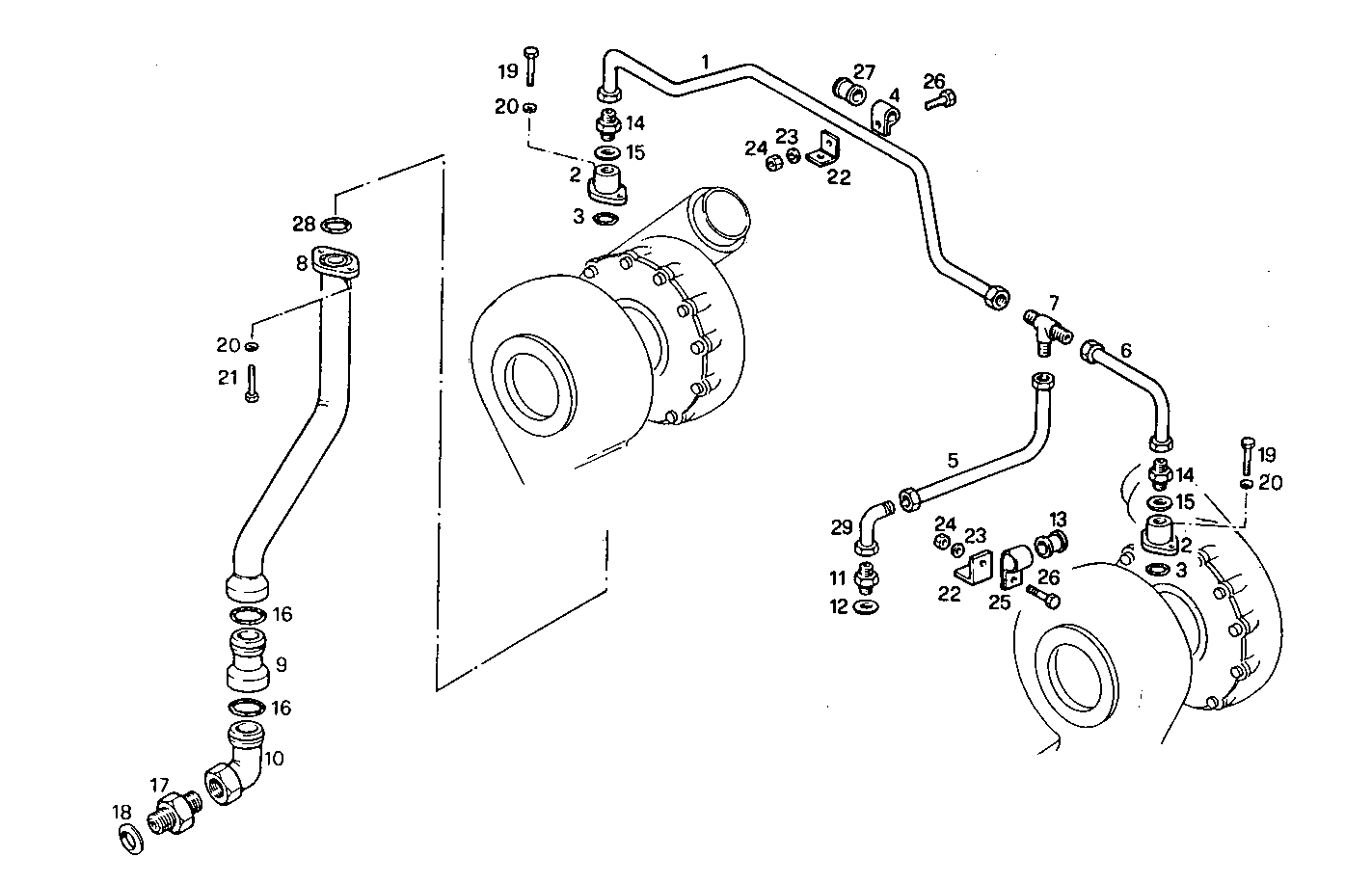

3010.067/01 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 8016111 OIL LINE
2 8011269 FLANGE
3 4859840 O-RING
4 4755963 FASTENING BRACKET
5 8010125 OIL LINE
6 8016110 OIL LINE
7 4741608 T-COUPLING
8 8016112 OIL LINE
9 8010542 PIPE SOCKET
10 8010543 PIPE SOCKET
11 8010546 PIPE SOCKET
12 4858610 WASHER Ø18X24 MM SP=1,5 MM
13 4757122 RUBBER PAD
14 16500311 PIPE SOCKET M16X1,5/M18X1,5
15 4858609 WASHER Ø16X22 MM SP=1,5 MM
16 17289081 O-RING Ø31,34X3,53 MM
17 16527914 PIPE SOCKET
18 16528060 WASHER Ø33X39 MM SP=2 MM
19 16692124 CYLIND-HEAD SCREW M10X25 MM (8.8)
20 17090174 SPRING WASHER Ø10X20 MM
21 16607624 SCREW M10X25
22 8100819 RETAINER
23 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
24 17037931 HEXAGON NUT M8X1,25
25 4810595 FASTENING BRACKET
26 16605524 HEXAGON BOLT M8X20 MM
27 4755964 RUBBER PAD
28 17288981 O-RING Ø29,74 MM SP=3,53 MM
29 16512111 PIPE SOCKET
