8291SRM75.12

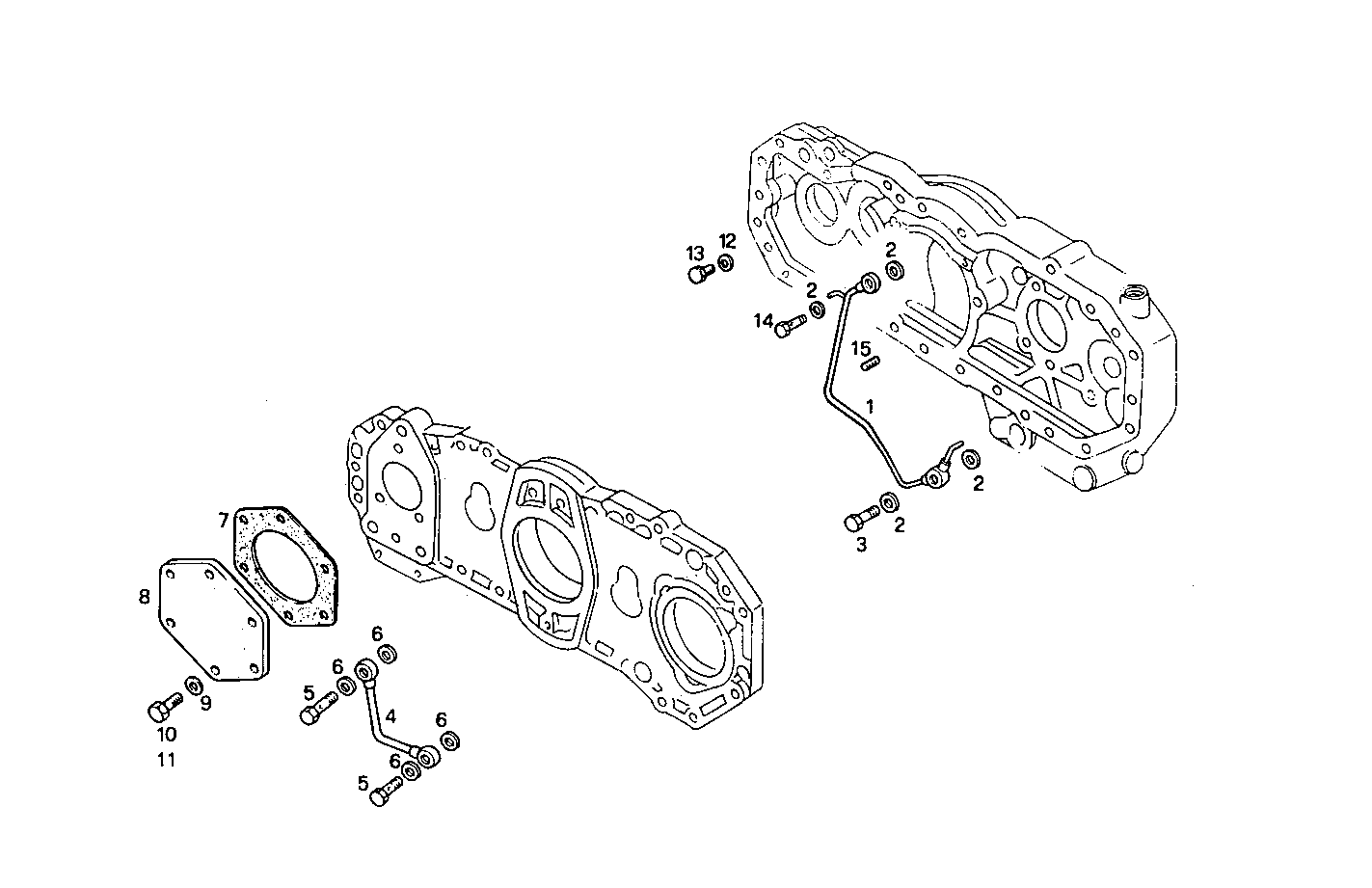

3010.067/02 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8013907 | OIL LINE |
| 2 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 3 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 4 | 8013966 | OIL LINE |
| 5 | 4864084 | BANJO BOLT M16X1,5 |
| 6 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 7 | 8014125 | GASKET |
| 8 | 8013974 | COVER |
| 9 | 17095104 | WASHER Ø10X21X2 MM |
| 10 | 16607624 | SCREW M10X25 |
| 11 | 16608324 | HEXAGON BOLT M10X1,5X60 MM |
| 12 | 4858606 | GASKET Ø10X14X1 MM |
| 13 | 16992111 | THREADED PLUG M10X1 |
| 14 | 4795453 | SCREW CONNECTOR |
| 15 | 17436774 | THREADED INSERT M6 |
