8291SRM75.31

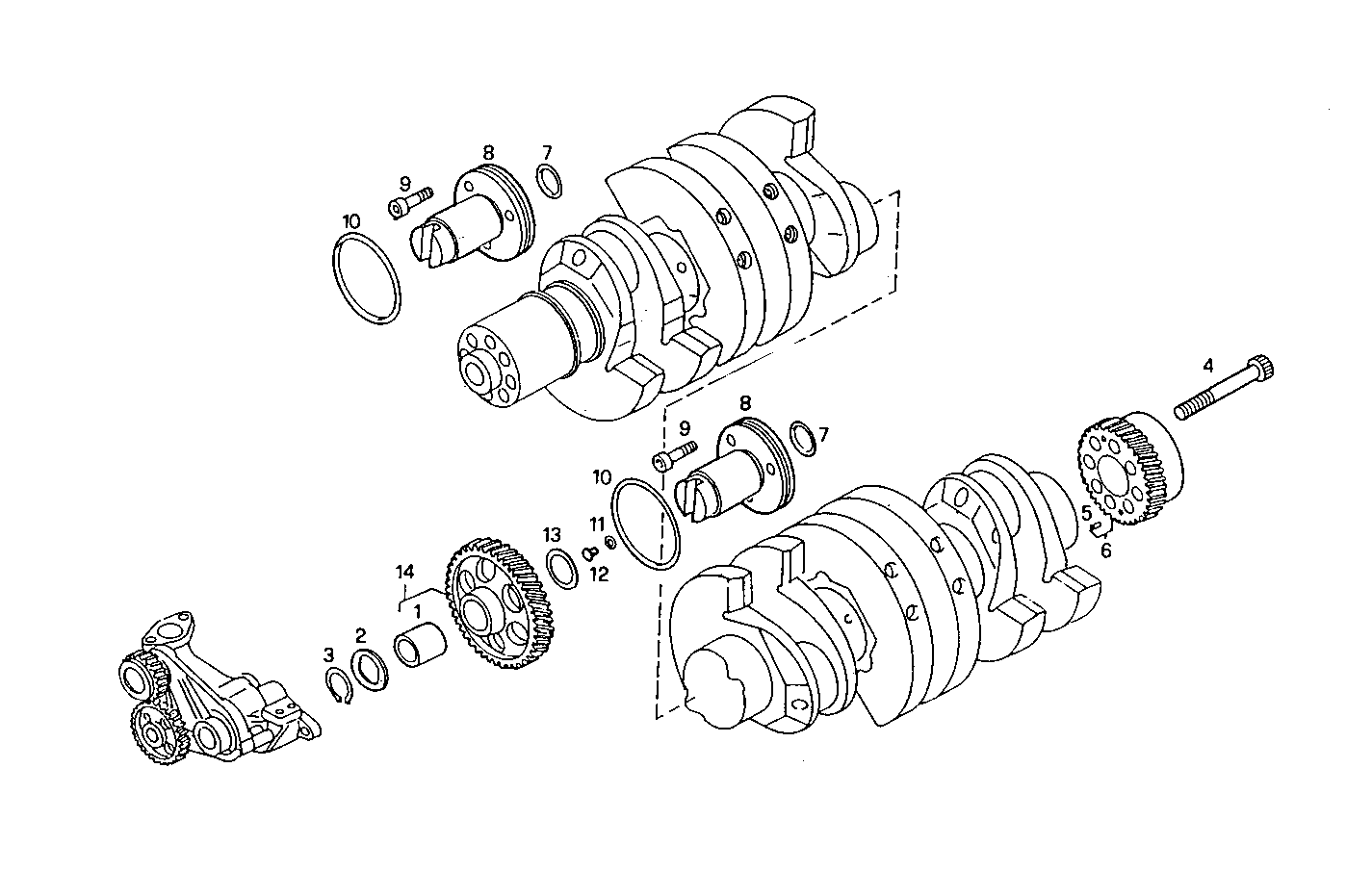

1000.020 GEAR DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4860033 | BUSH |
| 2 | 4664498 | VENT WINDOW FRAME RIGHT |
| 3 | 16867876 | CIRCLIP Ø45,8X2 MM |
| 4 | 14359424 | SCREW |
| 5 | 14606170 | PIN |
| 6 | 4828908 | GEAR ASSY |
| 7 | 17282681 | O-RING SP=2,62 MM |
| 8 | 4787028 | PIN |
| 9 | 14307431 | SCREW |
| 10 | 17291281 | O-RING Ø94,84 MM SP=3,53 MM |
| 11 | 4858606 | GASKET Ø10X14X1 MM |
| 12 | 11903111 | LOCK PLUG M10X1,25 |
| 13 | 4809425 | WASHER Ø50 MM |
| 14 | 4817432 | GEAR ASSY |
