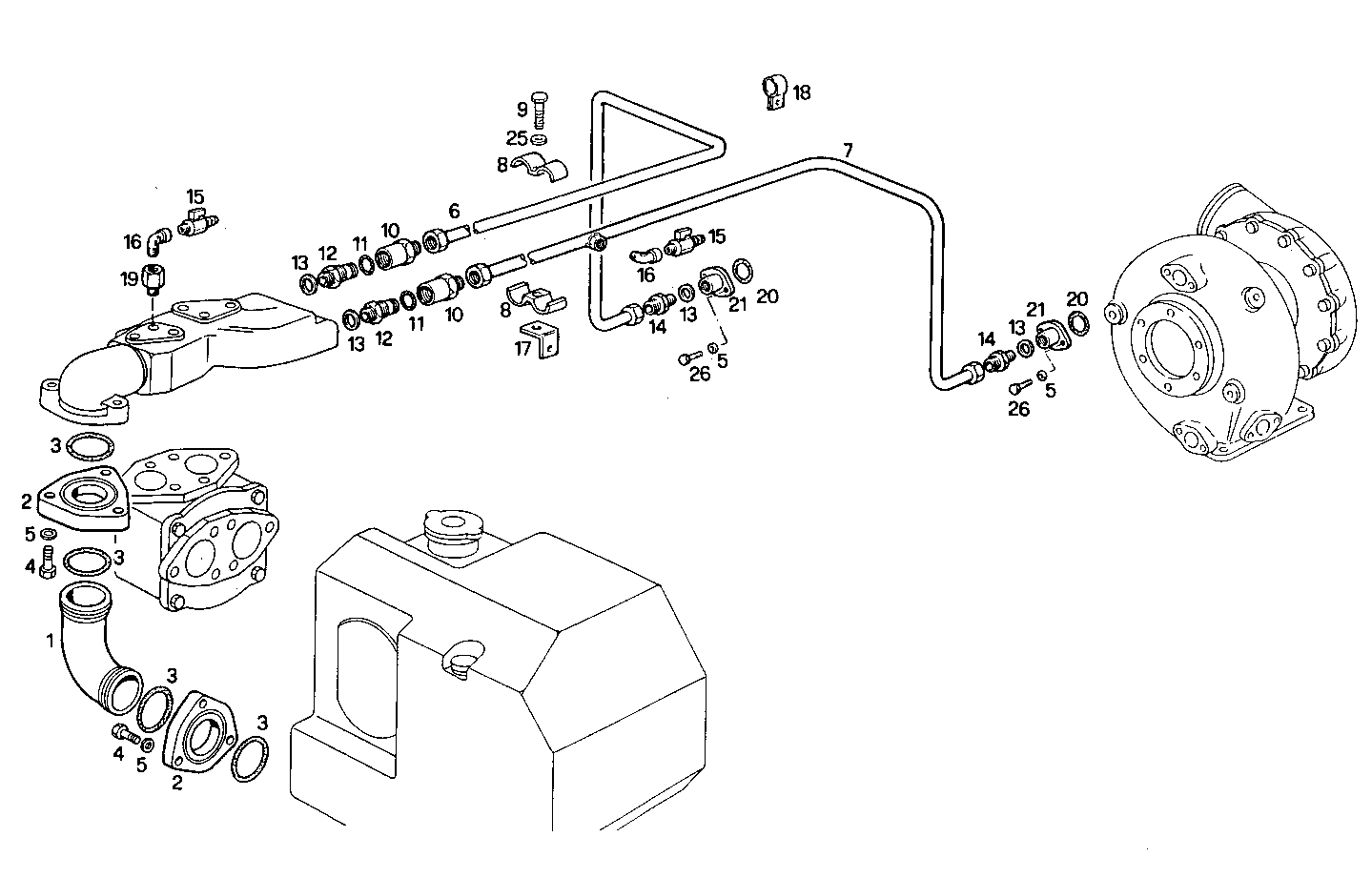

| Item |
Part number |
Description |
|
1 |
8009253 |
WATER PIPE |
|
2 |
8009252 |
FLANGE |
|
3 |
17285381 |
O-RING |
|
4 |
16608024 |
HEXAGON BOLT M10X1,25X45 MM |
|
5 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
6 |
8016266 |
WATER PIPE |
|
7 |
8017610 |
WATER PIPE |
|
8 |
8008215 |
CLAMP |
|
9 |
16607624 |
SCREW M10X25 |
|
10 |
8007521 |
PIPE SOCKET |
|
11 |
17282181 |
O-RING Ø21,8 MM SP=2,6 MM |
|
12 |
8007520 |
PIPE SOCKET |
|
13 |
98429282 |
SEAL GASKET Ø26X33 MM SP=1,5 MM |
|
14 |
8110943 |
PIPE SOCKET M30X1,5/M25X1,5 |
|
15 |
8113932 |
DRAIN COCK |
|
16 |
8005303 |
PIPE SOCKET M16X1,5 |
|
17 |
8011456 |
PIPE SOCKET |
|
18 |
8010597 |
RETAINER |
|
19 |
8009273 |
PIPE SOCKET |
|
20 |
17279381 |
O-RING Ø31,47X1,78 MM |
|
21 |
8016279 |
FLANGE |
|
25 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
26 |
16690424 |
CYLIND-HEAD SCREW M8X1,25X16 MM |
