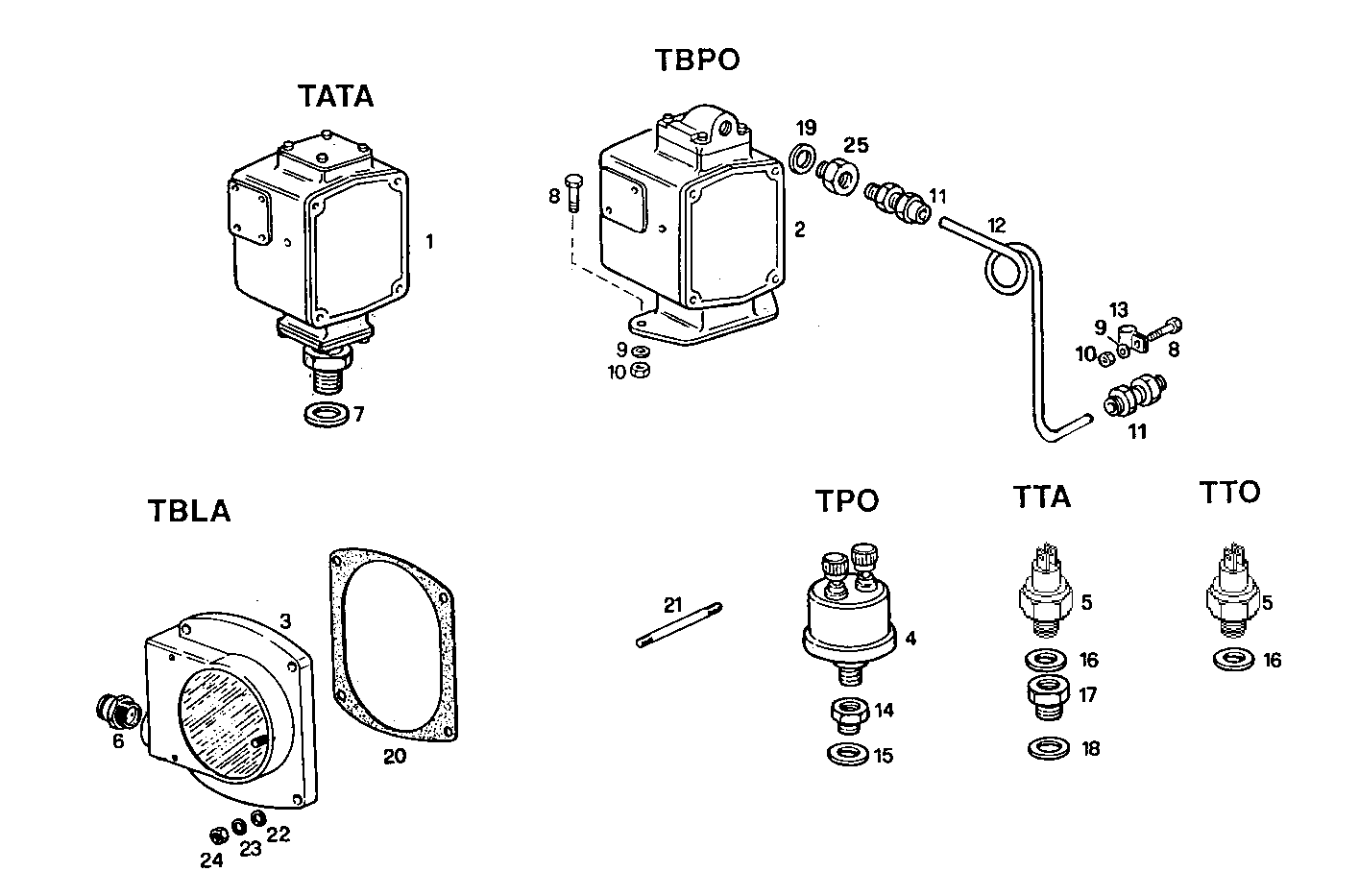

| Item |
Part number |
Description |
|
1 |
8110742 |
TRANSMITTER |
|
2 |
8110741 |
TRANSMITTER TBPO |
|
3 |
8111117 |
TRANSMITTER |
|
4 |
8100417 |
TRANSMITTER TPO |
|
5 |
8100418 |
TRANSMITTER TTA |
|
6 |
8113194 |
CONNECTION [up to 08-94] |
|
7 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
8 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
9 |
17088474 |
WASHER Ø6X12 MM |
|
10 |
17037821 |
HEXAGON NUT M6X1 |
|
11 |
8111316 |
PIPE SOCKET |
|
12 |
8011219 |
OIL LINE |
|
13 |
17310201 |
RETAINER |
|
14 |
8011514 |
THREADED UNION |
|
15 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
16 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
17 |
4927760 |
PIPE SOCKET M22X1,5 |
|
18 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
19 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
20 |
8014440 |
GASKET |
|
21 |
8014441 |
STUD |
|
22 |
17094504 |
WASHER Ø5,3X10 MM |
|
23 |
17101334 |
SPRING WASHER Ø5 MM |
|
24 |
17037721 |
NUT M5X0,8 |
|
25 |
8005420 |
PIPE SOCKET M12x1,5 - M10x1 |
