8291SRM75.32A003

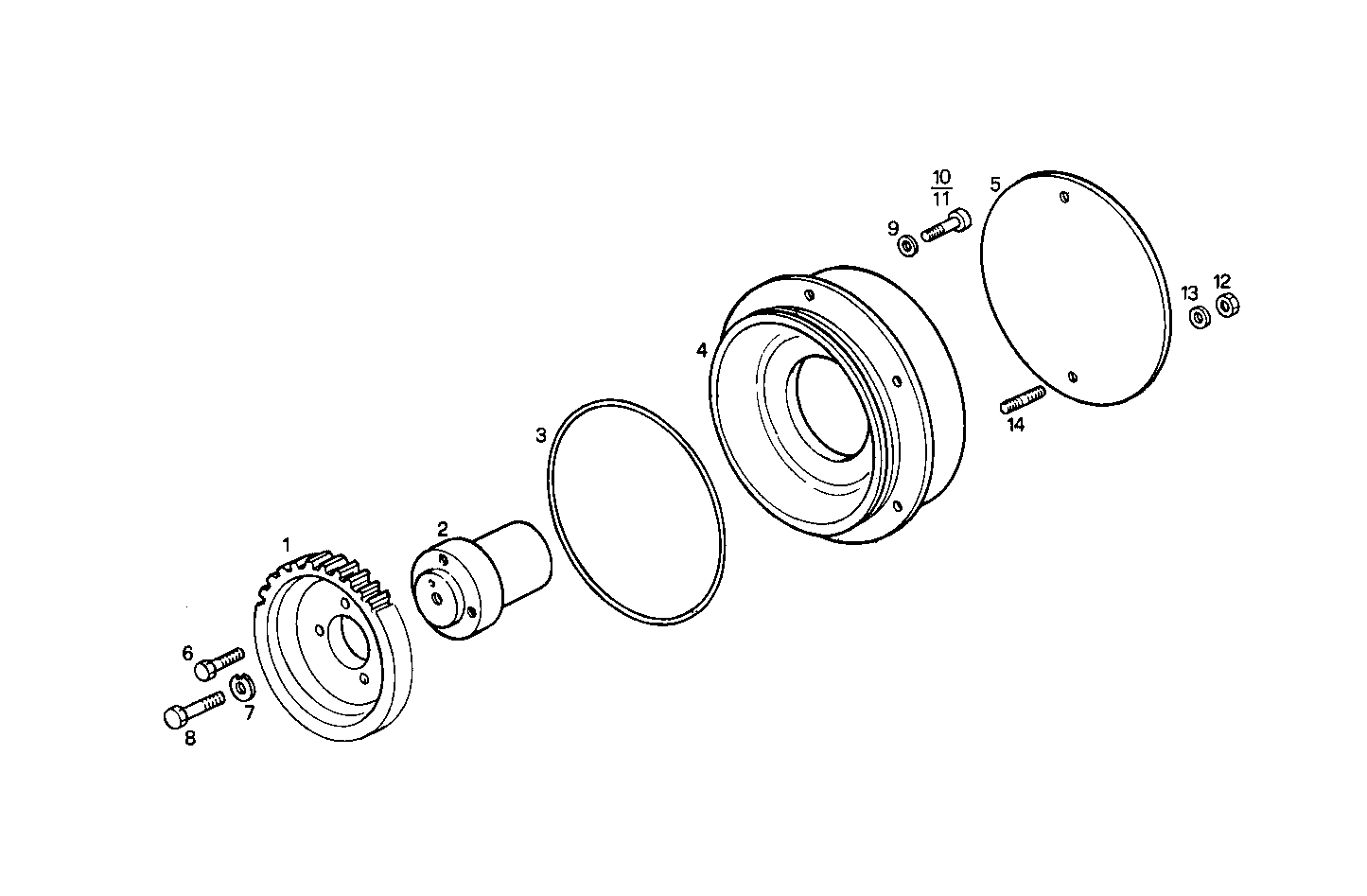

A09130001/01 PREARRANGEMENT DRIVE HYDRAULIC PUMP BRUENINGHAUS
| Item | Part number | Description |
|---|---|---|
| 1 | 8012811 | GEAR |
| 2 | 8017435 | HUB |
| 3 | 17293081 | O-RING Ø152,00X3,53 MM |
| 4 | 8017434 | SUPPORT |
| 5 | 8017537 | COVER |
| 6 | 17455223 | SCREW |
| 7 | 8017540 | WASHER |
| 8 | 17455234 | HEXAGON BOLT M8X30 MM |
| 9 | 17095004 | WASHER Ø10X18X2 MM |
| 10 | 16992224 | SCREW |
| 11 | 16992824 | SCREW |
| 12 | 17038421 | HEXAGON NUT M12 (8) |
| 13 | 17091074 | WASHER Ø12X24X2,8 MM |
| 14 | 16760524 | STUD M12X30 |
