8291SRM75.32A003

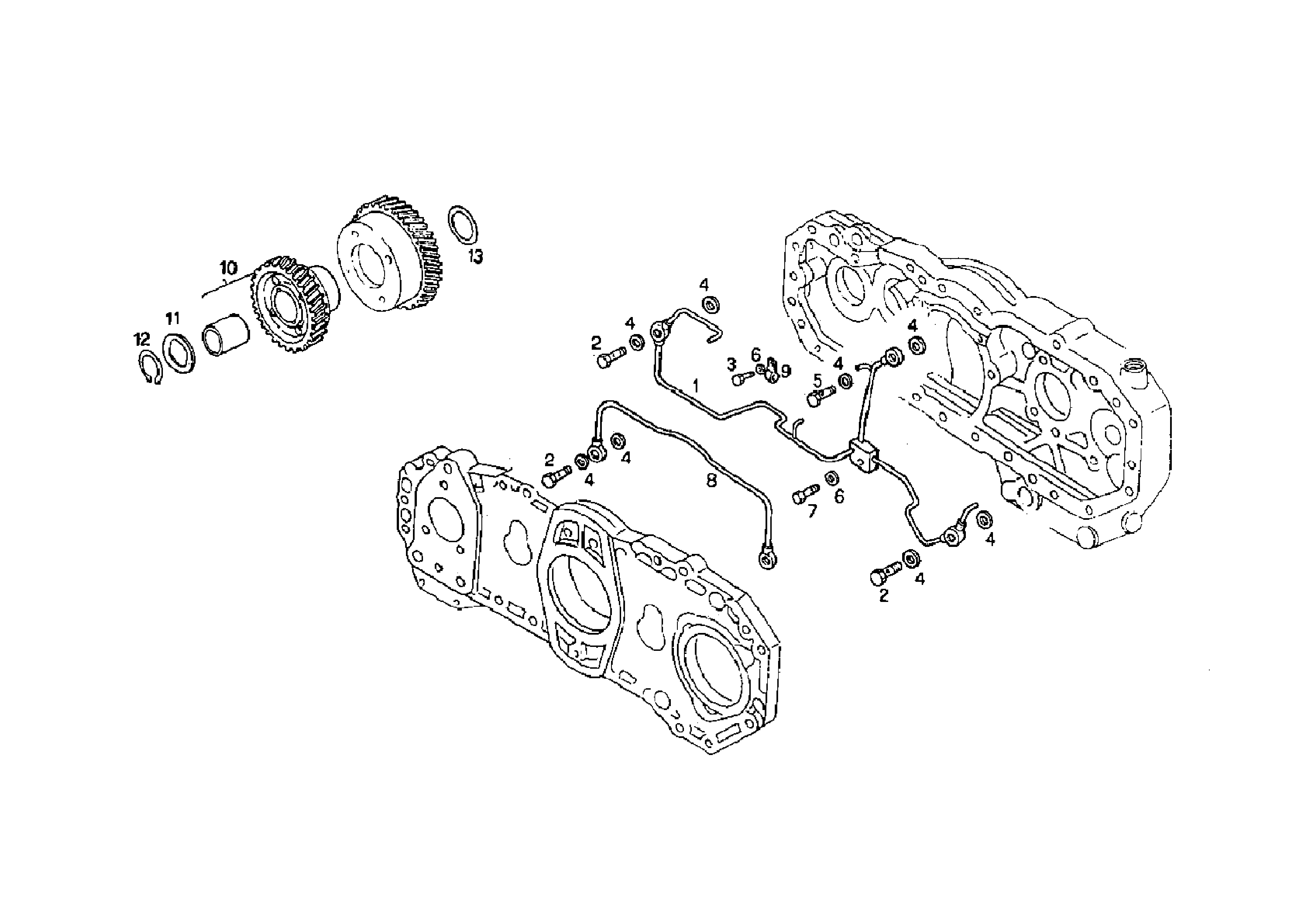

A09130001/02 PREARRANGEMENT DRIVE HYDRAULIC PUMP BRUENINGHAUS
| Item | Part number | Description |
|---|---|---|
| 1 | 8012850 | OIL LINE |
| 2 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 3 | 16603524 | SCREW M6X12 MM (8.8) |
| 4 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 5 | 4795453 | SCREW CONNECTOR |
| 6 | 17094714 | WASHER Ø6,4X12 MM |
| 7 | 16603824 | SCREW M6X25 |
| 8 | 8012847 | OIL LINE |
| 9 | 4791489 | CLIP |
| 10 | 8012722 | GEAR ASSY |
| 11 | 4667498 | WASHER |
| 12 | 16867876 | CIRCLIP Ø45,8X2 MM |
| 13 | 4809425 | WASHER Ø50 MM |
